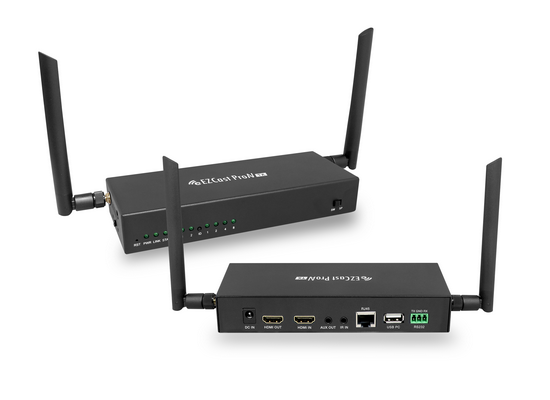

NimbleTech EZCast ProAV Wireless Receiver

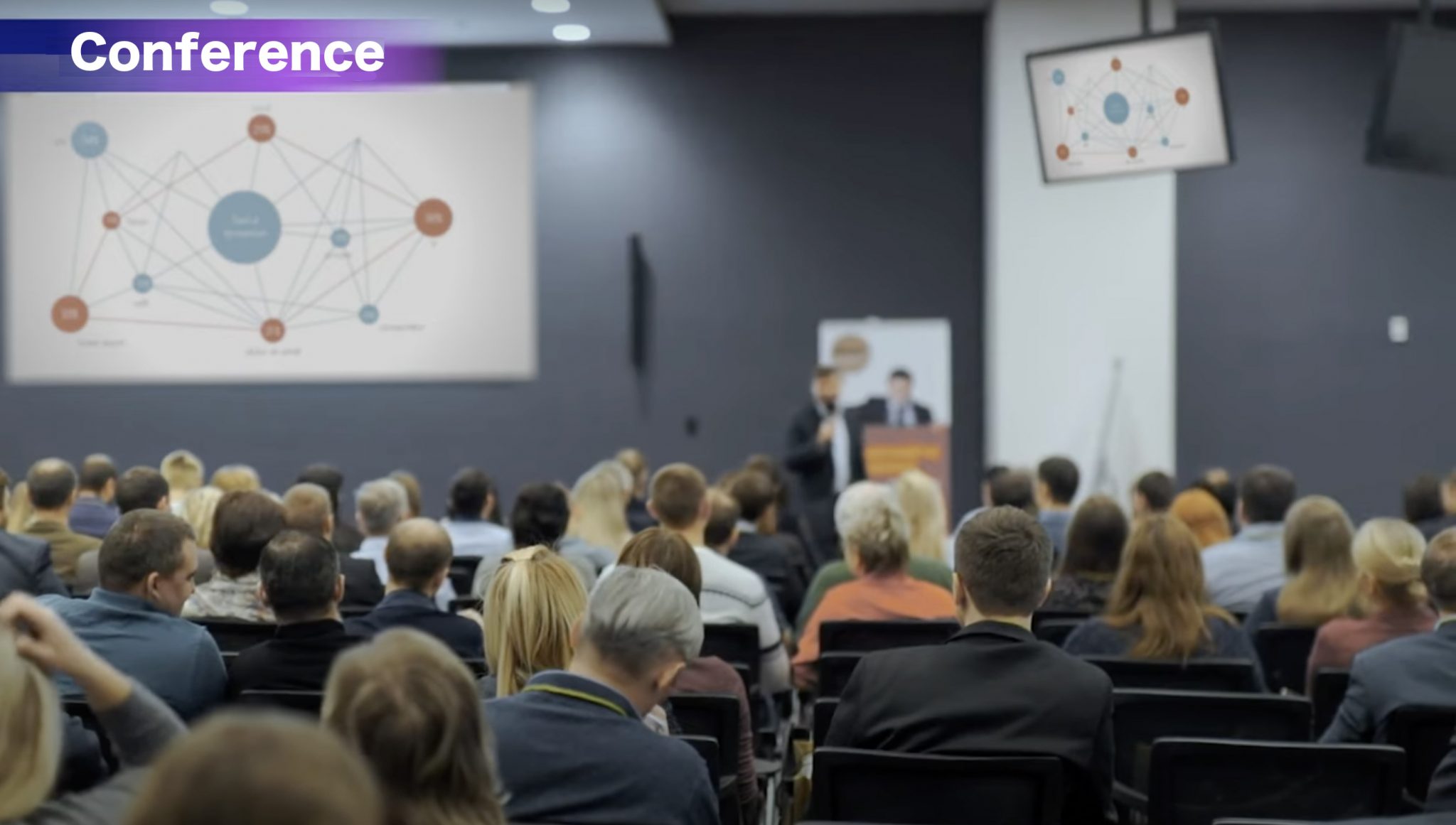

The NimbleTech EZCast ProAV WR02 wireless receiver transmits the AV signal between the WT02 transmitter and a monitor or TV. Each individual monitor or TV in the installation requires its own WR02 receiver. The receiver uses 5 GHz Wi-Fi, offers HDMI 1.4 output up to 4K at 30 fps, and is suitable for conference rooms, trade shows, exhibitions, and digital signage.

EZCast ProAV supports up to 255 smart channels. The integrated KVM simplifies work for IT and server rooms without the need for an additional adapter; when connected via RJ-45, CMS and iKVM can be used from the receiver’s endpoint for monitoring, installation management, and source display. The WR02 also features a USB Type-A port for KVM, an IR input, a stereo AUX output, and a serial port. The manufacturer specifies AES-128 encryption and WPA2 authentication.

EZCast ProAV WR02

Wireless receiver for AV installations

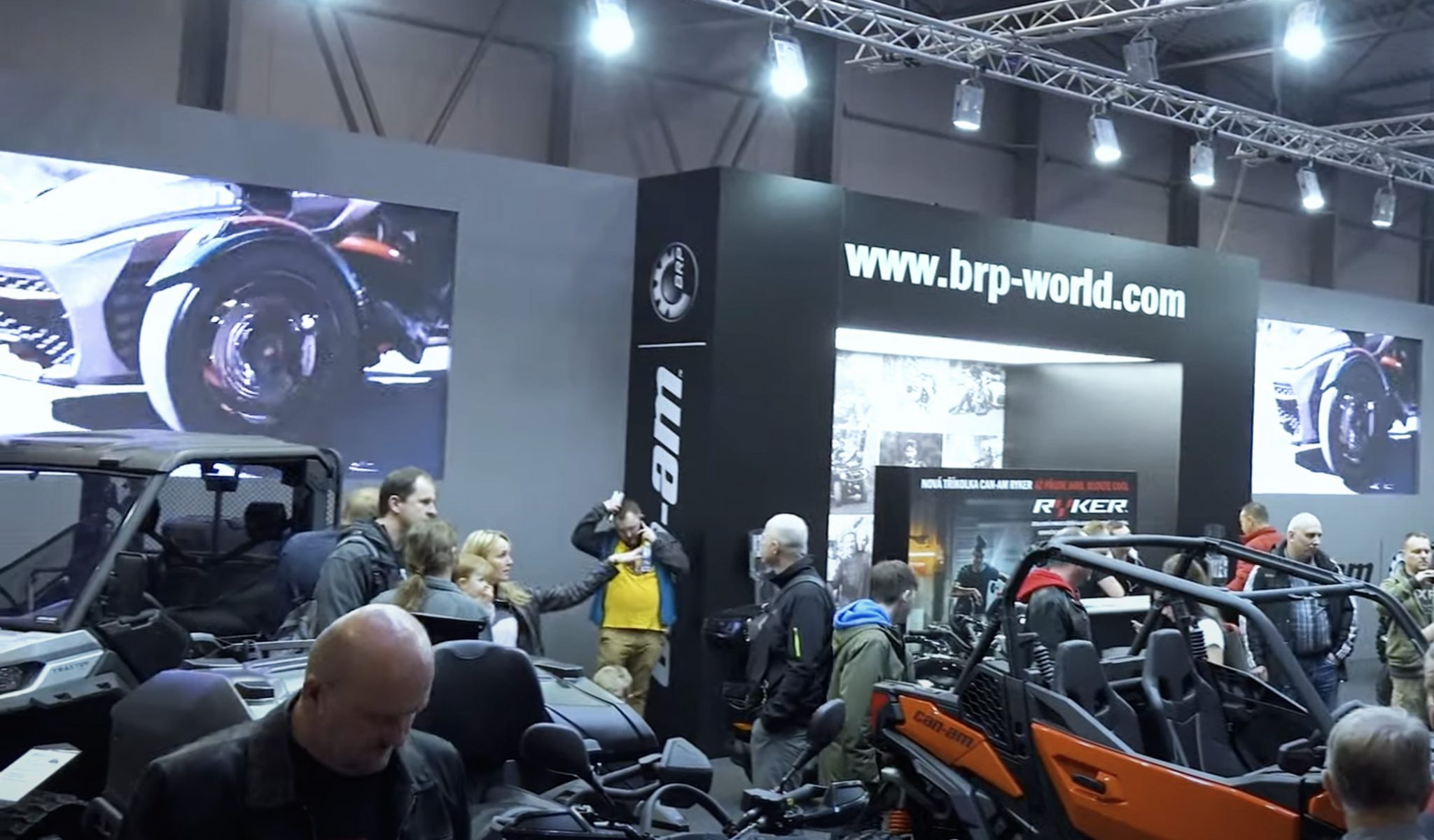

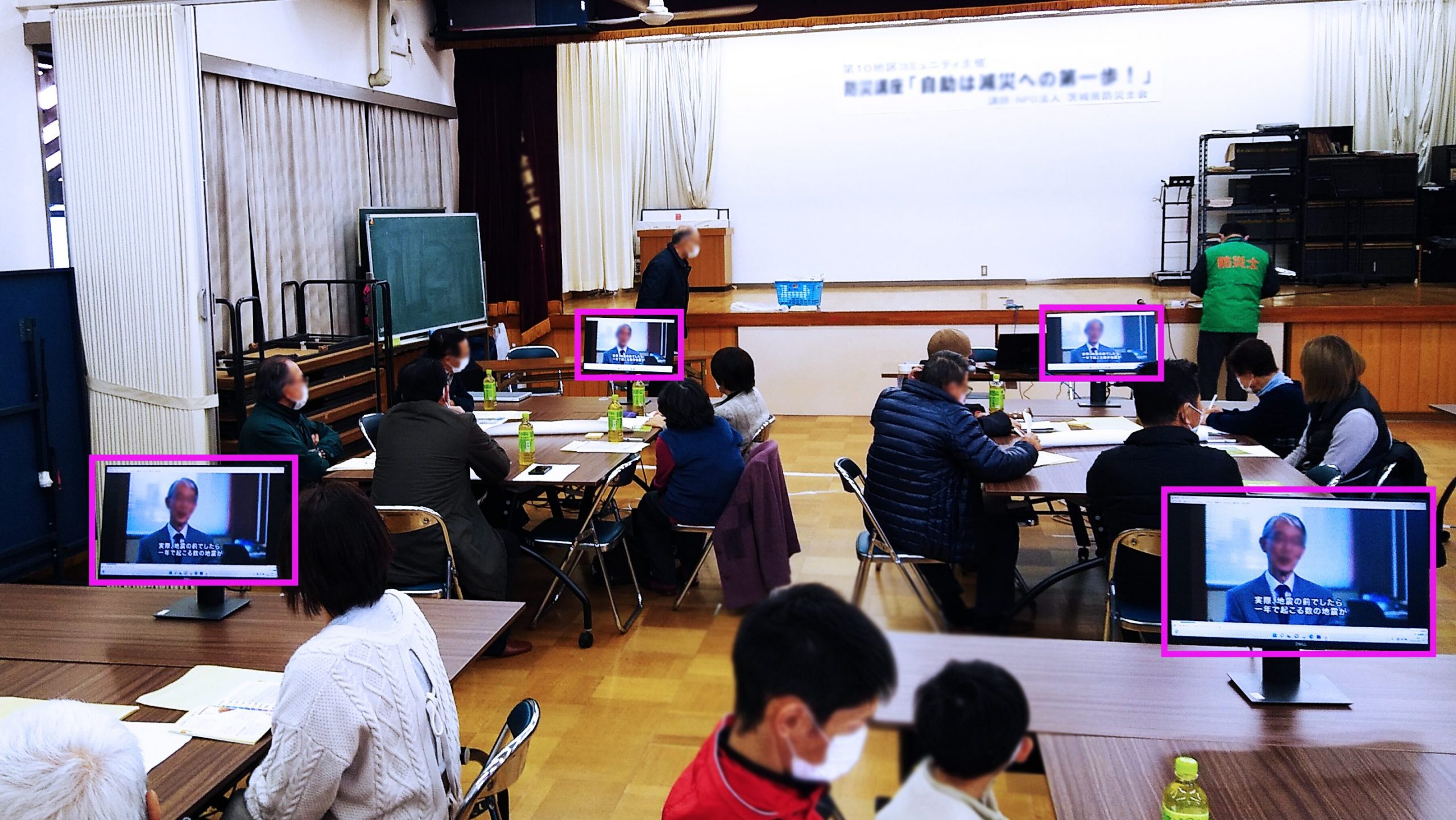

WR02 receives picture and sound from the WT02 transmitter for wireless display on a monitor or TV. The system is designed for flexible AV extension at conferences, exhibitions and similar installations.

Multiple screens and central management

EZCast ProAV supports up to 255 smart channels for switching sources and displays. With RJ-45 connected, CMS and iKVM can be used to monitor and manage the installation remotely.

4K output and KVM workflow

The receiver provides HDMI 1.4 output up to 4K at 30 fps, USB Type-A for KVM use, an IR input, stereo AUX output and a serial port. The manufacturer specifies 5 GHz Wi-Fi, AES-128 encryption and WPA2 authentication.
