NimbleTech EZCast ProAV over Ethernet Receiver

SKU: ER02

The NimbleTech EZCast ProAV over Ethernet Receiver ER02 is an AV-over-IP receiver for low-latency video and audio transmission over an Ethernet network. The built-in hardware decoder supports Full HD video at 60 fps; the HDMI 1.4 output offers up to 4K at 30 Hz. When used with a compatible ET02 transmitter, it extends the HDMI signal up to 180 m over a single…

More information

109 € with VAT 90.08 € without VAT
Add to Compare Price history
Availability
on request
SKU:
ER02
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The NimbleTech EZCast ProAV over Ethernet Receiver ER02 is an AV-over-IP receiver for low-latency video and audio transmission over an Ethernet network. The built-in hardware decoder supports Full HD video at 60 fps; the HDMI 1.4 output offers up to 4K at 30 Hz. When used with a compatible ET02 transmitter, it extends the HDMI signal up to 180 m over a single Cat5e/100M Ethernet cable; the installation can utilize an existing L2 switch or router. Each individual monitor or TV requires its own ER02 receiver.

The system offers an extender, a 1:N splitter, an N:1 switch, and an M:N matrix configuration (up to 15 × 15 as specified in the manual), up to 255 Smart Channels, and KVM control via USB. When connected to a network, the ER02 can be managed via a web interface or through CMS for Windows/macOS. The receiver provides USB ports for a keyboard and mouse, an IR input, RS-232, and a stereo AUX output.

EZCast ProAV over Ethernet · ER02

AV-over-IP receiver for scalable distribution

The ER02 connects a display, projector, or audio system to the EZCast ProAV ecosystem. It transmits video, audio, USB, IR, and RS-232 over Ethernet and enables flexible installations ranging from point-to-point extension to matrix routing.

Connect as Needed

  • 1:1 Extender: The ET02 and ER02 can be connected directly via Ethernet.
  • 1:N Splitter: A single source can be distributed to multiple ER02 units via a switch or router.
  • N:1 Switcher and M:N Matrix: You can select the source or routing by changing the channel.
  • Each display requires its own ER02; the system supports up to 255 Smart Channels.

Control and Management

  • USB 2.0 for keyboard and mouse: The KVM controls the computer connected to the ET02.
  • IR input for remote control; RS-232 for device monitoring and control.
  • CMS for Windows/macOS and web-based ER02 configuration when connected to the same network.
  • KVM mode offers lower latency; Fluent mode prioritizes a higher frame rate.

PACKAGE CONTENT

Package Contents

  • ER02 Receiver × 1
  • IR control cable for the receiver × 1
  • Power adapter × 1
  • Support: 1-year send-back warranty through an authorized distributor

SPECIFICATIONS

ER02 Technical Specifications

Processor1 GHz dual-core CPU with hardware video decoding
OutputHDMI 1.4 with HDCP 1.4 and automatic EDID passthrough; up to 3840 × 2160 at 30 Hz or 4096 × 2160 at 30 Hz
NetworkGigabit Ethernet 802.3ab 1000BASE-T; Cat5e or better recommended for 4K

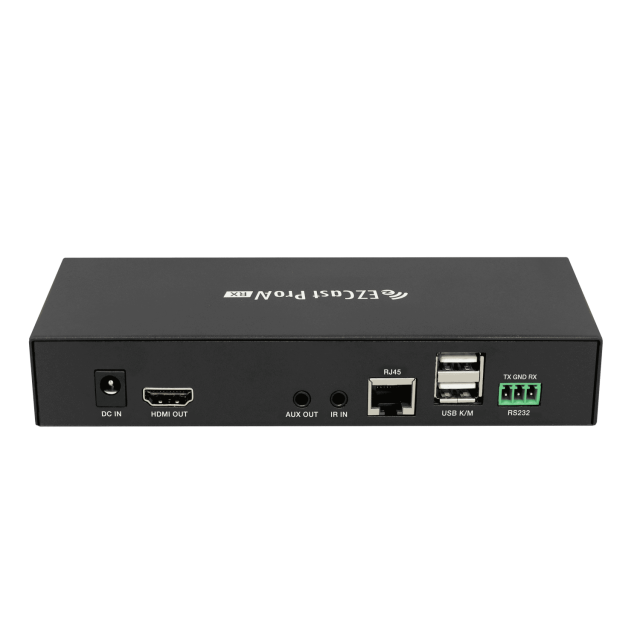

InterfacesHDMI out, USB 2.0 Type-A × 2, DC-in, AUX out, IR-in, RJ-45, RS-232
AudioStereo audio over IP; the AUX out can play audio from the HDMI or AUX input on the ET02 depending on the selected connection

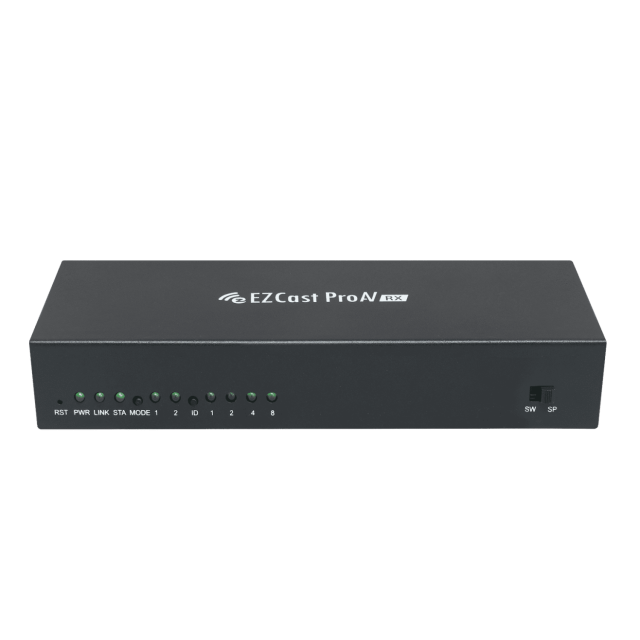

Controls and LEDsMode, Channel ID, Device Mode (switch/splitter), reset; Power, Link, Status, Mode, and ID indicators
Power / Power ConsumptionDC 12 V / 1 A; 12 W
TemperatureOperating: 0 to 40 °C; Storage: −20 to 70 °C
Dimensions / Weight170 × 65 × 28 mm; approximately 290 g, according to the authorized distributor
Latency0.06–0.10 s depending on operating mode; the ET02/ER02 specification lists 40–80 ms over Ethernet, depending on the network environment
Parameters

Parameters

Manufacturer: NimbleTech
Category: Wireless video transmission
