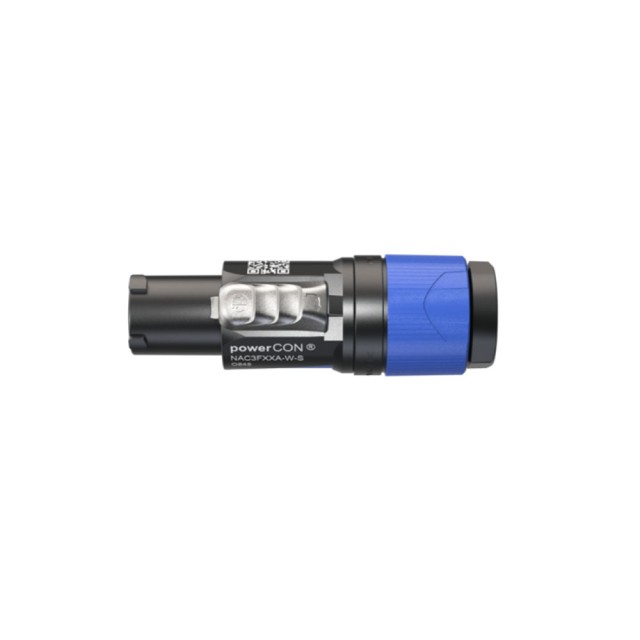

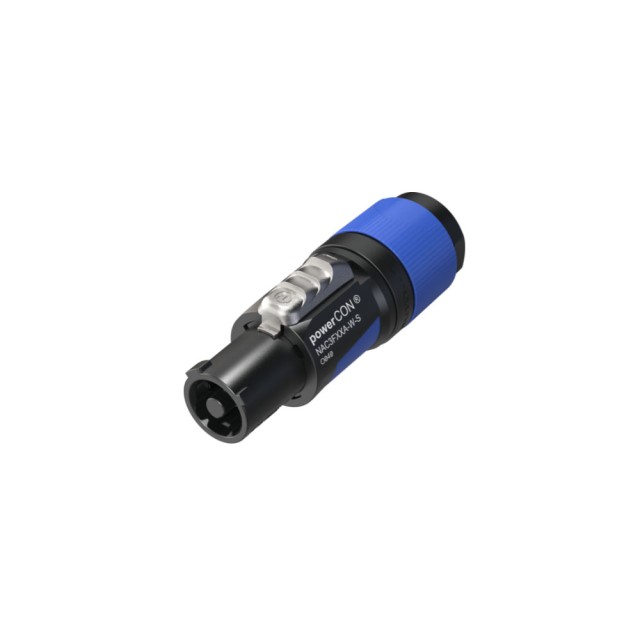

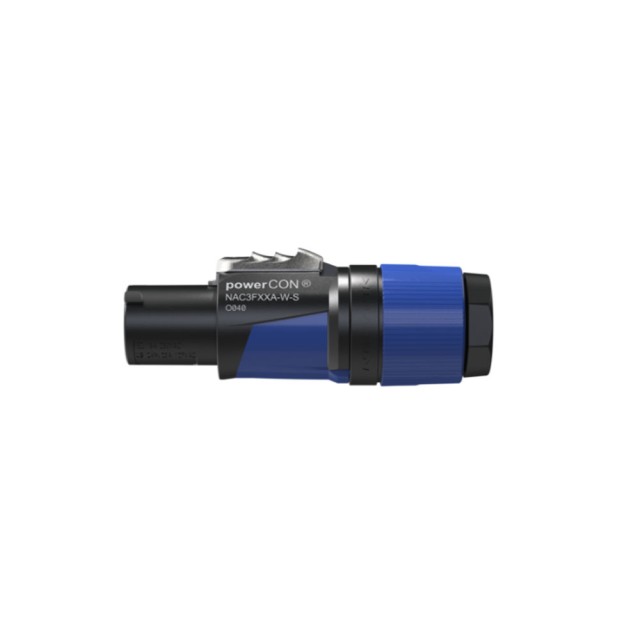

Neutrik NAC3FXXA-W-S

Locking AC mains cable connector, keyed and color coded (blue) for power-in, screw terminal assembly, for cable diameters 6 - 12 mm

More information

Call us for pricing information
Availability
Shipment day: 24. 07.
To be sent > 5 pcs
Bratislava > 5 pcs
Product description

Product description

Locking AC mains cable connector, keyed and color coded (blue) for power-in, screw terminal assembly, for cable diameters 6 - 12 mm

IEC EN 60320-1 compliant | Accepted for cord sets as per IEC EN 60799:2021

The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.

Features & Benefits

  • IEC EN 60320-1 / UL 60320-1 / CSA  C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
  • Ergonomic design with slip-proof two-component molded housing
  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Easy and reliable twist lock system Improved kink protection by two-component bushing

Technical Information
Product
Title - NAC3FXXA-W-S
Connector series - powerCON blue/grey
Electrical
Contact resistance - ≤ 2 mΩ
Dielectric strength - > 3 kVac (after mating cycles)
Insulation resistance - > 10 GΩ (initially)
Number of electrical contacts - 2 + PE
Rating Europe - EN 60320-1: 16 A 250 V AC, CBC
Rating USA / Canada - cUL 60320-1: 20 A 127 V AC, CBC
Mechanical
Cable O.D. - 6 - 12 mm
Lifetime - Typically 5’000 mating cycles
Wiresize (mm²) - 1.5 – 2.5 mm²
Wiresize (AWG) - 16 – 12 AWG
Locking device - Twist lock
Termination - Screw type terminals
Material
Contact plating - Ag
Contacts - Copper Alloy
Insert - Polyamide (PA6.6)
Locking element - Zinc diecast
Shell - Polyamide (PA6) / TPE
Strain relief - Polyketone
Bushing - Polypropylene / TPE
Environmental
Temperature range - -33 °C to +80 °C
Protection class - IP20
Flammability acc. to UL94 - V-0

Parameters

Parameters

Manufacturer: Neutrik
Category: Power connectors

Main parameters

TypepowerCON

Other parameters

VersionOn the cable
VersionFemales
