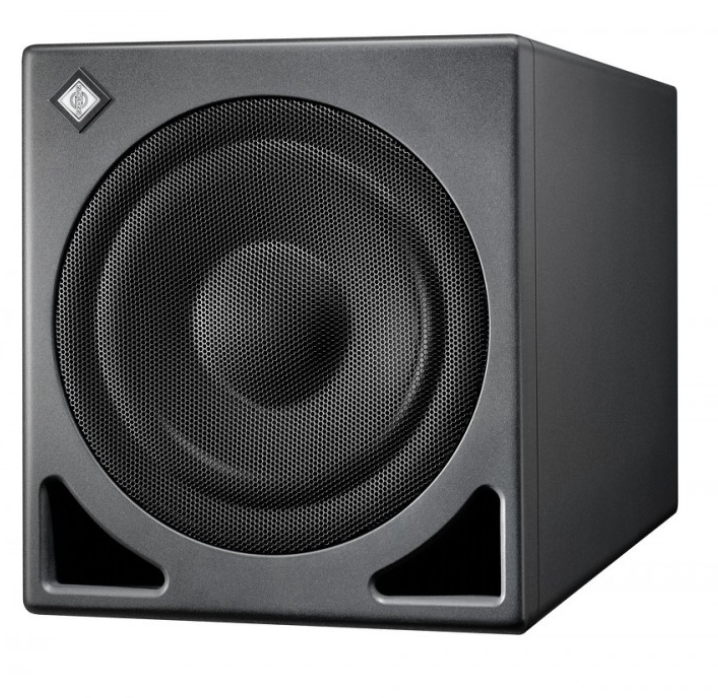

Neumann KH 810 II

The Neumann KH 810 II is a next-generation DSP-controlled reference studio subwoofer designed for stereo, surround, and immersive audio monitoring systems up to 7.1.4. Featuring a newly developed 10-inch ELFF™ woofer, advanced bass management, MA 1 calibration compatibility, and support for analog, AES3, and optional AES67 networking, it delivers exceptionally deep, accurate, and low-distortion bass for modern professional studios.

The Neumann KH 810 II represents the latest evolution in professional low-frequency monitoring, engineered to meet the increasing demands of modern music production, post-production, broadcast, and immersive audio environments. Building upon the success of the original KH 810, this next-generation active subwoofer introduces powerful DSP processing, expanded connectivity, advanced calibration capabilities, and support for sophisticated monitoring configurations up to 7.1.4.

At the heart of the KH 810 II is a newly developed 10-inch long-throw woofer utilizing Neumann's innovative ELFF™ (Extremely Linear Force Factor) technology. This advanced driver design minimizes distortion even at high output levels, delivering exceptional bass accuracy, transient response, and low-frequency extension down to 16 Hz (-6 dB). The result is precise and reliable low-end reproduction for critical monitoring applications.

Unlike its fully analog predecessor, the KH 810 II incorporates comprehensive DSP control for crossover management, phase optimization, limiting, and room integration. Its advanced bass management system supports stereo, surround, and immersive audio formats including Dolby Atmos, Auro-3D, and MPEG-H Audio. With support for monitoring systems up to 7.1.4, the subwoofer serves as a powerful centerpiece for modern production facilities.

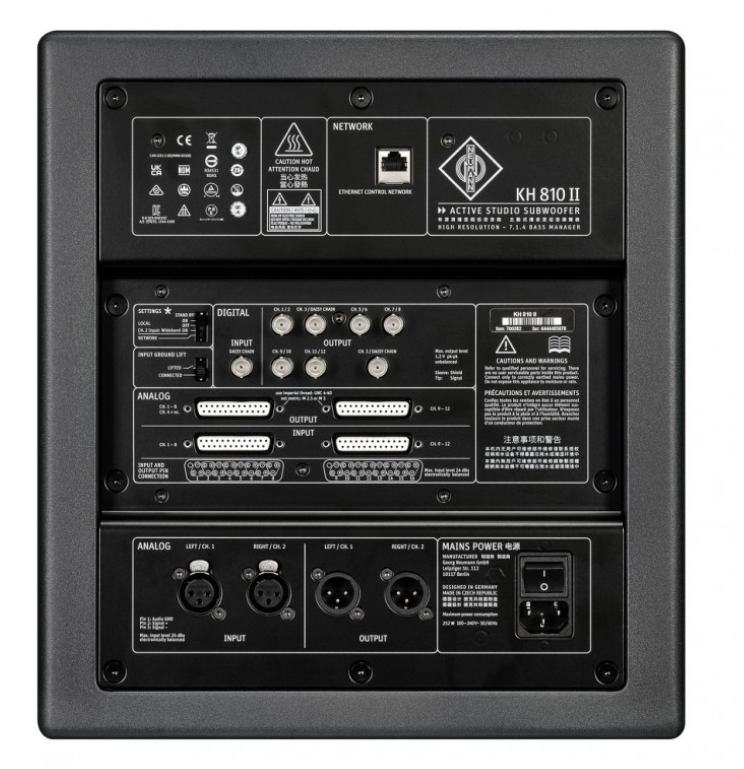

The KH 810 II offers extensive connectivity, including up to 12 analog inputs and 11 outputs, AES3 digital outputs via BNC connectors, and optional AES67 network integration for seamless deployment in large-scale studio infrastructures. Full compatibility with the Neumann MA 1 Automatic Monitor Alignment system allows automatic room calibration, optimizing frequency response and phase performance according to the acoustic characteristics of the listening environment.

Housed in a robust wooden enclosure designed for maximum rigidity and acoustic integrity, the KH 810 II can function as a standalone subwoofer for stereo systems or as part of larger surround and immersive monitoring setups. It can also be daisy-chained with additional Neumann subwoofers, including the KH 750 DSP, for even greater system flexibility.

Key Features

• DSP-controlled active studio subwoofer
• Designed for stereo, surround, and immersive audio monitoring
• Supports monitoring systems up to 7.1.4
• New 10-inch long-throw woofer with ELFF™ technology
• Extremely low distortion and accurate bass reproduction
• Frequency response extends down to 16 Hz (-6 dB)
• Advanced DSP crossover, phase control, and limiting
• Compatible with Neumann MA 1 Automatic Monitor Alignment
• Flexible bass management for stereo, surround, and immersive formats
• Supports Dolby Atmos, Auro-3D, and MPEG-H Audio workflows
• Up to 12 analog inputs and 11 outputs
• AES3 digital outputs via BNC
• Optional AES67 network integration
• Daisy-chain capability with additional subwoofers
• Active design requiring no external amplifier
• Low self-noise operation
• Durable wooden cabinet construction
