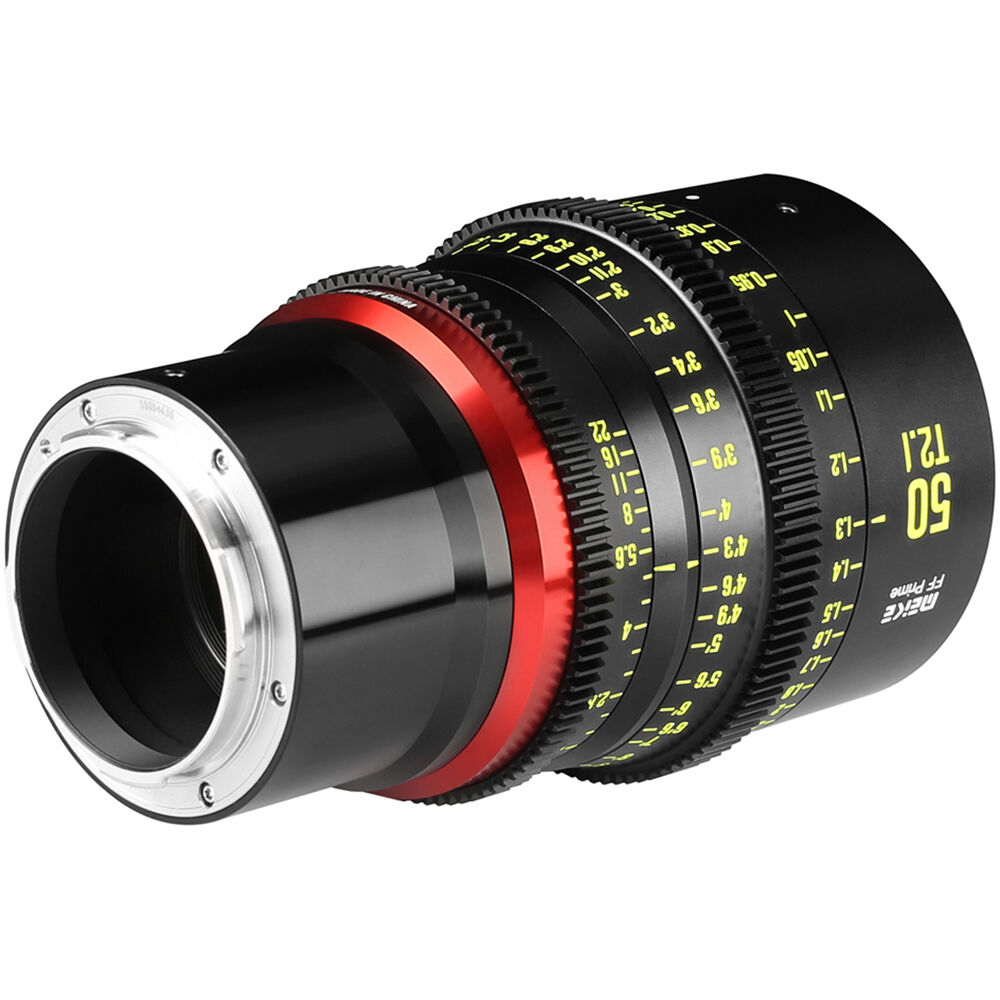

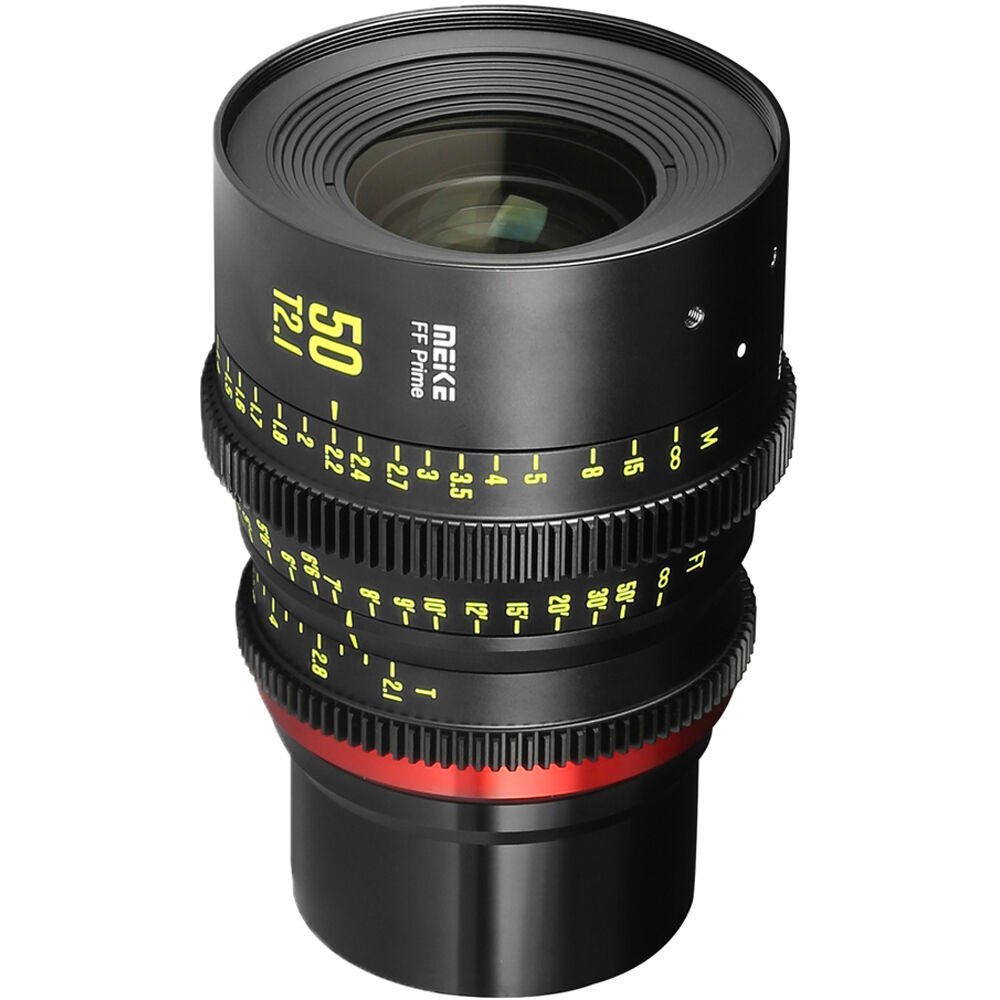

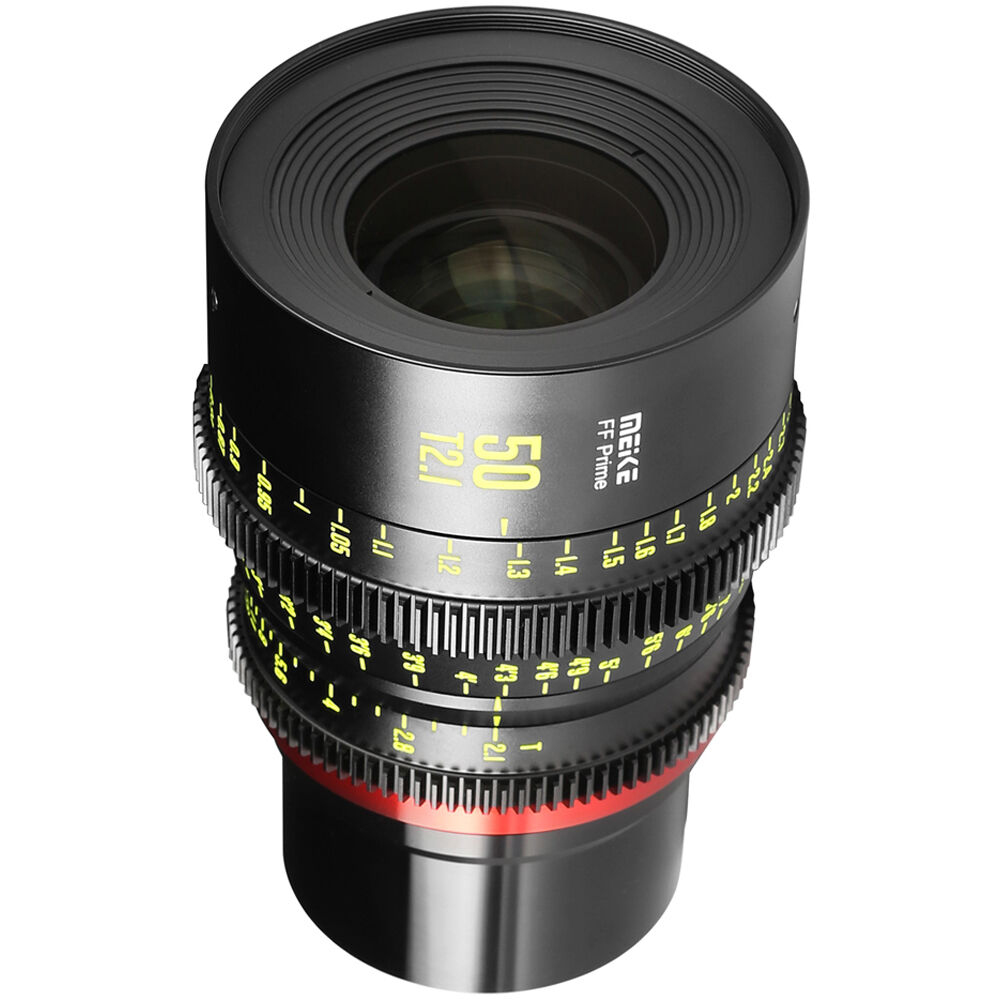

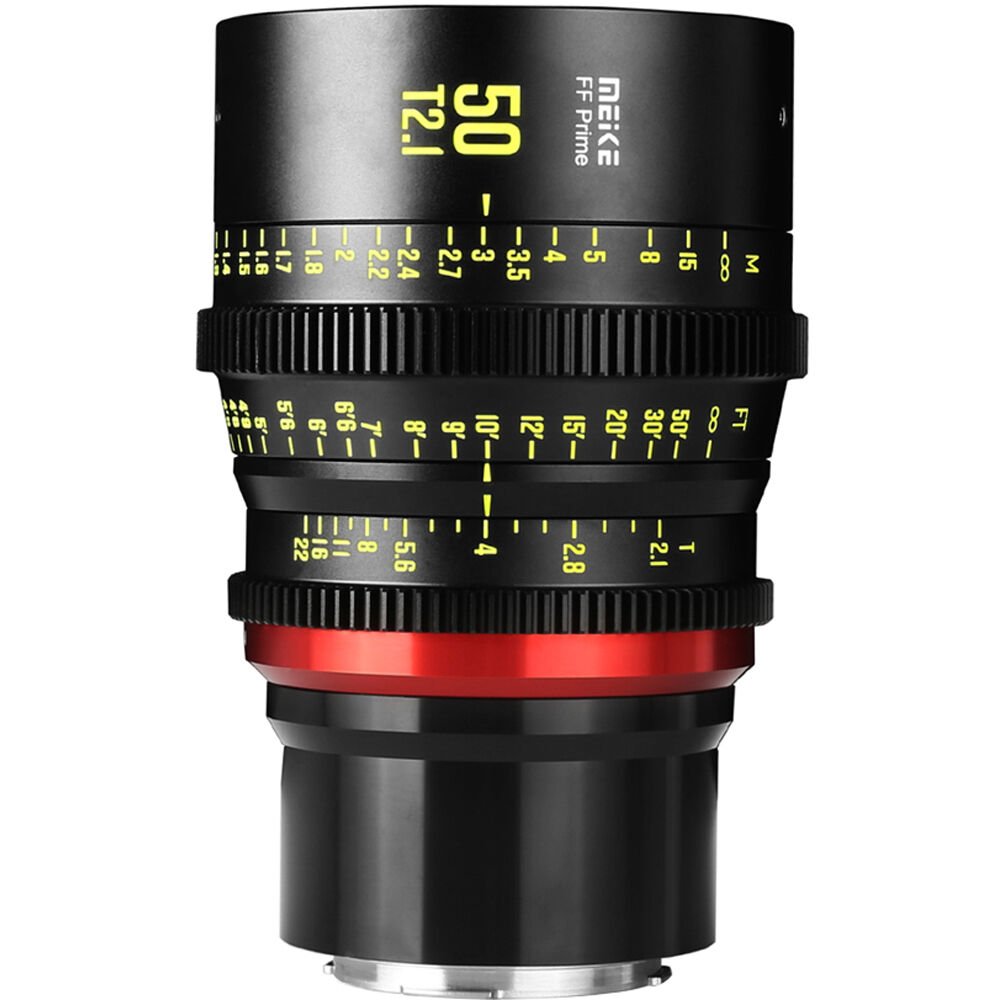

Meike MK-50T2.1 FF-Prime (L Mount)

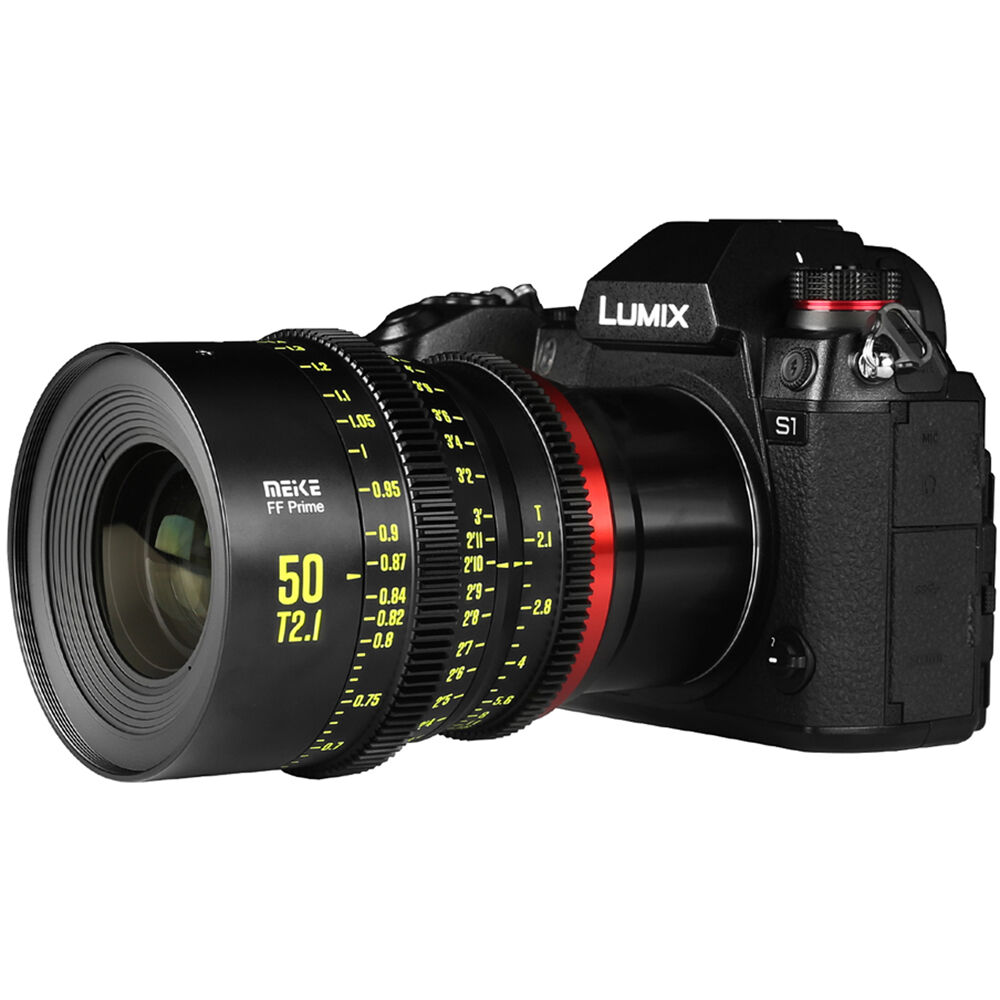

Meike 50mm T2.1 lens from the FF-Prime Cine Series. With an image circle of 45 mm, this lens is compatible with Full Frame cameras, and is available in various lens mounts, including PL/EF/RF/E/L/Z. It has industry-standard 0.8mm pitch gears on the focus and aperture rings. The lens design of the Meike 50mm T2.1 FF-Prime consists of twelve elements in eight groups, and an aperture mechanism consisting of 11 aperture blades. The minimum focusing distance is 60mm. Compatible with Canon C700, Sony VENICE, Alexa LF, Z Cam E2-F6, Mavo LF, all full-frame Sony, Panasonic, Canon, Sigma, and Leica mirrorless camera, all Super 35/ APS-C sensors.

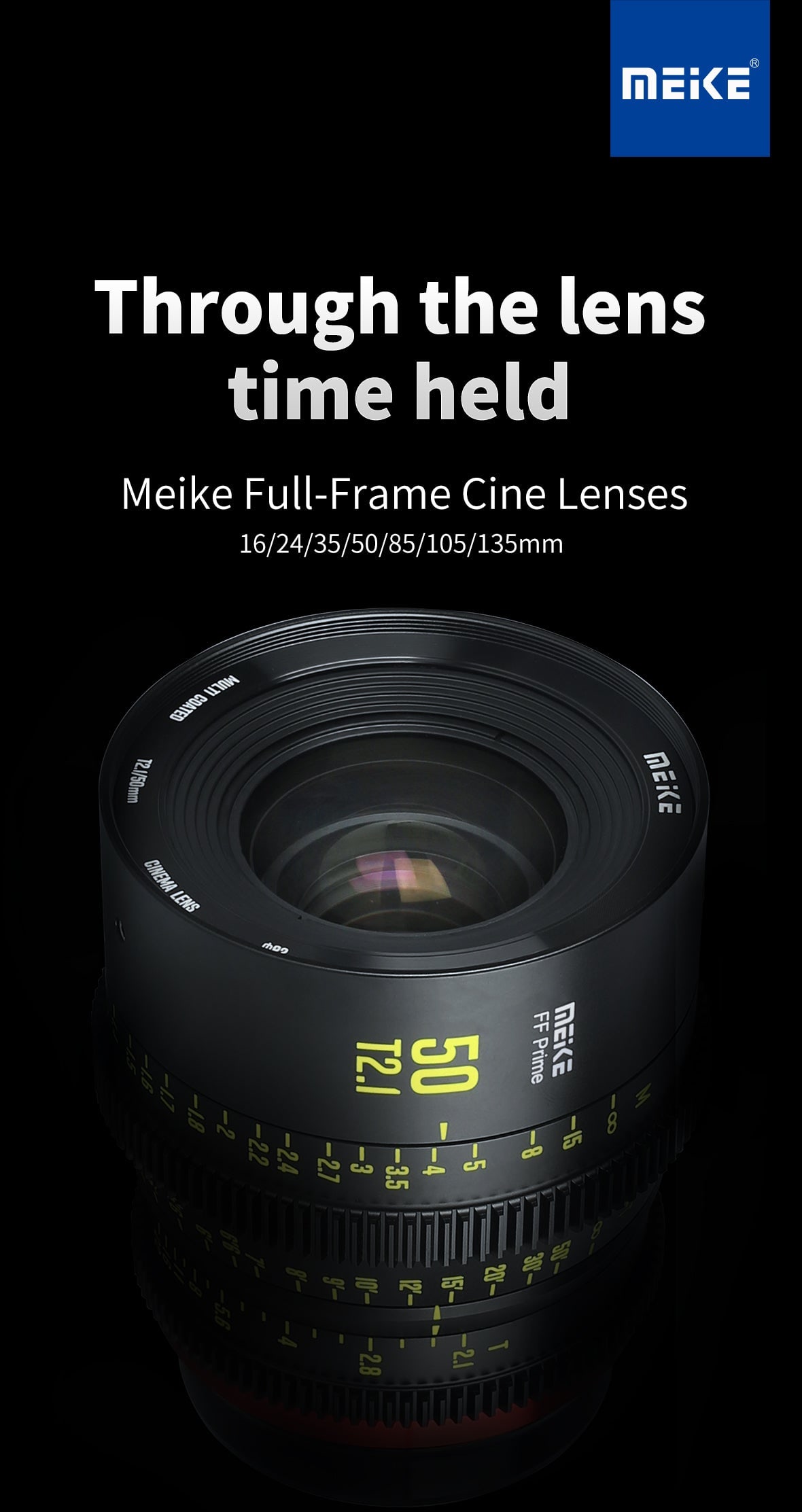

The complete FF-Prime Cine Series set will include 16mm T2.1, 24mm T2.1, 35mm T2.1, 50mm T2.1, 85mm T2.1, 105mm T2.1, and 135mm T2.1.

Specifications
Lens Mount: PL/EF/RF/E/L/Z
Min Focal Dist: 60 cm
Filter Thread: ø82
Structure: 12 Elements in 8 Groups
Focal Length: 50mm
Aperture Range: T2.1-T22
Iris Blades: 11
Gear Mod: M0.8
Focus Rotation: 330 Degree
Dimensions (Ø x L): PL: φ85 × 102.4mm, EF(Canon): φ85 × 110.5mm, RF(Canon): φ85 × 134.4mm, E(Sony): φ85 × 136.4mm, L(Panasonic): φ85 × 134.4mm, Z(Nikon): φ85 × 138.4mm
Weight: 1100g
FOV on FF cameras: Diagonal: 46.4°, Horizontal: 39.1°, Vertical: 26.5°
FOV on APS-C cameras: Diagonal: 29.6°, Horizontal: 24.7°, Vertical: 16.6°

Meike 50 mm T2.1 FF-Prime Cine at a glance

The Meike 50 mm T2.1 FF-Prime Cine is a manual-focus 50 mm prime for full-frame mirrorless cameras. Its T2.1 aperture leaves room to work in poor light and to separate the subject from the background.

Optics and rendering

The optical design uses 12 elements in 8 groups, with a 11-blade diaphragm that keeps out-of-focus highlights round. The aperture runs from T2.1 to T22, and the minimum focusing distance is 0.6 m.

Handling and build

Focus and aperture are set by hand; the lens has no electronic contacts, so the camera must be set to release without a lens. The filter thread is 77 mm and it weighs about 1.09 kg.
