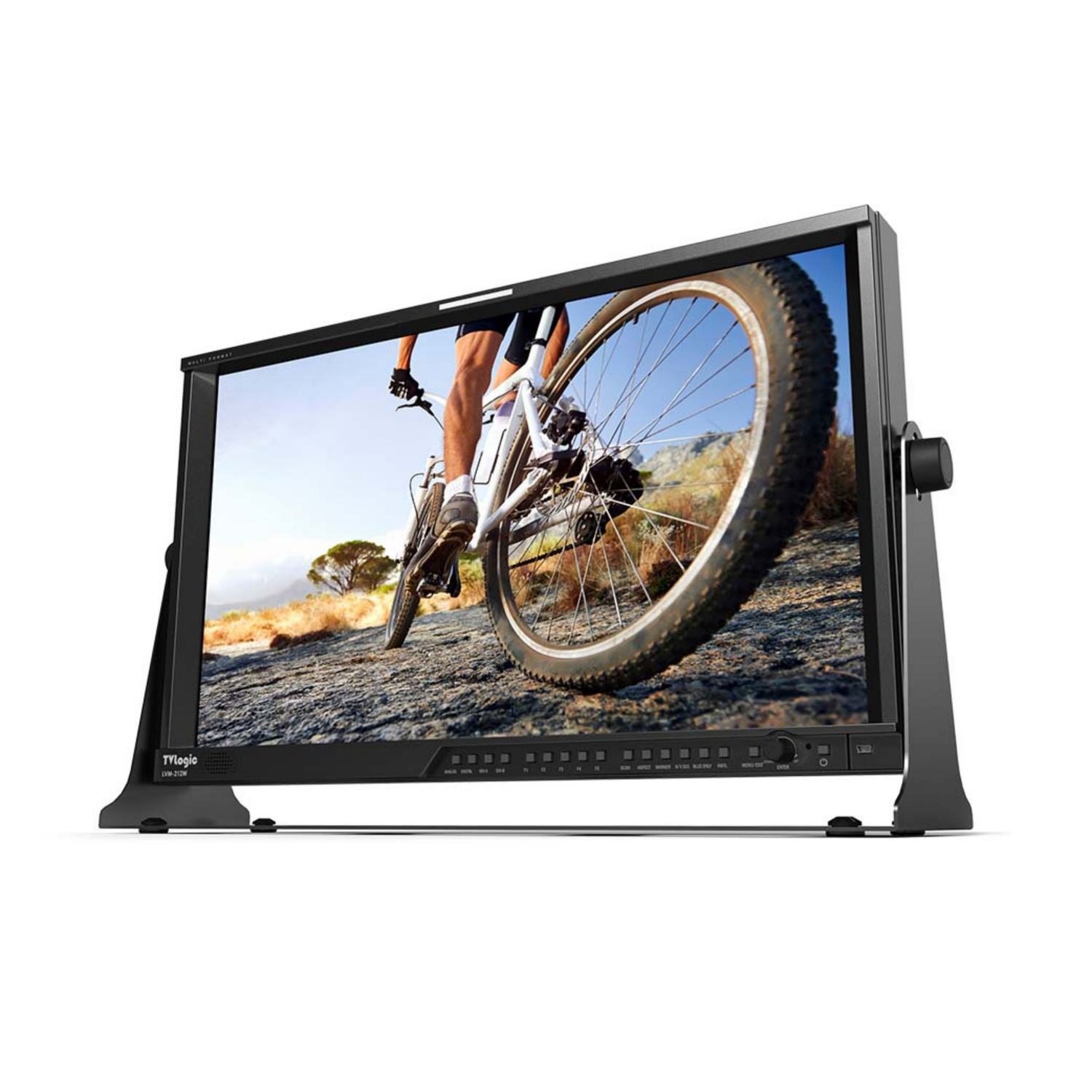

TVLogic LVM-212W 21.5in HD LCD Monitor

  • Free transport
SKU: TVL-LVM-212W

LVM-212W is an ideal rack-mount monitor for video wall in control rooms and OB Vans. Inside the beautiful slim bezel design that just fits into a 19” rack, integrated the wide viewing angle LCD panel with native Full HD resolution and 16.7M colors and TVLogic’s unique video processing technology that enables high picture quality…

More information

3 327.5 € with VAT 2 750 € without VAT
Add to Compare Price history
Availability
14-30 days
SKU:
TVL-LVM-212W
Add to Compare Price history

Top accessories for TVLogic LVM-212W 21.5in HD LCD Monitor

Canare L-2.5CHWS flexibilni 3G/HD-SDI kabel, BNC-BNC 0,5m

Canare L-2.5CHWS is a flexible thin "Low Loss" flexible and durable 75 ohm 4.2 mm
10.29 €
In stock 2 pcs

INFINITEC HDMI TO HDMI ultra thin flixible 4K cable, 50cm

  • Top product
Ultra-thin and flexible HDMI cables for the needs of all creative professionals.
22.46 €
In stock 1 pcs

Canare L-2.5CHWS Flexible 3G/HD-SDI Cable, BNC-BNC 1m

  • 4K / UHD
Canare L-2.5CHWS "Low Loss" flexible and durable 75 ohm 4,2 mm koaxial cable, ideal
11.25 €
In stock > 5 pcs

Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 2m

Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
15.96 €
In stock > 5 pcs

Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 3m

Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
19.56 €
To be sent > 5 pcs

HDMI cable 2.0b UHD 4K High Speed + Ethernet 2,0m

  • 4K / UHD
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
7.74 €
To be sent 4 pcs

TVLogic RMK-212

TVLogic RMK-212 (RMK212) Rack-Mount Kit for LVM-212W Monitor. Rack-mount kit for
272.25 €
14-30 days

TVLogic V-Mount-F7H-C

V-Mount Battery Adapter for F-7H / F-7H mk2 (Cost Effective)
200.58 €
3-5 days

TVLogic V-Mount-17

This V-Mount Battery Plate from TVLogic enables you to power your compatible monitor
338.8 €
on request

Show all accessories

Product description

Product description

LVM-212W is an ideal rack-mount monitor for video wall in control rooms and OB Vans. Inside the beautiful slim bezel design that just fits into a 19” rack, integrated the wide viewing angle LCD panel with native Full HD resolution and 16.7M colors and TVLogic’s unique video processing technology that enables high picture quality 3G-SDI and all the professional features.
Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Analyzes the input signal’s Luma (Y’) and chroma (C’) information. If the input signal exceeds the designated minimum and maximum values, the pixel will blink. This function allows for the user to easily identify any issues with exposure.

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Parameters

Parameters

Manufacturer: TVLogic
Category: Studio Monitors

Main parameters

Size21"
Monitor inputsSDI
Monitor inputs3G-SDI
