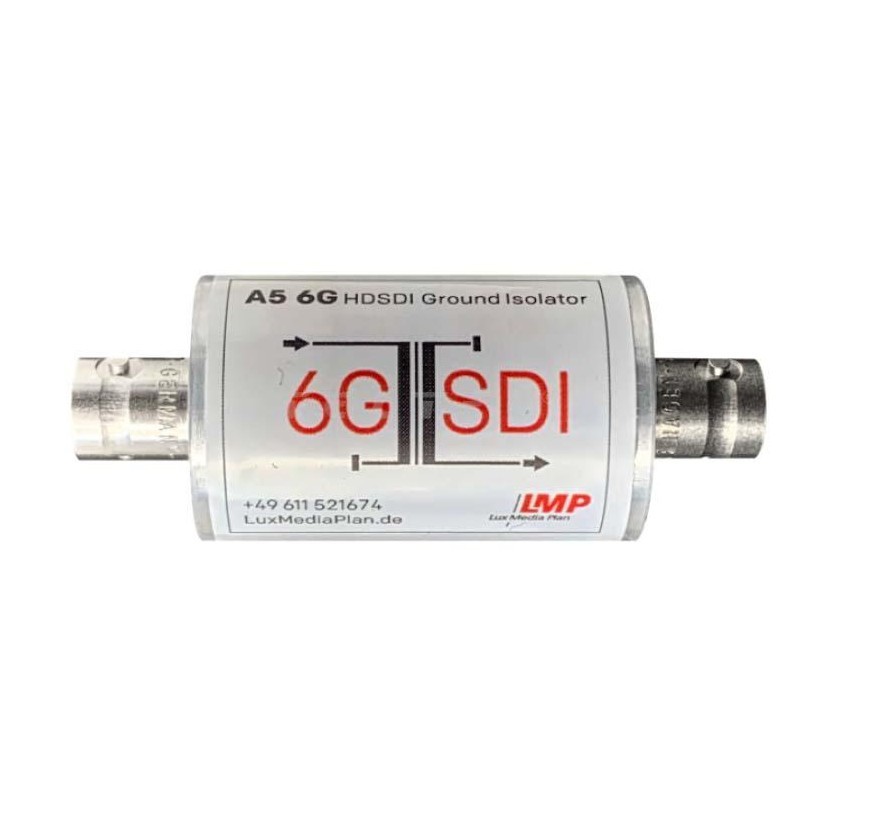

LMP A5 3G / 6G HDSDI Ground Isolator

This simple low cost device has been designed to provide signal isolation of SMPTE 292M compliant signals, eliminating ground loop effects, often associated with fixed and temporary HDTV installations. The A5 family is fitted with BNC connectors at both sides, with a short cable at one end or as a rackmount version.

Features

• incredibly small
• no power supply needed

Technical Specifications

• Signal - SMPTE 259M, SMPTE 292M, SMPTE 424M
• Frequency range - 70 - 3200MHz
• Return loss - >18dB
• Insertion loss - <1,5dB
• Impedance Ratio - 1:1
• DC Isolation - 500V w/ wired transformer

Physical Specifications

• Dimensions - 66x Ø26 mm
• Weight - 40 g
