Lilliput TK-1850/T
SKU: TK-1850/T
The Lilliput TK-1850/T is an 18.5" Full HD industrial touch monitor with 1000 nits brightness, readable in sunlight. It features optical bonding with anti-glare coating, 7H glass hardness, IK07 impact resistance, an IP65/NEMA 4 front panel, 10-point capacitive touch usable with gloves, auto dimming and HDMI, VGA and AV inputs. It mounts in a panel or via VESA…
459 € with VAT
379.34 € without VAT
Availability
on request
Top accessories for Lilliput TK-1850/T
SmallRig Mount Plate for Monitor VESA for Camera Cart 6257
The SmallRig 6257 VESA kit attaches a production monitor to a camera cart or stand
330 €
In stock > 5 pcs
PremiumCord USB-C to HDMI Cable, 1.8 m, 4K*2K@60Hz Resolution, Aluminum
This cable enables high-quality video and audio conversion from USB-C to HDMI connector
13 €
In stock 3 pcs
Canare HDMI Cable 5 m
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs
Manfrotto TetherGear VESA Monitor Mount
The TetherGear VESA Monitor Mount is the ideal connecting solution for image makers
197 €
2 pcs in stock at the supplier
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput TK-1850/T is an 18.5" Full HD industrial touch monitor with 1000 nits brightness, readable in sunlight. It features optical bonding with anti-glare coating, 7H glass hardness, IK07 impact resistance, an IP65/NEMA 4 front panel, 10-point capacitive touch usable with gloves, auto dimming and HDMI, VGA and AV inputs. It mounts in a panel or via VESA 75/100 mm.
Sunlight-readable, impact-resistant
An 18.5" Full HD panel with 1000 nits behind 7H hardened glass. The IP65/NEMA 4 front and IK07 test make it ideal for public spaces, production lines and outdoor kiosks.
18.5" 1920 × 10801000 nitsIP65 / NEMA 47H · IK07Glove touch
Touch with wet hands or gloves
The sensitive capacitive layer reacts to wet fingers and to rubber, latex or PVC gloves. Optical bonding removes the air gap under the glass, so dust and moisture cannot get in.
Auto dimming
An ambient light sensor adjusts brightness and saves energy.
−10 to 60 °C
Vibration 1.5 Grms and 10 G shock per IEC 60068.
2 speakers
Plus a 3.5 mm headphone output.
12–24 V DC
Max. 32 W, 15 V adapter included.

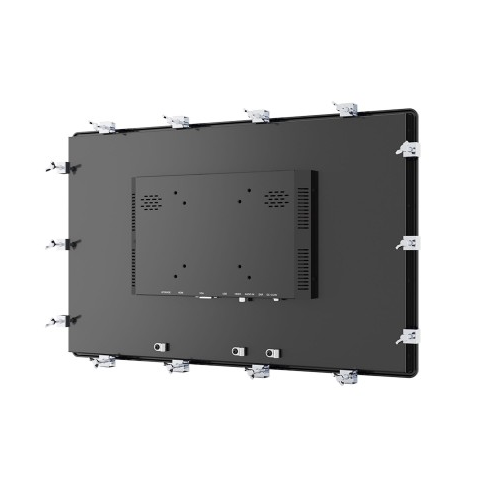

Panel mounting
Fourteen fixing screws clamp the monitor from behind to the cut-out; the foam gasket keeps the front sealed.

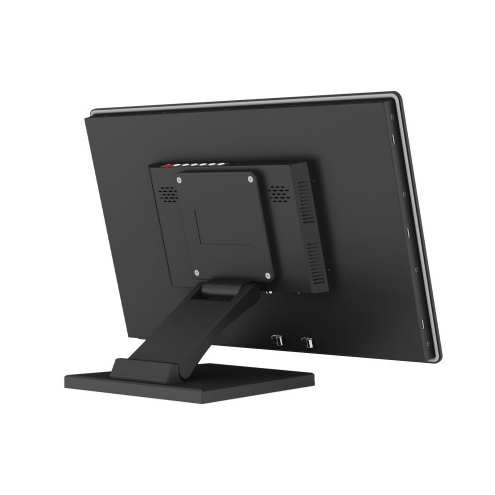

On a desk or an arm

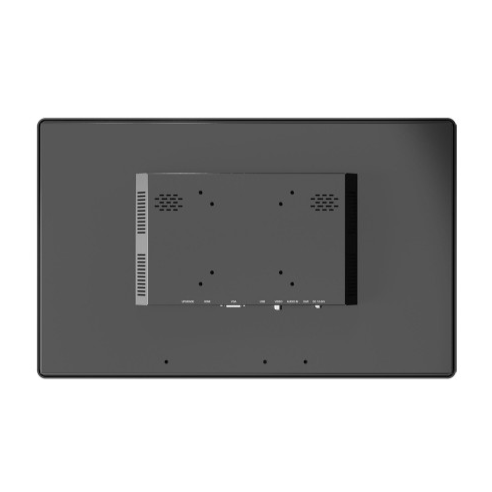

The rear VESA 75/100 mm takes the optional folding stand or industrial arms.
More information
About the TK-1850/T
The TK-1850/T Full HD commercial monitor offers sunlight-readable 1000 nits and IP65 dust and water protection for commercial and industrial applications. It is VESA compatible and comes with a screw kit for panel installation. Connect standard and HD sources via VGA, RCA and HDMI; HDMI and VGA cables are included.
The monitor has passed IK07 impact testing, has 7H screen hardness and auto dimming that adjusts brightness to ambient light. Two built-in speakers and a 3.5 mm headphone output handle audio; touch works over USB.
PACKAGE CONTENT
- Lilliput TK-1850/T monitor
- 15 V / 3 A power adapter
- HDMI A–A cable
- VGA cable
- USB-A to USB-C cable (for touch)
- Mounting screw kit (14 pcs)
- Cable clamps (4 pcs)
- Silicone foam gasket
SPECIFICATIONS
- Model: TK-1850/T
- Display: 18.5" LCD
- Resolution: 1920 × 1080
- Aspect ratio: 16:9
- Brightness: 1000 cd/m²
- Contrast: 1000:1
- Viewing angle: 170° / 170° (H/V)
- Screen coating: anti-glare, anti-fingerprint, optical bonding
- Hardness / impact: ≥ 7H (ASTM D3363) / ≥ IK07 (IEC 62262 / EN 62262)
- Touch panel: 10-point capacitive
- Inputs: 1× HDMI, 1× VGA, 1× video & audio (RCA), 1× USB-A (touch and upgrade)
- HDMI formats: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- VGA formats: 1080p 24/25/30/50/60, 1080psF 24/25/30, 1080i 50/60, 720p 50/60
- Audio: 2× speaker, HDMI (2ch), 3.5 mm headphone output (2ch, 48 kHz, 24 bit)
- Power input: DC 12–24 V
- Power consumption: ≤ 32 W (15 V)
- Protection rating: front panel IP65 (IEC 60529), NEMA 4
- Vibration: 1.5 Grms, 5–500 Hz, 1 h/axis (IEC 60068-2-64)
- Shock: 10 G, half-sine, 11 ms (IEC 60068-2-27)
- Operating temperature: −10 to 60 °C
- Storage temperature: −20 to 60 °C
- Dimensions (W × H × D): 475 × 296 × 45.7 mm
- Weight: 4.6 kg
- Mounting: panel mounting with screws, VESA 75/100 mm (folding bracket optional)
- Housing: metal housing
WE RECOMMEND
Recommended for the Lilliput TK-1850/T:
Cables – to connect the video source
Mounting – on a stand, an arm or a desk
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 720p up to 60p · 1080p up to 60p · 4K UHD up to 30p |
| Size | 18.5" |
| Monitor inputs | HDMI · Composite Video · VGA |
| Luminosity | 1000cd/m2 |
| Panel resolution | 1920x1080 |
| Monitor power supply | DC 12–24 V |
Other parameters
| Tally | No |
| Other features | Touchscreen · Resilient · IP65 |
| High Brightness | Yes |
