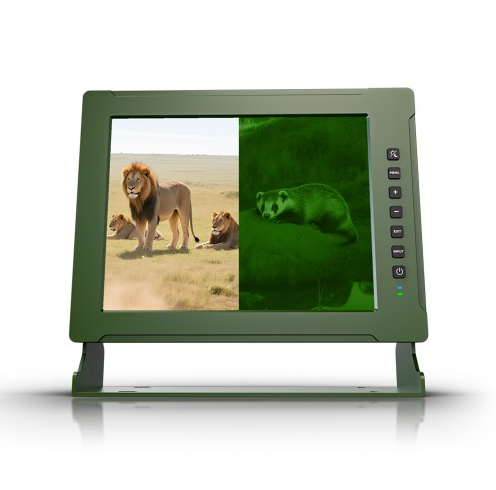

Lilliput NV104
SKU: NV104
The Lilliput NV104 is a rugged 10.4" 1024 × 768 monitor with two brightness modes: up to 1000 nits by day and below 0.03 nit in a night mode compatible with night-vision devices (NVIS). It has 5-wire resistive touch with anti-glare coating, an IP65/NEMA 4X metal housing, a heater, operation from −30 to 70 °C and 12–36 V power.
629 € with VAT
519.83 € without VAT
Availability
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput NV104 is a rugged 10.4" 1024 × 768 monitor with two brightness modes: up to 1000 nits by day and below 0.03 nit in a night mode compatible with night-vision devices (NVIS). It has 5-wire resistive touch with anti-glare coating, an IP65/NEMA 4X metal housing, a heater, operation from −30 to 70 °C and 12–36 V power.
Day and night, frost and heat
A monitor for ships, vehicles, railways and aviation. One button switches between 1000-nit daylight mode and NVIS night mode below 0.03 nit.
10.4" 1024 × 7681000 / 0.03 nitIP65 / NEMA 4X−30 to 70 °CDC 12–36 V
A reliable image in every situation
A built-in smart heater keeps the monitor running in severe cold, and it tolerates heat up to 70 °C. Optical bonding prevents fogging and reflections, EMC protection keeps the image stable and touch works with wet hands or gloves.
NVIS
Night mode compatible with night-vision devices.
50,000 hours
Service life of the industrial LED panel.
Military standards
MIL-STD-461F, MIL-STD-810G, IEC 60945, ISO 7637-II.
3 mounting options
RAM bracket, VESA 75 mm and the included gimbal bracket.
Sealed connectors
Power, HDMI, VGA and USB use rugged connectors with integrated dust and water caps.
Glove touch
The resistive layer responds to rubber, latex, leather, PVC and cotton gloves.
More information
About the NV104
This 10.4" LCD monitor is built for extreme conditions and operates from −30 to 70 °C. Two display modes – night mode for night-vision devices (0.03 nit) and day mode (up to 1000 nits) – ensure visibility around the clock. IP65 protection, a rugged metal housing, a 50,000-hour panel life and HDMI and VGA inputs make it ideal for industrial and outdoor use.
The NV104 has 5-wire resistive touch with anti-glare coating (capacitive anti-fingerprint touch optional), 1000:1 contrast, a 170° viewing angle, a built-in speaker and flexible DC 12–36 V power with a typical 13 W consumption. VESA 75 mm and RAM mounting ensure a secure installation in harsh conditions.
PACKAGE CONTENT
- Lilliput NV104 monitor
- Gimbal bracket
- Power connector cable
- VGA + audio cable
- HDMI A–A cable
- USB A–A cable
SPECIFICATIONS
- Model: NV104
- Display: 10.4" LCD, 4:3
- Resolution: 1024 × 768
- Brightness (day / night): day mode 1000 nits / NVIS night mode dimmable below 0.03 nit
- Contrast: 1000:1
- Viewing angle: 170° / 170° (H/V)
- Backlight life: 50,000 hours
- Touch panel: 5-wire resistive with AG (optional capacitive with AG + AF; EMI glass customisable)
- Inputs: 1× HDMI, 1× VGA + audio, 1× USB-A (touch and upgrade)
- HDMI formats: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- VGA formats: 1080p 24/25/30/50/60, 1080psF 24/25/30, 1080i 50/60, 720p 50/60
- Audio: 1× speaker, HDMI (2ch, 24 bit)
- Power input: DC 12–36 V
- Power consumption: ≤ 13 W (15 V, normal mode), ≤ 69 W (15 V, heating mode)
- Protection rating: IP65, NEMA 4X
- Standards: MIL-STD-461F and IEC 60945 (compatible), MIL-DTL-38999 (compatible), MIL-STD-810G and ISO 7637-II (compliant)
- Operating temperature: −30 to 70 °C
- Storage temperature: −30 to 80 °C
- Dimensions (W × H × D): 276 × 208 × 52.5 mm
- Weight: 2 kg (with gimbal bracket)
- Mounting: gimbal bracket (180° tilt), VESA 75 mm, RAM bracket
- Housing: metal housing
Parameters
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 720p up to 60p · 1080p up to 60p · 4K UHD up to 30p |
| Size | 10.4" |
| Monitor inputs | HDMI · VGA |
| Luminosity | 1000cd/m2 |
| Panel resolution | 1024x768 |
| Monitor power supply | 12–36V |
Other parameters
| Tally | No |
| Other features | Touchscreen · Resilient · IP65 |
| High Brightness | Yes |
