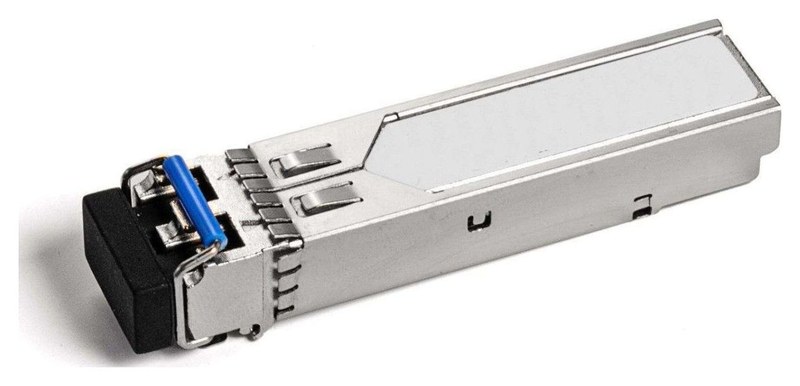

Lilliput 3 Gb/s Video SFP Optical Receiver
SKU: 3G-SFP-LC-RX
The Lilliput 3G-SFP-LC-RX optical receiver is an SFP module that accepts an SDI signal from optical fibre and converts it back to an electrical signal. It handles 50 Mb/s to 2.97 Gb/s (SMPTE 259M, 344M, 292M and 424M) including SDI pathological patterns and, paired with the matching transmitter, carries video over single-mode fibre for up to 12.4 miles (20…
168 € with VAT
138.84 € without VAT
Availability
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

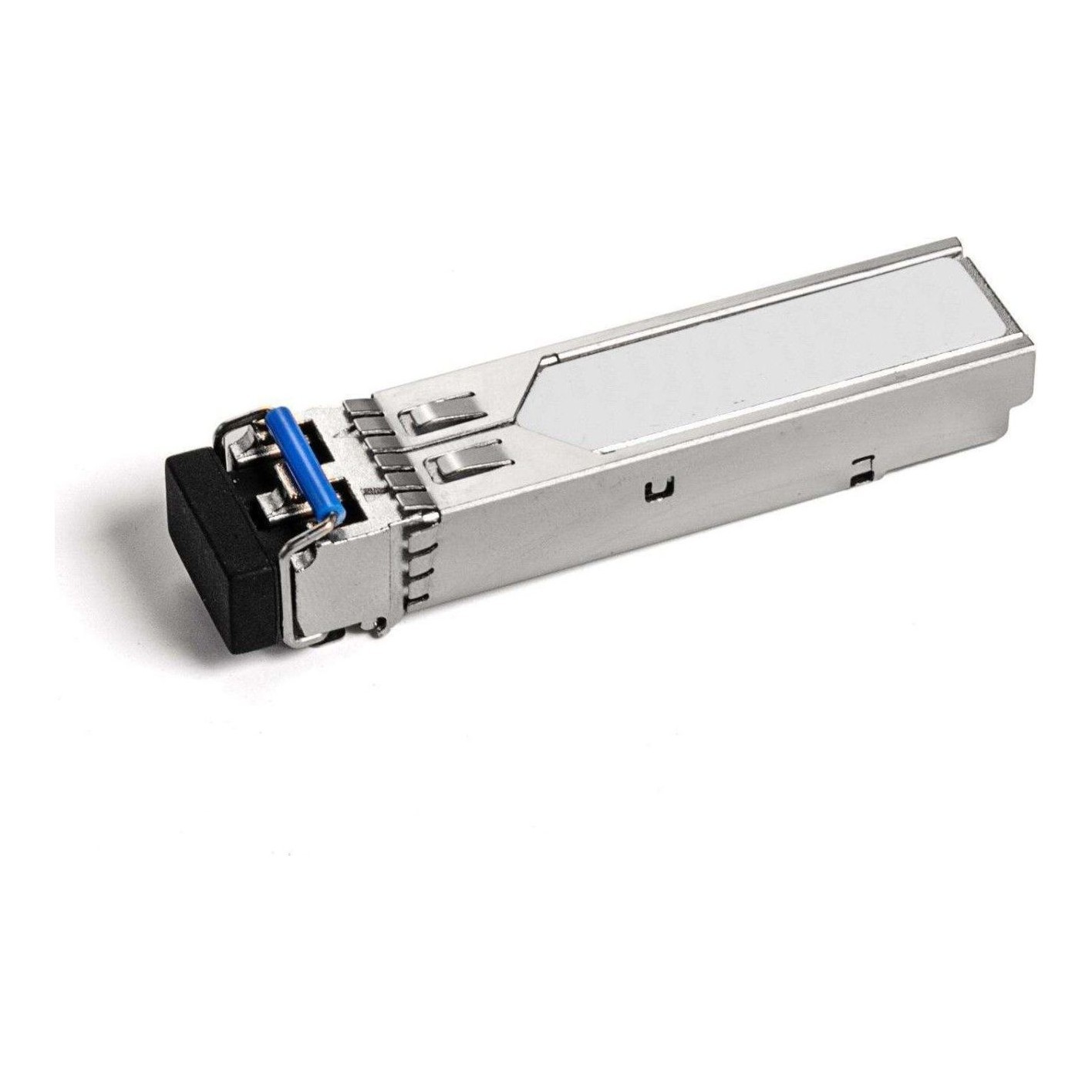

The Lilliput 3G-SFP-LC-RX optical receiver is an SFP module that accepts an SDI signal from optical fibre and converts it back to an electrical signal. It handles 50 Mb/s to 2.97 Gb/s (SMPTE 259M, 344M, 292M and 424M) including SDI pathological patterns and, paired with the matching transmitter, carries video over single-mode fibre for up to 12.4 miles (20 km).
SDI from optical fibre, up to 12.4 miles

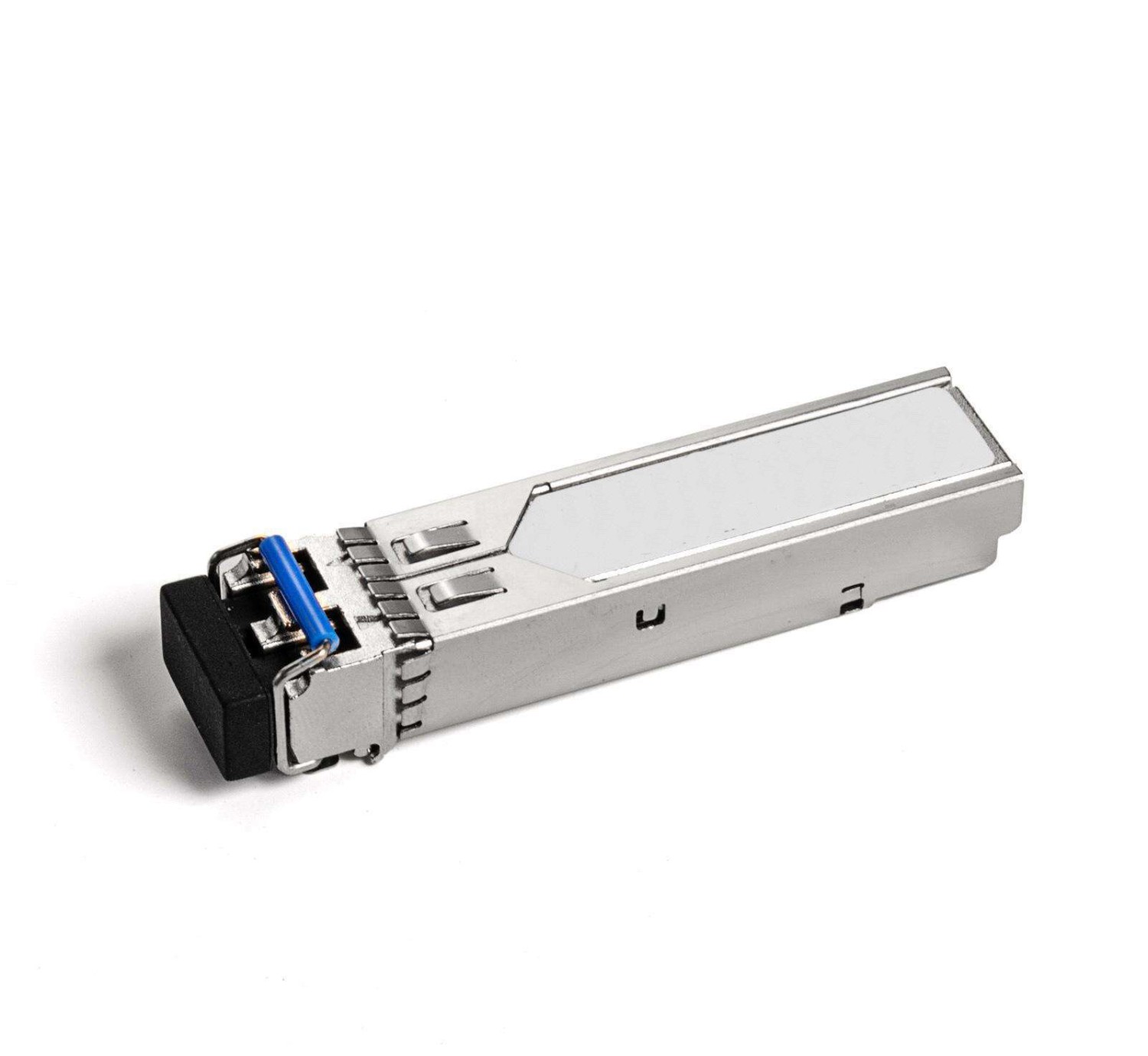

An SFP module with an LC connector and a PIN photodiode that converts optical SD, HD and 3G-SDI back to an electrical signal. It works as a pair with the 3G-SFP-LC-TX transmitter.
SFP · LCSD/HD/3G-SDI50 Mb/s – 2.97 Gb/sup to 12.4 miles3.3 V
Video where coax cannot reach
Paired with a 3 Gb/s optical transmitter, it carries SDI over single-mode fibre for up to 12.4 miles (20 km) – without the loss and interference that limit copper coax.
PIN photodiode with TIA
The receiving section is a PIN photodiode with an integrated trans-impedance preamplifier and an MCU control unit.
I2C diagnostics
Digital diagnostic functions to SFF-8472 are available through the I2C interface.
More information
About the product
Consisting of two sections, the 3 Gb/s Video SFP Optical Receiver features an MCU control unit and a PIN photodiode integrated with a trans-impedance preamplifier (TIA), with both modules satisfying class I laser safety requirements.
Further features: PIN photodetector; metal enclosure for lower EMI; support for video pathological patterns for SD-SDI, HD-SDI and 3G-SDI; non-MSA pinout; digital diagnostic functions available through the I2C interface; compatible with the SFP Multi-Source Agreement (MSA) and SFF-8472; RoHS compliant; 3.3 V single power supply. The module is fully compliant with the SMPTE 297M-2006 standard for SDI over fibre.
PACKAGE CONTENT
- Lilliput 3G-SFP-LC-RX 3 Gb/s video SFP optical receiver
SPECIFICATIONS
- Brand: Lilliput
- Model: 3G-SFP-LC-RX
- Type: 3 Gb/s video SFP optical receiver
- Form factor: SFP
- Optical connector: LC
- Fibre: single-mode, up to 12.4 miles (20 km)
- Data rate: 50 Mb/s – 2.97 Gb/s
- Signals: SD-SDI, HD-SDI, 3G-SDI
- Standards: SMPTE 259M, 344M, 292M, 424M, 297M-2006
- Photodetector: PIN photodiode with trans-impedance preamplifier (TIA)
- Diagnostics: digital diagnostics via I2C (SFF-8472)
- Laser safety: class I
- Housing: metal (lower EMI)
- Power: 3.3 V
- Compliance: SFP MSA, SFF-8472, RoHS
