Libec TR-320

The Libec TR-320 is a 3.2 m long straight track dolly system with a base onto which you can place almost any tripod (not just Libec) or the Libec SWIFT JIB50 camera jib. The kit includes a dolly with derail protection and eight 80 cm aluminium pipes with screw-in joints. It carries up to 60 kg and expands with the CR-90 curve or EX-160S extension.

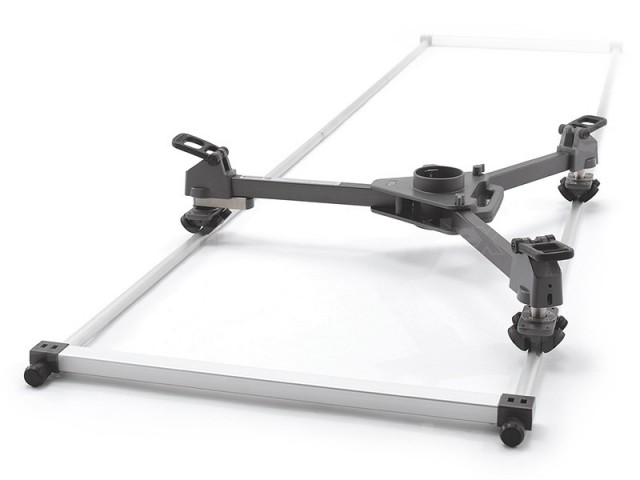

The Libec TR-320 is a tracking rail kit with a dolly and eight 80 cm aluminum pipes that build a 320 cm rail. The dolly offers high-performance bearings and a specialized tracking system to prevent derailing, runs smoothly on straight or curved rails and carries up to 60 kg.

Smooth moves on rails

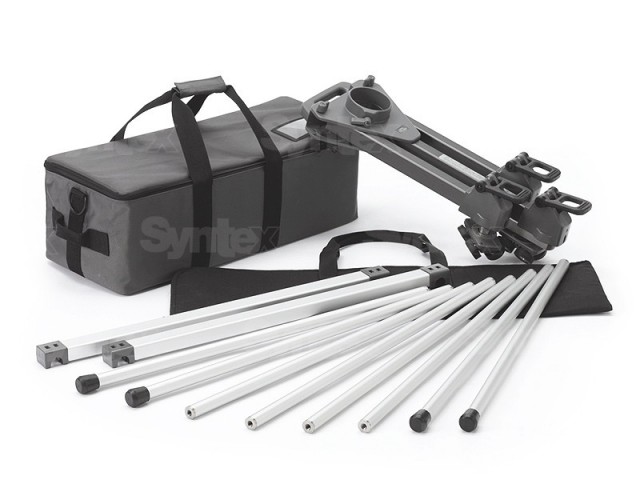

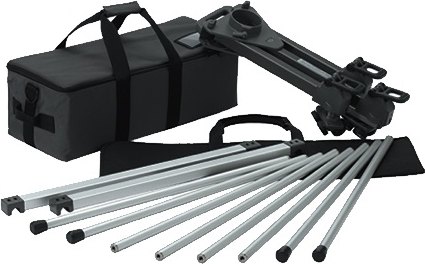

Tracking rail kit: dolly, eight 80 cm pipes for a 320 cm rail, rail stoppers and two carrying cases.

320 cm rail60 kg payloadAluminum pipesStraight or curvedWeight 11.3 kgScrew-in joints

Rails set up in no time

With a simple screw-in mechanism, the pipes are easily and firmly assembled for a quick set-up. The CR-90 curved rail and EX-160S straight extension expand the kit.

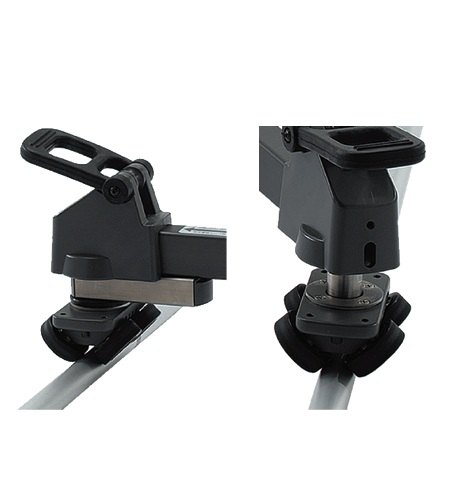

Derail protection

Skids at the dolly axle and inside the rail prevent derailing in curves. On straight rails they adjust skew for smooth movement without any adverse effect on the image.

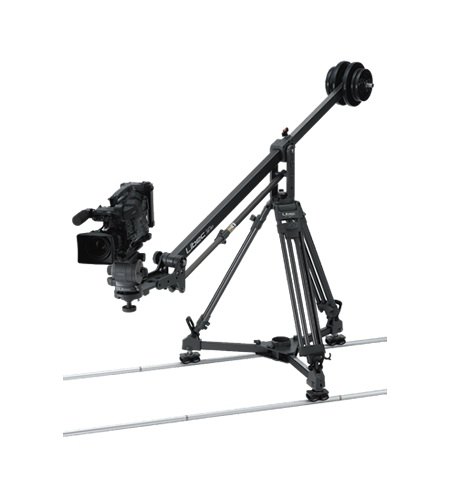

For tripod, pedestal or jib

Place a tripod, a pedestal or a camera jib on the dolly. Its payload is up to 60 kg.

Smooth, shock-free movement

Shaft-bearing integral casters absorb shock and weight, giving super smooth movement on the rail without any adverse effect on the image.

320 cm length

Eight 80 cm pipes form a straight track.

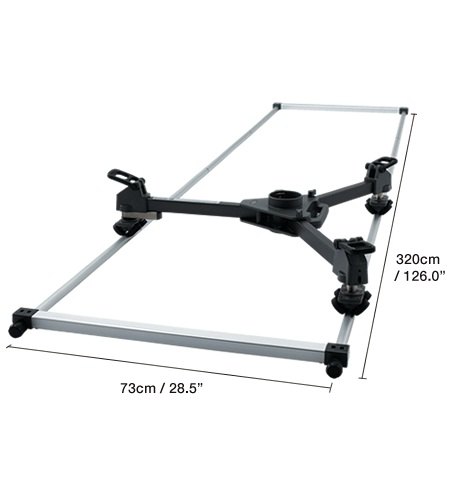

73 cm width

The rail width shown in the Libec drawing is 73 cm.

Two cases

Dolly and rails each have their own carrying case.

Expandable

The CR-90 curve and EX-160S extension are available separately.

The Libec TR-320 track dolly system makes it possible to create a smooth and fluid motion that is almost impossible to achieve any other way. The basic set-up includes 3.2m long straight tracks, which can be extended by a further 1.8m (Libec EX-160S) or a 90° curve (Libec CR-90) to create an almost arbitrarily shaped track. Almost any tripod, pneumatic tripod or Libec SWIFT JIB50 camera arm can be attached to the rail base. The rolling base allows you to mount the LA-110 "low-angle" adapter which allows you to create interesting shots.

The TR-320 system includes the base and up to eight pieces of 80cm long straight aluminium alloy tubing, which allows you to create a 3.2m long straight track. The simple mechanism of attaching the individual tubes to each other makes it very quick and easy to set up or dismantle the track.

The base contains up to 12 rubberised wheels (4 wheels per foot) mounted at an angle to ensure smooth and gentle movement along the straight track. Thanks to the adjustable and sliding leg, the track base has no problem even in curves and ensures a smooth and undisturbed movement. In addition, the rubberized wheels can absorb even small dirt particles and do not transfer their influence into the picture.

Basic features of the Libec TR-320:

• total weight: 11.3kg
• base weight: 5.8kg
• load capacity: up to 60kg

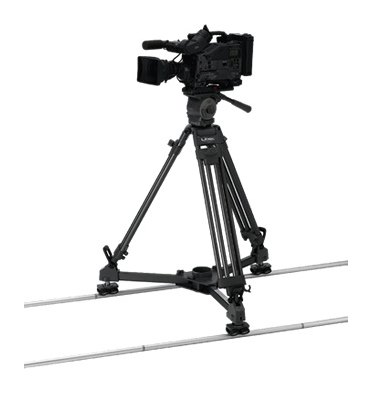

Tripod on rails. The TR-320 dolly carries a tripod and camera for smooth moves along a straight track.

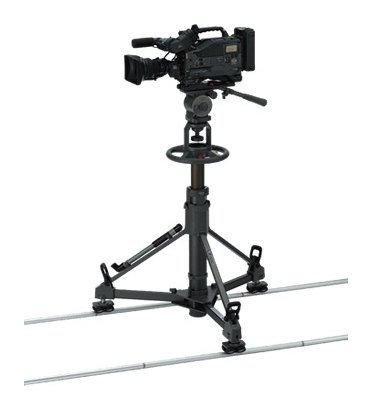

Pedestal on rails. A pedestal with camera can also ride on the dolly.
