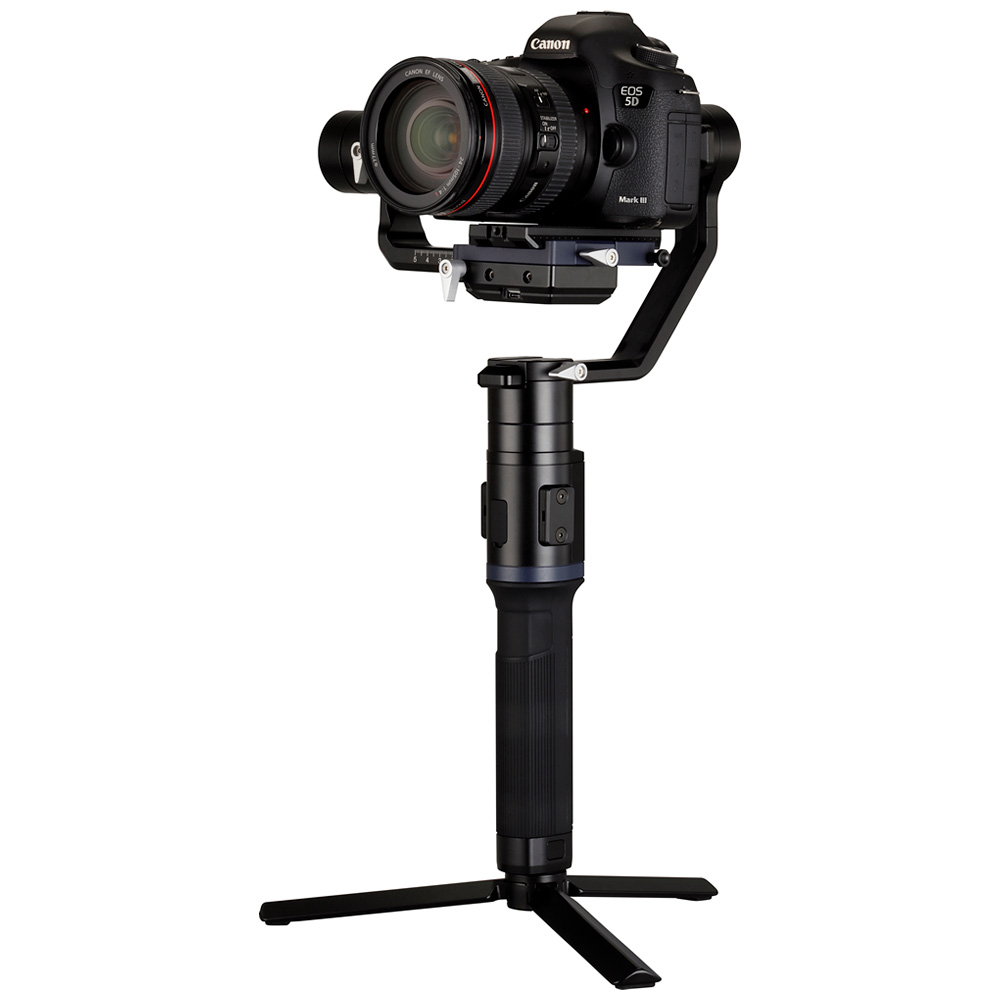

Libec TH-G3 Multi-Action Gimbal

TH-G3 Multi-Action Gimbal can support a wide range of cameras weighing from 0.5kg to 3.6kg. The TH-G3 has multiple action modes. By connecting to Libec's smart phone App, motion time-lapse, remote controls, and detailed adjustments can be achieved. Designed with a long battery life of 18 hours, users can enjoy many hours of recording comfortably. The TH-G3 is compatible with the majority of mirrorless and DSLR cameras. By connecting the camera to the gimbal with a standard connection cable, users can control the camera's shutter and focus. 1/2020.

With a high payload range from 0.5kg to 3.6kg, the TH-G3 supports a wide range of cameras from mirrorless cameras to full-size DSLR with multiple types of lenses. The TH-G3 has three shooting modes including "Top Down Mode", "Bottom Up Mode", and "Pen Light Mode". These shooting modes provide great flexibility for your desired photo and video shoots. To greatly assist on photo and video shoots, the TH-G3 has four follow modes including "Pan Follow Mode", "Pan & Tilt Follow Mode", "Lock Mode", and "Roll Follow Mode". Simply switch between modes by pressing the button. By setting the gimbal to "Pen Light Mode" and moving the joystick, a 360°roll action can be achieved, allowing users to make high impact video clips. By pressing the "Mode" button three times, the gimbal will be switched to the Action Mode. This mode provides higher motor strength to catch the fast moving subject while minimizing instability.

With the "Libec App", users can make setting adjustments such as motor balancing to match the camera's weight, or speed adjustments for the following actions. By connecting to a smart phone via the Libec App, the gimbal's remote controls are accessible, including detailed remote controllability with the gimbal's Pan Lock and Tilt Lock functions. Via the Libec App, motion time-lapse is accessible, allowing users to set the shutter interval on compatible cameras. After setting up the route point on the motion time-lapse, users can preview the route.

Designed with a long battery life of 18 hours, users can enjoy many hours of recording comfortably without having to worry about losing power, even when shooting at a location without a power supply such as the outdoors, fields or events. Maximum working time for setups with a 0.5kg payload: 18 hours. Maximum working time for setups with a 3.6kg payload: 12 hours. Under the gimbal's grip, there is a 1/4" screw hole and a 3/8" screw hole for attachments, not only for the standard mini tripods, but also for other types of monopods or tripods. When folded, the standard mini tripod becomes an extended grip with a easy to hold design. When opened, the standard mini tripod provides great stability. The sliding plate is compatible with Libec, Manfrotto and Sachtler heads, allowing users to quickly swap between camera supports onsite without the need to change sliding plates.

Specifications
Payload: Min. 500g, Max.3600g
Operation Time: Min.12h, Max.18h, static operation under proper balance
Charging Time: 6h
Input Vol.: Min. 11.2v, Standard 14.8V, Max. 16.8V
Operation Current: Min.150mA, Max.7600mA
Operation Temperature: Min.-10, Standard +25, Max.+45 C
Tilt Angle Range: 360° Unlimited rotation
Roll Angle Range: 360° Unlimited rotation
Pan Angle Range: 360° Unlimited rotation
Following Deviation in Static State: Min.±0.01° Max. ±0.03°
Following Deviation in Motion State: Min.±0.05° Max. ±0.1°
Product Dimension: 192mmx79mmx460mm
Weight: 1470 g excluding batteries
Accessory Ports: Mechanical: 1/4" and 3/8" Mounting/Screw holes
Electrical: 8V/2A Power Accessory Port, Camera Control Port
User Interface: Bluetooth 4.0
