Libec RH45D

The Libec RH45D is a video head designed for lighter shoulder mount or handycam cameras with a variety of additional accessories. The video head has a 75mm hemisphere, infinitely adjustable counterweight from 4.5 to 10.5kg and four degrees of rigidity in both directions. Continuous counterbalance from 4.5–10.5 kg and a free plus 3-step drag. Works from −40 to +60 °C.

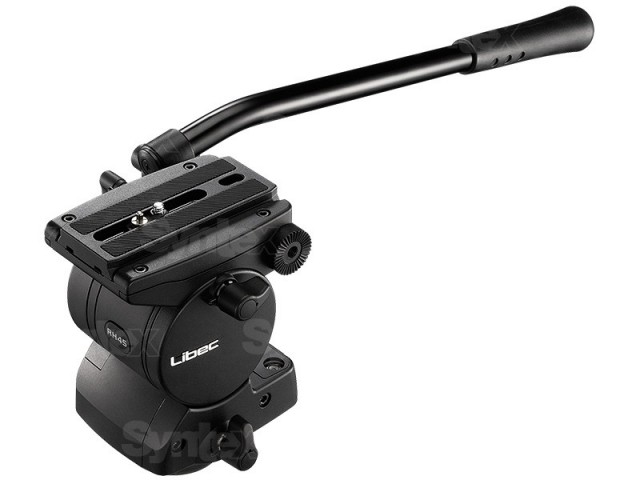

The Libec RH45D is a video head with a 75 mm ball for cameras up to 12 kg. It offers continuous counterbalance across 4.5–10.5 kg (C.G. 100 mm), a drag with a free position plus 3 steps, an illuminated bubble level and a sliding plate. The head weighs 2.7 kg.

Continuous balance from 4.5–10.5 kg

A video head with a 75 mm ball, free plus 3-step drag, an illuminated bubble level and a sliding plate.

12 kg payloadBalance 4.5–10.5 kgFree + 3-step drag75 mm ballTilt +90°/−70°Illuminated level

Continuous counterbalance

Counterbalance is set continuously with a knob across 4.5–10.5 kg at a 100 mm C.G., so the camera stays balanced at any tilt angle. At maximum counterbalance the tilt is limited to ±40°.

Sliding plate

The camera plate slides ±40 mm and holds the camera with a 1/4" screw and video pin. Spare 1/4" and 3/8" screws are stored in the head beneath the plate.

Ball and flat base

Mount the head in a 75 mm bowl, or use the flat base with a 3/8" thread to fit it directly on a slider or other support. The telescopic PH-6B pan bar extends by 200 mm.

Reliable in freezing cold and heat

The head works from −40 to +60 °C and pans a full 360°. A switch turns on the bubble level illumination, so you can level the head even in the dark.

12 kg payload

The head weighs 2.7 kg and carries a camera with accessories up to 12 kg.

Tilt +90° to −70°

360° pan and separate locks for both axes.

Free + 3 steps

The drag offers a free position plus three steps for pan and tilt.

Support knob

The included counterbalance support knob allows smooth turning of the counterbalance knob.

Ball adapter. Mount the flat base with its 3/8" thread directly, or seat it in a tripod bowl with the 75 mm ball adapter.
