Libec RH35D

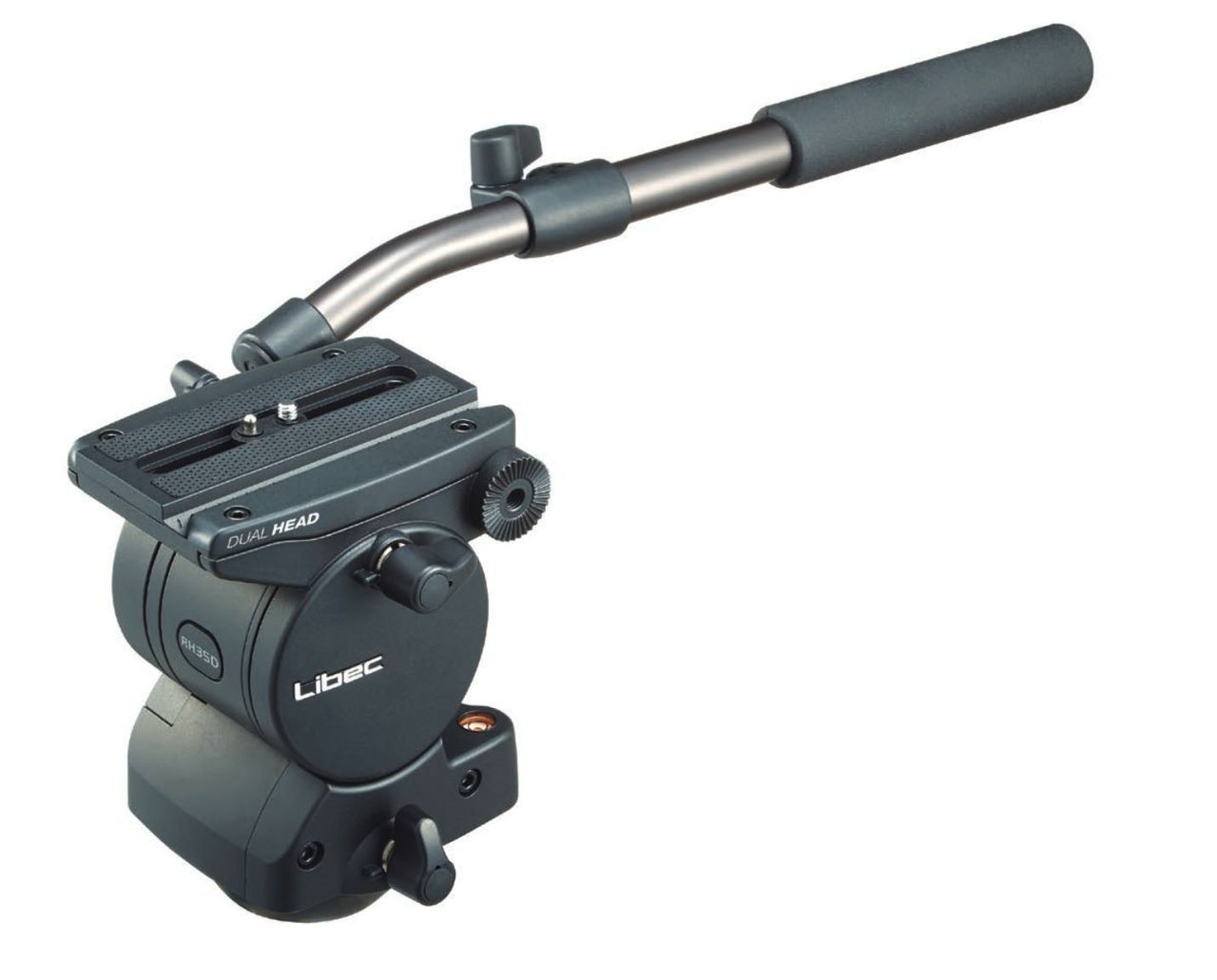

The RH35D head has a native flat base with a 3/8"-16 mounting thread, allowing direct mounting on sliders and other support gear, and it includes a 75mm half-ball adapter via which it attaches to the RT30B tripod. The head has a 9 kg payload and offers continuous counterbalance, 3 steps + 0 drag, independent pan and tilt locks and drag controls, and an illuminated bubble level. It comes with a telescoping pan bar and a sliding quick release plate with 1/4"-20 and 3/8"-16 screws.

The Libec RH35D is a video head with a 75 mm ball for cameras up to 9 kg. It offers continuous counterbalance across 3–7.5 kg (C.G. 100 mm), a drag with a free position plus 3 steps, an illuminated bubble level and a sliding plate. The head weighs 2.7 kg.

Continuous balance from 3–7.5 kg

A video head with a 75 mm ball, free plus 3-step drag, an illuminated bubble level and a sliding plate.

9 kg payloadBalance 3–7.5 kgFree + 3-step drag75 mm ballTilt +90°/−70°Illuminated level

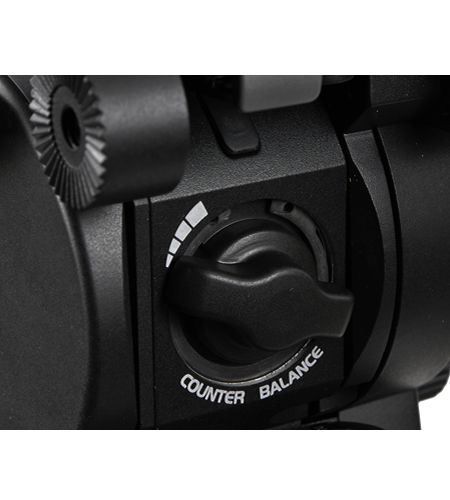

Continuous counterbalance

Counterbalance is set continuously with a knob across 3–7.5 kg at a 100 mm C.G., so the camera stays balanced at any tilt angle. At maximum counterbalance the tilt is limited to ±40°.

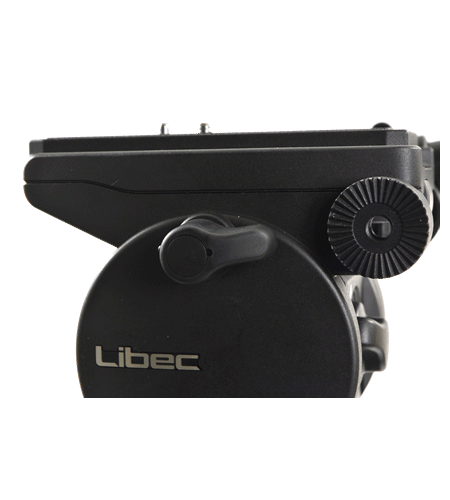

Sliding plate

The camera plate slides ±40 mm and holds the camera with a 1/4" screw and video pin. Spare 1/4" and 3/8" screws are stored in the head beneath the plate.

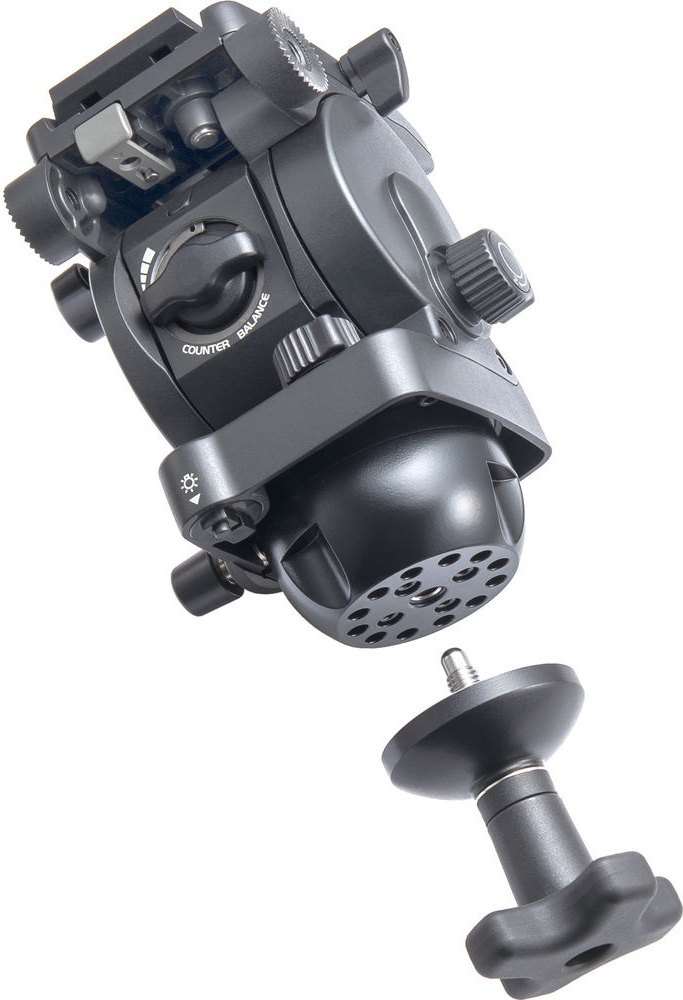

Ball and flat base

Mount the head in a 75 mm bowl, or use the flat base with a 3/8" thread to fit it directly on a slider or other support. The telescopic PH-6B pan bar extends by 200 mm.

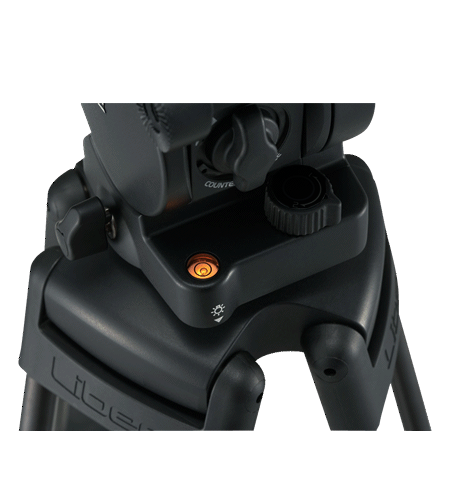

Reliable in freezing cold and heat

The head works from −40 to +60 °C and pans a full 360°. A switch turns on the bubble level illumination, so you can level the head even in the dark.

9 kg payload

The head weighs 2.7 kg and carries a camera with accessories up to 9 kg.

Tilt +90° to −70°

360° pan and separate locks for both axes.

Free + 3 steps

The drag offers a free position plus three steps for pan and tilt.

Support knob

The included counterbalance support knob allows smooth turning of the counterbalance knob.
