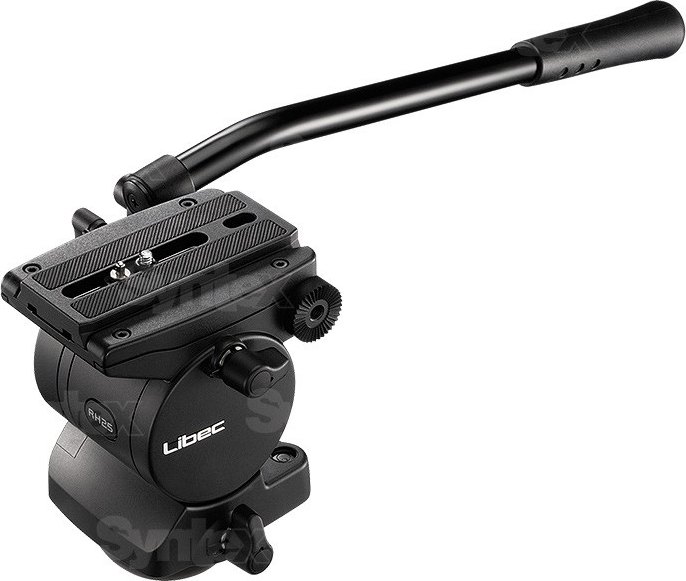

Libec RH25D

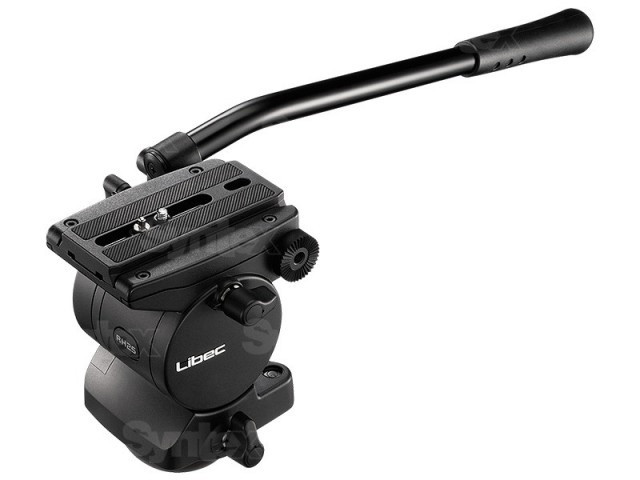

The Libec RH25D video head offers an exceptional price/performance ratio and is designed for smaller and lighter cameras up to 6 kg. The head has a 75 mm ball, continuous counterbalance adjustment from 1.8 to 5 kg and two drag steps on both axes. It features a sliding plate with a ±40 mm range, an illuminated bubble level, a flat base with a 3/8" thread and a telescopic PH-6B pan bar.

The Libec RH25D is a video head with a 75 mm ball for cameras up to 6 kg. It offers continuous counterbalance across 1.8–5 kg (C.G. 100 mm), a 2-step drag, an illuminated bubble level and a sliding plate. The head weighs 2.5 kg.

Continuous balance from 1.8–5 kg

A video head with a 75 mm ball, 2-step drag, an illuminated bubble level and a sliding plate.

6 kg payloadBalance 1.8–5 kg2-step drag75 mm ballTilt +90°/−70°Illuminated level

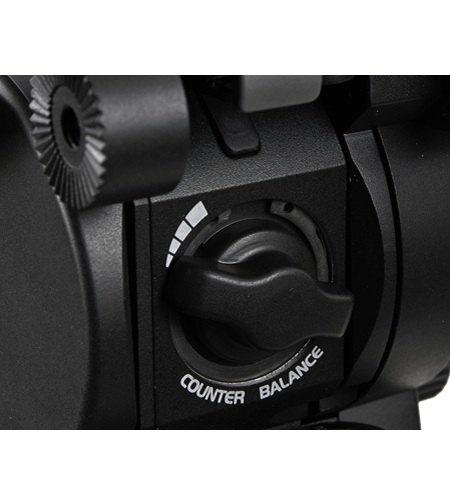

Continuous counterbalance

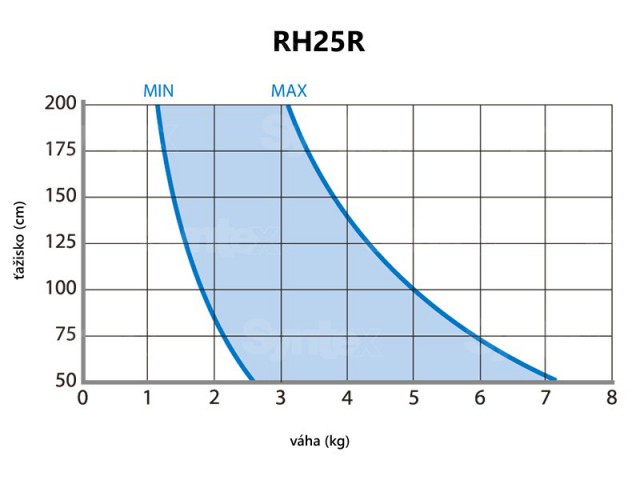

Counterbalance is set continuously with a knob across 1.8–5 kg at a 100 mm C.G., so the camera stays balanced at any tilt angle. At maximum counterbalance the tilt is limited to ±40°.

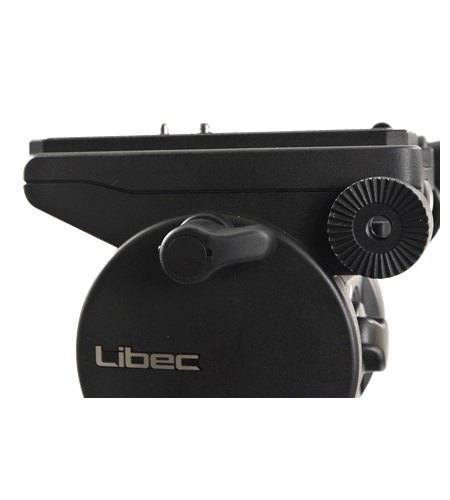

Sliding plate

The camera plate slides ±40 mm and holds the camera with a 1/4" screw and video pin. Spare 1/4" and 3/8" screws are stored in the head beneath the plate.

Ball and flat base

Mount the head in a 75 mm bowl, or use the flat base with a 3/8" thread to fit it directly on a slider or other support. The telescopic PH-6B pan bar extends by 200 mm.

Reliable in freezing cold and heat

The head works from −40 to +60 °C and pans a full 360°. A switch turns on the bubble level illumination, so you can level the head even in the dark.

6 kg payload

The head weighs 2.5 kg and carries a camera with accessories up to 6 kg.

Tilt +90° to −70°

360° pan and separate locks for both axes.

2-step drag

Two drag steps for both pan and tilt.

PH-6B pan bar

The telescopic pan bar extends by 200 mm.

The Libec RH25D video head features an exceptional price/performance ratio and is designed for smaller and lighter cameras up to 6kg. The head has a 75mm hemisphere, infinitely adjustable counterbalance from 1.8 to 5kg and two degrees of rigidity in both directions.

Ball adapter. Mount the flat base with its 3/8" thread directly, or seat it in a tripod bowl with the 75 mm ball adapter.
