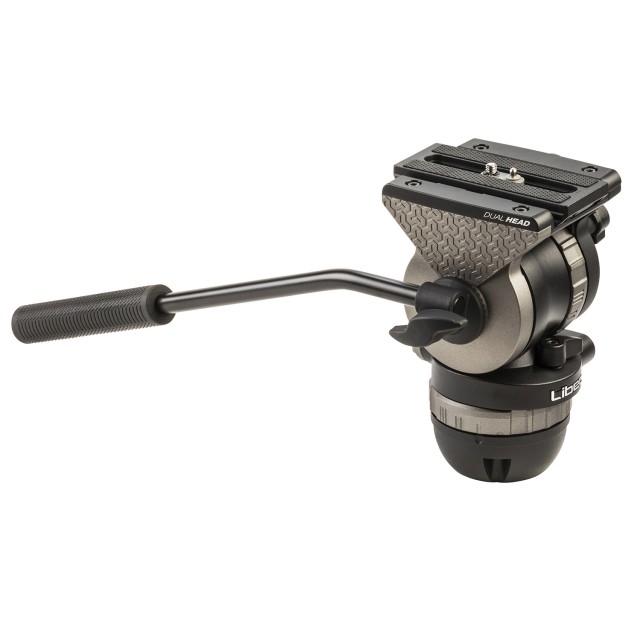

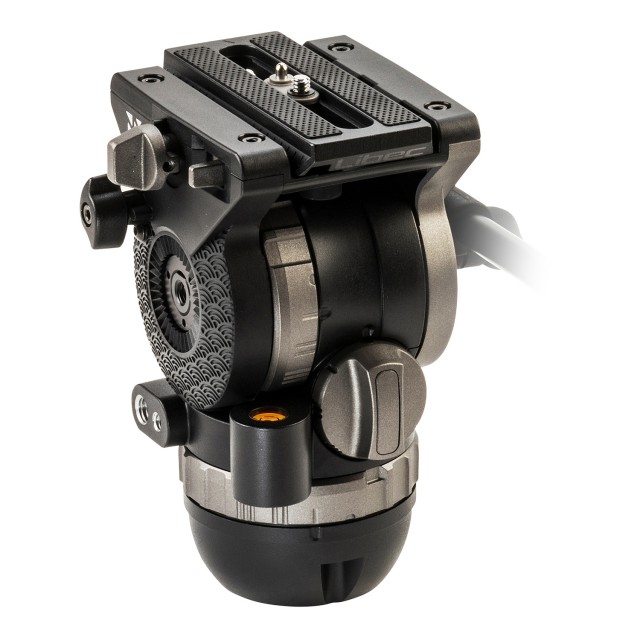

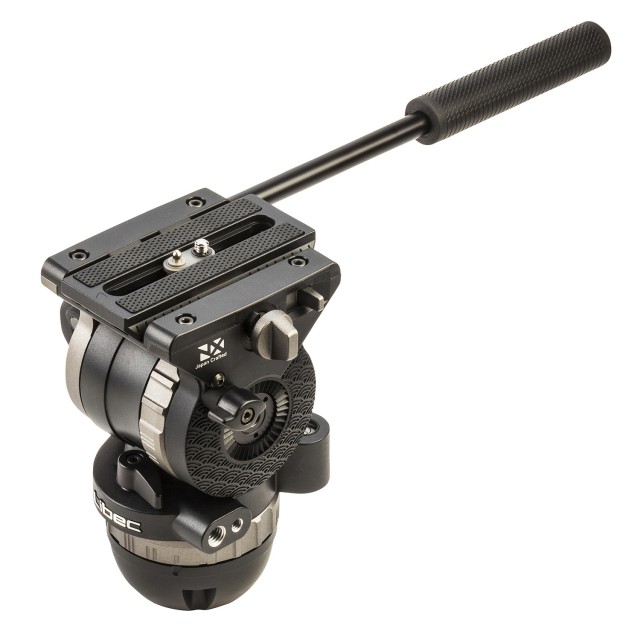

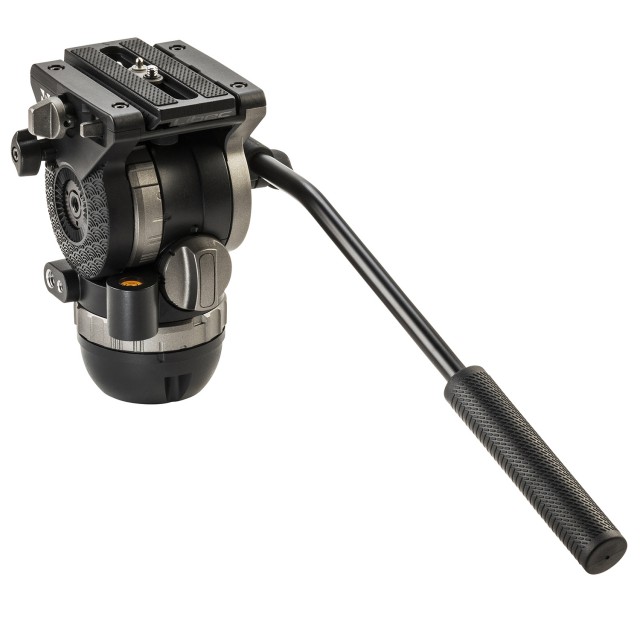

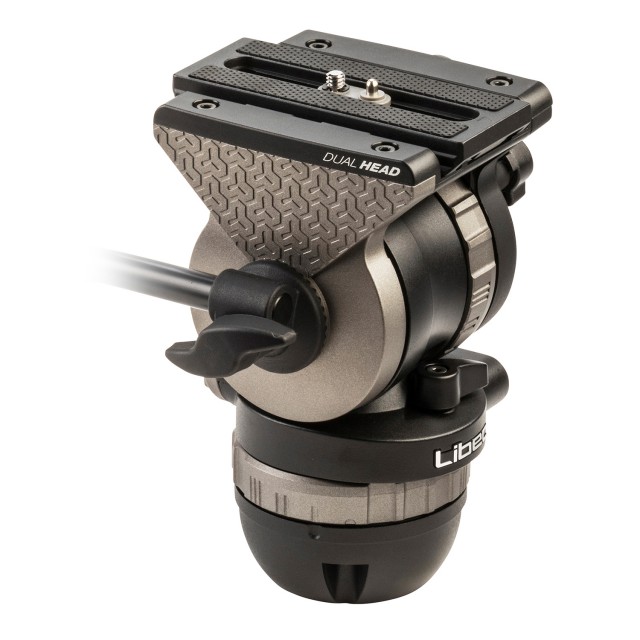

Libec NH30 Video Head

Libec NH30 fluid video head from the NX series with a 10 kg payload for camera configurations from 2.5 to 10 kg. The counterbalance has five steps including a free mode, the drag four steps with a layered metal unit and silicone grease rated from −40 to +60 °C. The dual base fits 75 mm bowls and flat bases, the plate is quick release and the bubble level is LED-lit.

The Libec NH30 is an NX series fluid video head with a 10 kg payload. It is made for the NX-300 systems, i.e. camera configurations from 2.5 to 10 kg, and mounts on a 75 mm bowl as well as on a flat base. The counterbalance is set in five steps including a free mode.

An NX fluid head for 10 kg

Multi-step counterbalance, a metal drag unit and a quick-release sliding plate in a lightweight NX series head.

10 kg payload5-step counterbalance4-step drag75 mm ballFlat baseLED bubble level

Five-step counterbalance

The counterbalance is set in five steps including a zero free mode, so the camera is balanced quickly. The head is designed for configurations from 2.5 to 10 kg.

Dual head base

Mount the head on a 75 mm bowl tripod or a flat base, including sliders and dollies. The pan handle attaches on either side.

Quick-release plate

The sliding plate is also compatible with the TH-M monopod and TH-G3 gimbal. For longer rigs, the Long Plate S long sliding plate is available.

Smooth in frost and heat

The drag offers four steps including a friction-free mode and uses a layered metal unit. The finest silicone grease keeps pan and tilt smooth from −40 to +60 °C.

Precise operation

A design refined by Libec Japan reduces wobbling and backlash in pan and tilt.

Threads on the base

Side 1/4" and 3/8" threads do not affect payload, C.G. or camera balance.

LED bubble level

The illuminated bubble lets you level the tripod in the dark.

Double-sided serrations

Attach a second pan handle or accessories on either side of the head.

To meet market demand, Libec is proud to announce the new NX Series, a high performance lightweight video camera tripod made in Japan. As demand for lightweight multifunctional tripods continues to soar, the NX Series is definitely one of the best cost solutions to consider. NX provides high value in manifold shooting scenes and supports various cameras with a wide range of counterbalance without compromises on performance, quality, texture or appearance. NX challenges the conventional idea that "a lightweight tripod is risky or has low functionalities".

NX-100C/MC. The NX-100C/MC models are specially designed for small cameras and its excellent counterbalance range system can even balance the lightest configuration of a mirrorless camera with a kit lens. In addition, the optimally adjusted drag system provides great operability and smooth start and stop of pan and tilt movements. The NX-100 Series is great for mirrorless cameras, DSLRs, small handheld cameras and light rigged cameras.

NX-300C/MC. The NX-300C/MC models have an outstanding counterbalance range. These models cover a wide of camera configurations with payloads between 2.5kg and 10kg. The NX-300 Series is a must have tripod system that supports a wide range of rigged small cameras, mid-sized handheld cameras and rigged out professional cinema cameras.

The World's Lightest Video Tripod. The NX-100MC/NX-300MC mid-level spreader systems only weigh 3.8 kg and are considered the world's lightest video tripods compared to conventional video tripods equipped with adjustable drag and counterbalance systems. This is achieved by closely exploring the structure, materials, and components, adapting a new mechanism that significantly reduces the number of parts, and applying plastic parts for the main component without compromising operability or functionality.

Operability with Precision. Thanks to specially skilled craftsmen in Libec Japan, we adapted an innovative design to maximize NX's performance. As result, a significant reduction in wobbling and backlash in pan and tilt movements is achieved and offers the best precision operability in its range by far.

Newly Designed Multistep Counterbalance Mechanism. The NX series can support a wide range of camera configurations with a newly designed multistep counterbalance system that fits variety of production styles. Users can select from 5 steps of counterbalance including a zero "free" mode option for speedy set-up.

Advanced Drag Unit. The layered metal unit in the drag system ensures operability, durability and reliability. This advanced drag unit offers smoother starts, improved backlash control and more rigidity than a conventional low cost plastic unit commonly adapted by other brands.

Highly Reliable Multistep Drag System. The NX series features the variable 4 step drag pan tilt system that includes a zero "free" mode option with no friction. In addition, the finest silicone grease is applied to ensure ordinary pan and tilt movements at a wide temperature range from -40˚C/-40˚F up to +60˚C/+140˚F.

Newly Designed Carbon Legs, Foot Pads and Spreader. With a new lightweight structure design, the width of the carbon leg's upper pipe leg is widened to enhance torsional rigidity and provide high payload performance. Developed exclusively for the NX series, the FP-1B foot pads and SP-1B floor spreader are available. The newly designed foot pads and floor spreader are even lighter than the existing model FP-2B and SP-2B.

User Friendly Accessory Attachments. On the side of the fluid head, there are 1/4 and 3/8 inch screw holes to attach an accessory arm with a monitor or a light. Since the holes are located on the base, the payload capacity, center of gravity and front-rear balance are not affected.

Double-sided Serrations. Serrations are equipped on both sides of the head to accommodate an additional pan handle or other accessories.
