Kramer BNC Cable C-BM/BM-15, 4.6 m

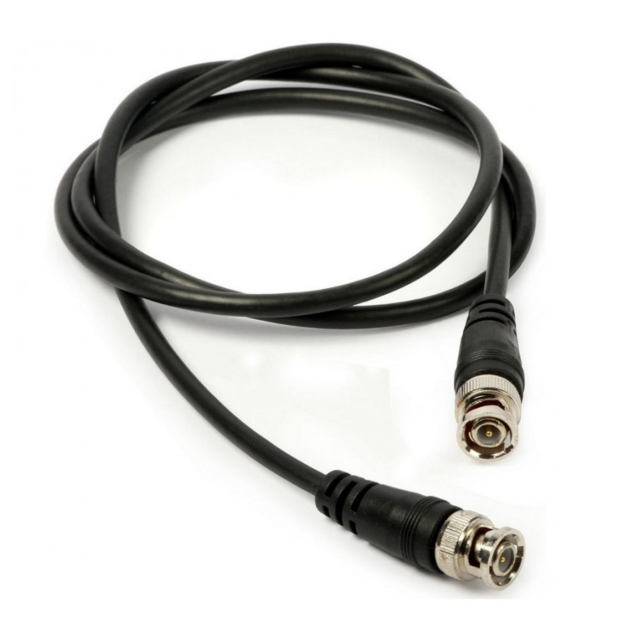

Kramer C-BM/BM-15 BNC (male – male) cable, 4.6 m long, for composite or SDI video. It is built from RG-6 cable with an 18 AWG solid copper conductor and dual shielding, and has true 75 Ω BNC male connectors at both ends. The cable is tested to 3G-SDI and suits control rooms, studios and fixed installations. The dark grey PVC jacket has an outside diameter of 6.95 mm.

RG‑6 with 75 Ω BNC connectors

The C-BM/BM-15 links a source and a destination with BNC connectors over 4.6 m. The 75 Ω impedance is kept from connector to connector, so the signal stays clean even with HD-SDI and 3G-SDI.

4.6 m (15 ft)RG-6BNC 75 Ωtested to 3G-SDI18 AWG copperØ 6.95 mm

Tested to 3G-SDI

RG-6 cable with a skin-foam dielectric and attenuation of 6.7 dB per 100 ft at 1,000 MHz carries both analogue and digital high-resolution video.

Solid copper conductor

18 AWG centre conductor of bare copper, 1.02 mm in diameter.

Dual shielding

Braid of 34 AWG aluminium wire with 61% coverage plus dual foil with Mylar.

True 75 Ω

75 Ω BNC connectors maintain the correct impedance along the whole run.

Choice of lengths

Lengths from 0.5 to 45.7 m. The C-BM/BM series comes in eleven lengths; this version is 4.6 m long.

BNC connectors (male)

A 75 Ω male BNC connector sits at each end.

RG-6 cable

Dark grey PVC jacket, 6.95 mm in diameter, with white lettering.
