Knowled MG4K G-mount Bi-color COB light with paper box

Discover the Knowled MG4K G-mount Bi-color COB light. This professional lighting solution offers versatile bi-color temperature control and powerful COB output, perfect for any creative project. Featuring a robust G-mount for easy accessory attachment, this light is designed for creators who demand quality and flexibility. Supplied in a convenient paper box for storage and transport. Catalog number MG4K.

Technical Description of the Knowled MG4K G-mount Bi-color COB Light with Paper Box

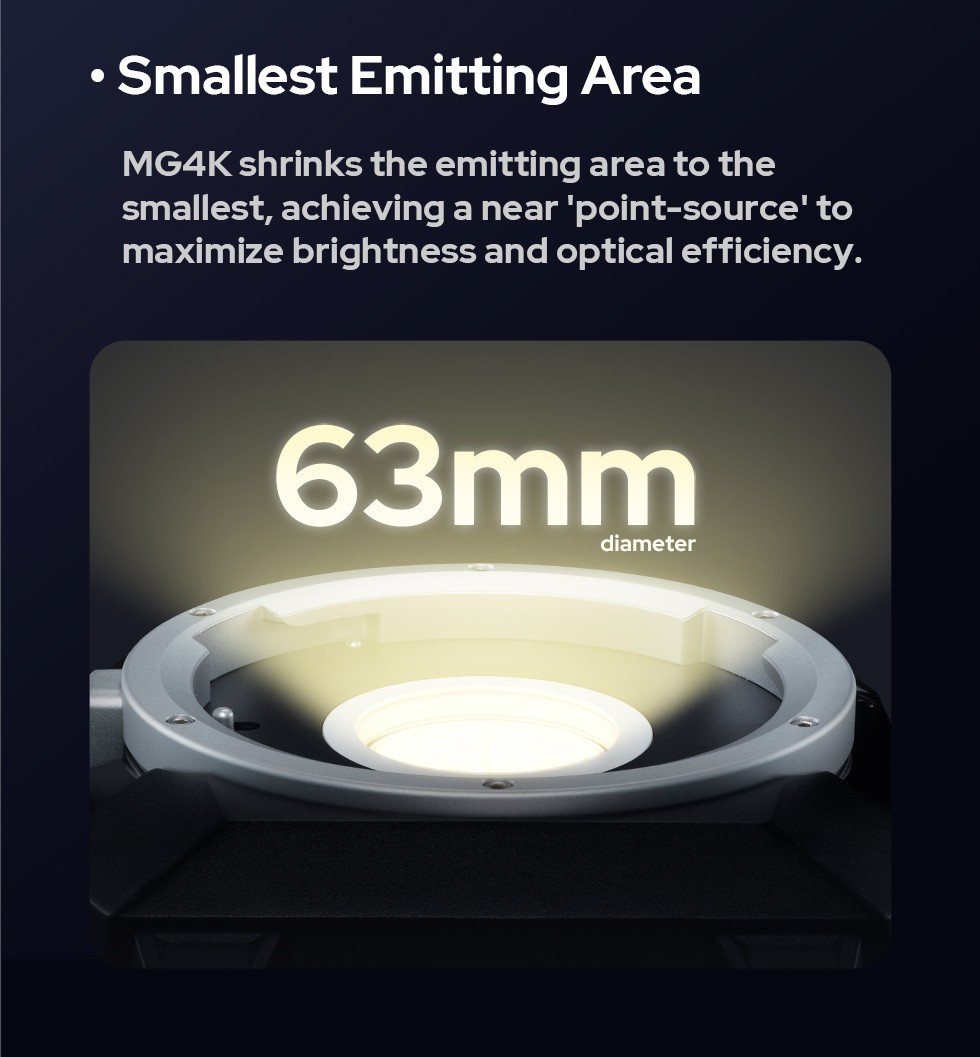

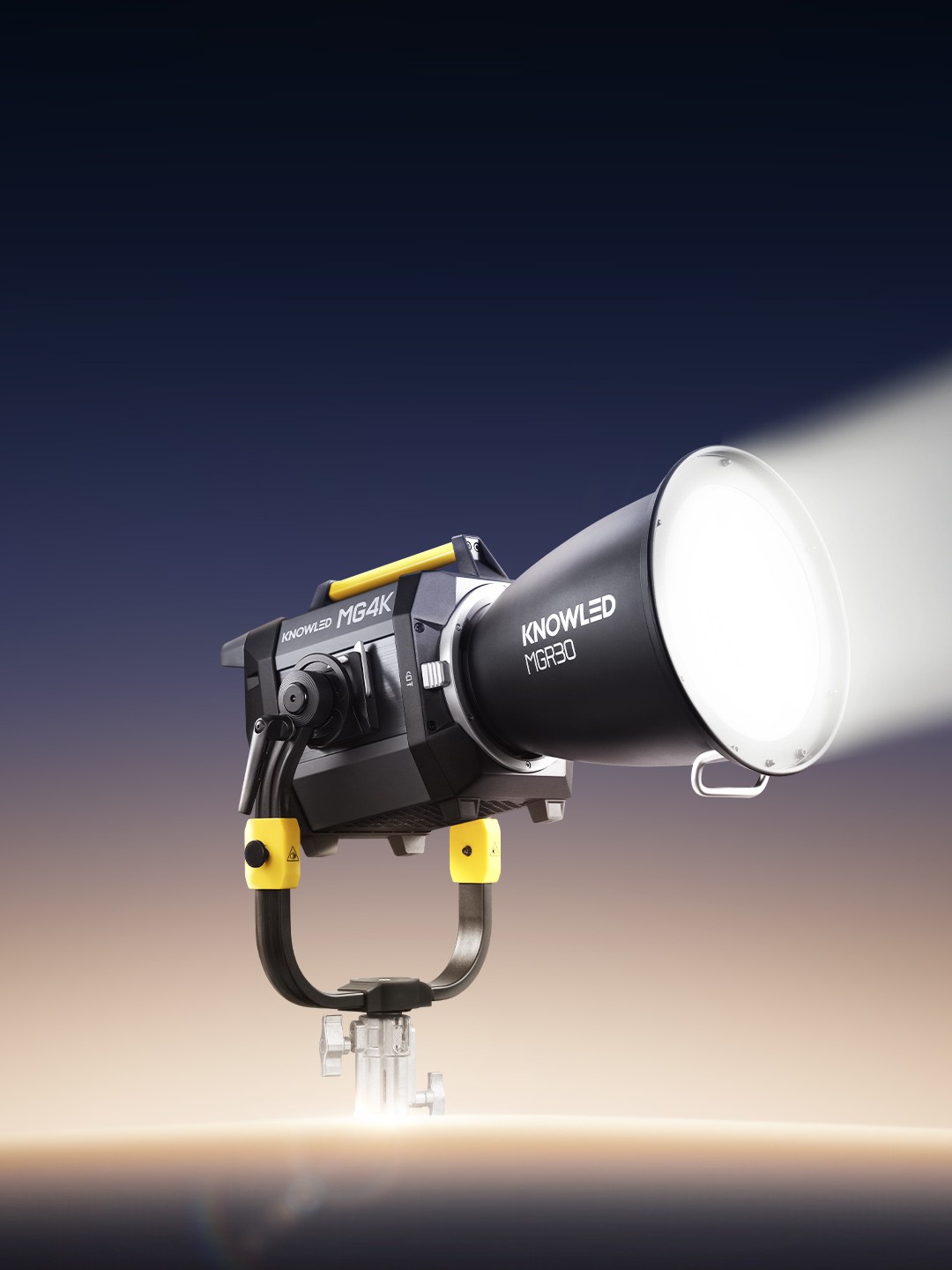

The Knowled MG4K is a professional-grade bi-color LED light designed for high-output film, broadcast, and studio applications. Despite its compact and lightweight form factor, it delivers light output comparable to a traditional 4K HMI source while consuming only half the power. The lighting unit incorporates an advanced COB (chip-on-board) LED with a small 63mm emitting area, achieving industry-leading optical efficiency and luminous efficacy.

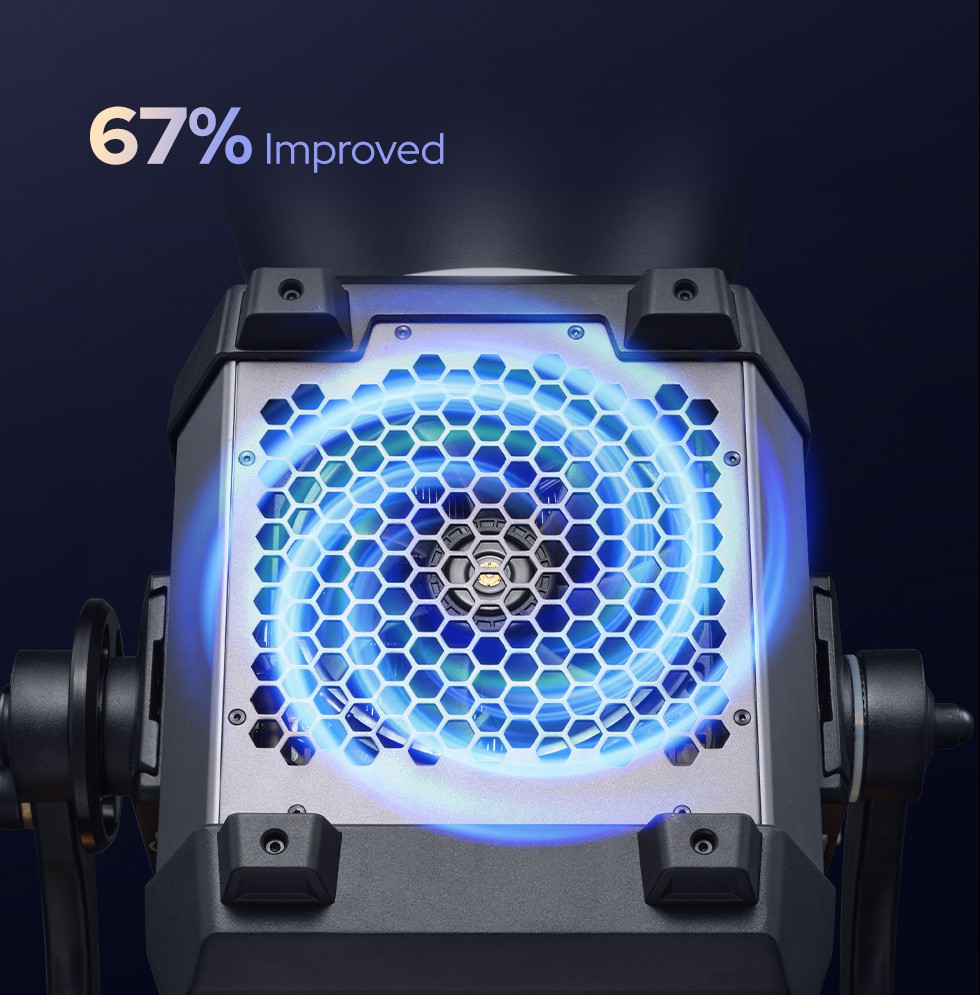

Featuring a versatile color temperature range from 2800K to 10,000K, the MG4K enables precise color tuning with a green/magenta adjustment range of ±100%. This flexibility allows for seamless matching with different light sources and creative lighting effects, supported by a dimming system capable of 0.1% increments for smooth brightness control. An advanced heat dissipation system improves cooling efficiency by approximately 67%, which ensures stable performance during prolonged use and extends the overall service life of the fixture.

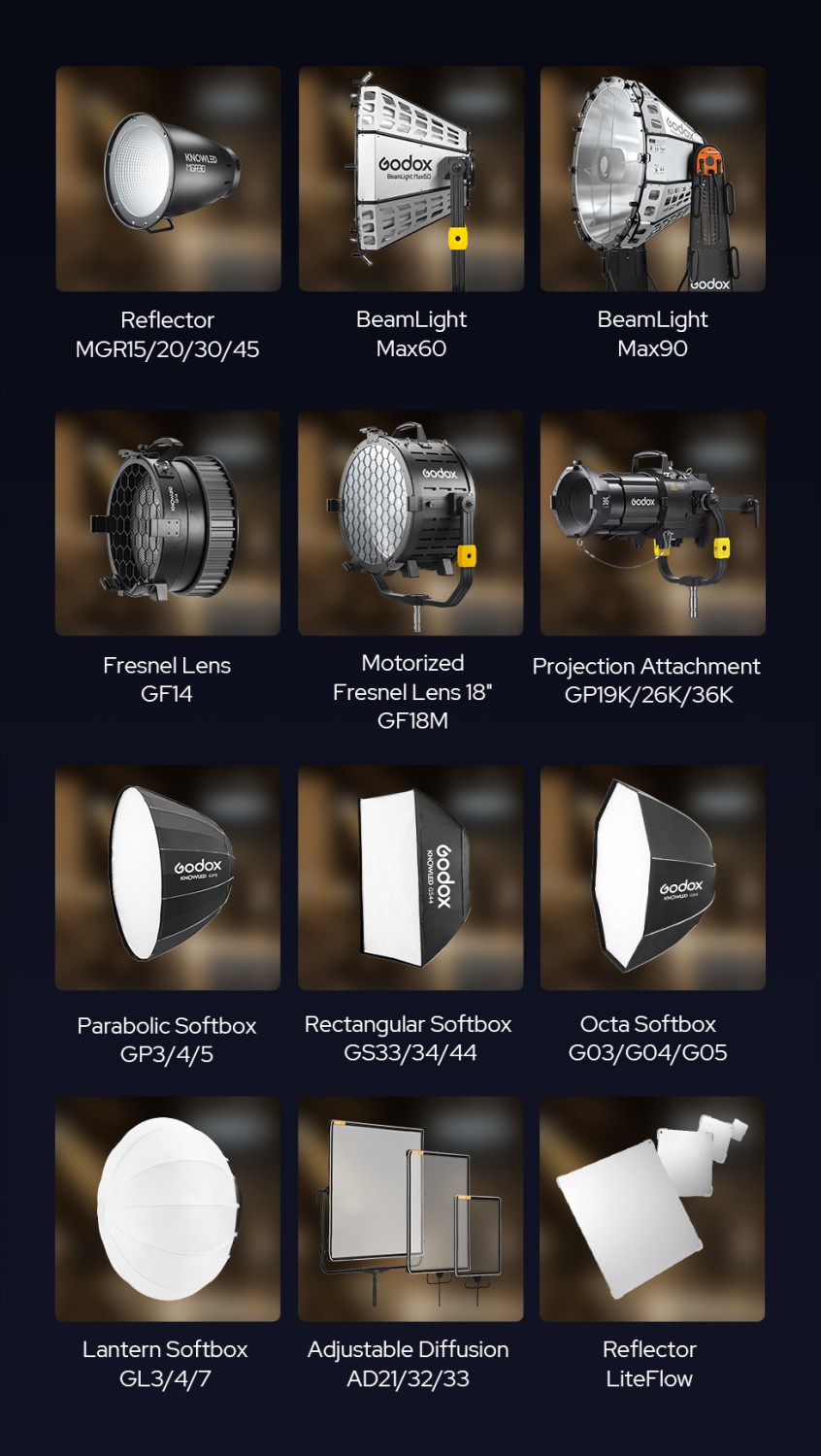

Its design is built around the patented G-Mount ecosystem, offering compatibility with over 16 professional modifiers. These include reflectors, Fresnel lenses, Beamlights, projection attachments, softboxes, Liteflow units, and adjustable diffusion accessories, giving cinematographers and technicians extensive control over light shaping and distribution. The light body weighs roughly 10 kilograms, and with the yoke attached, it weighs about 12.5 kilograms, making it easier to rig, transport, and position on set compared to much heavier traditional HMIs.

Comprehensive Technical Specifications

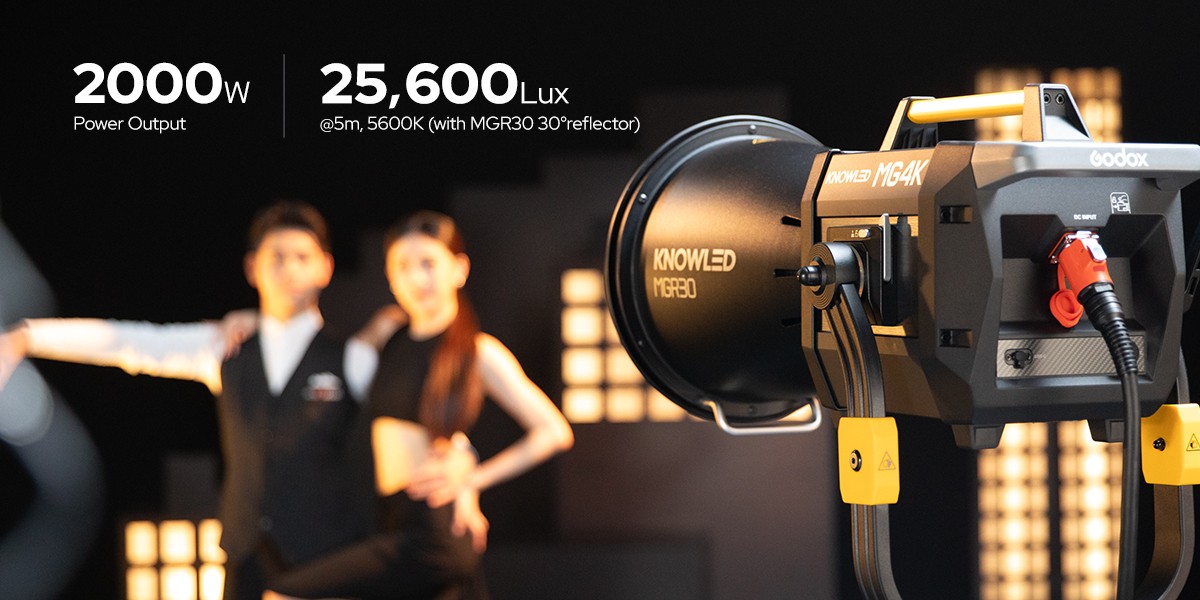

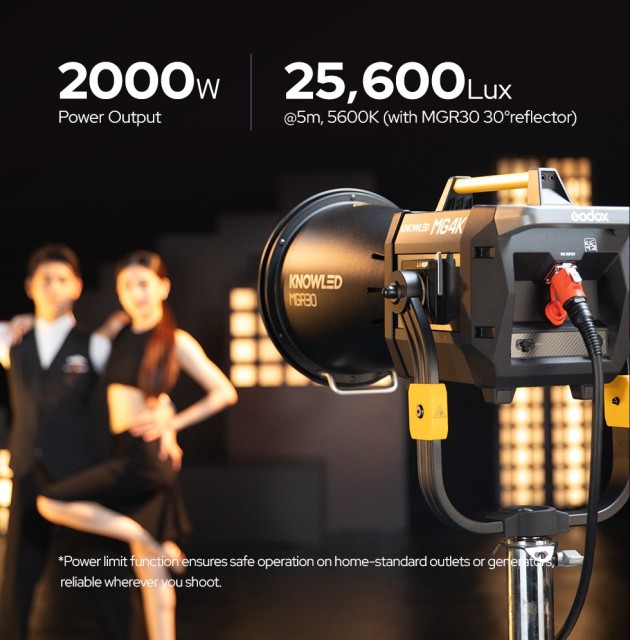

• Power Consumption: 2000 Watts AC input, suitable for 100V–240V 50/60 Hz power supplies

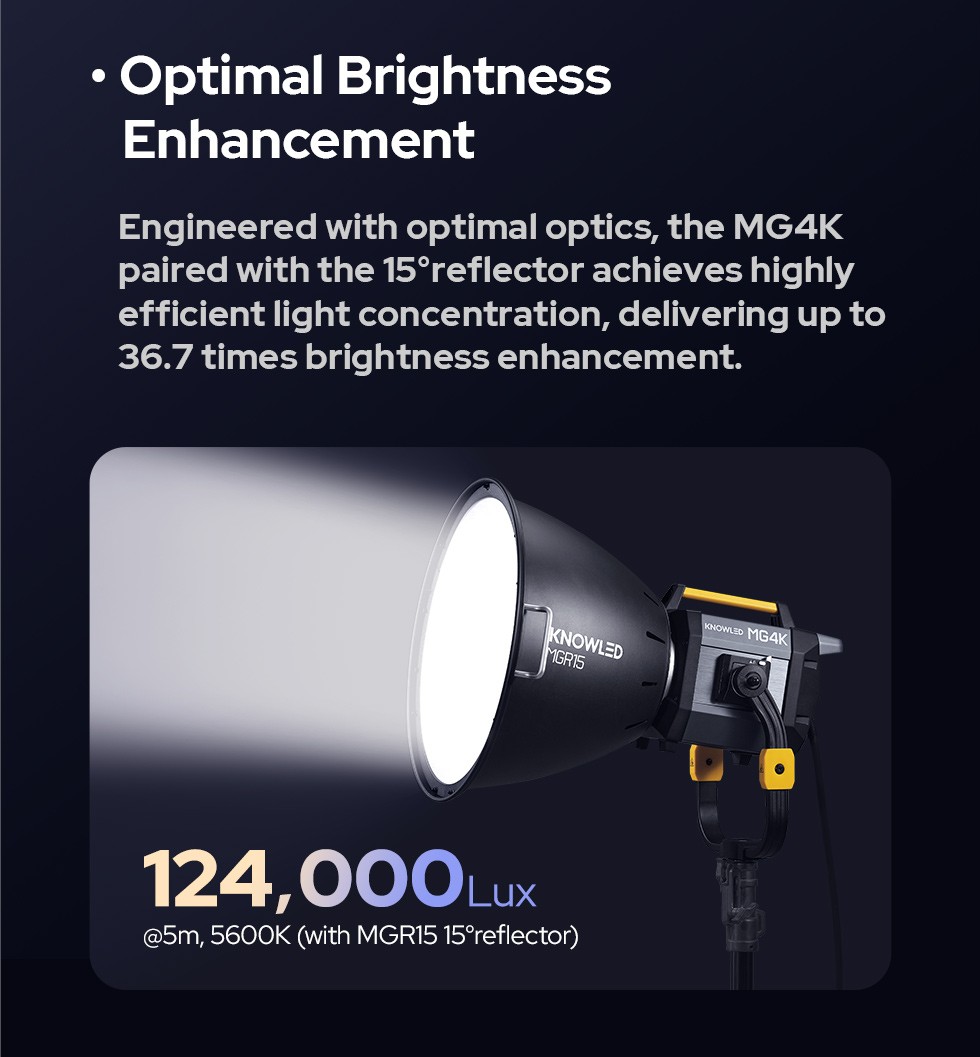

• Light Output: Up to 640,000 lux at 1 meter with a 30° reflector; up to 124,000 lux at 5 meters with a 15° reflector
• Color Temperature Range: Continuous adjustment from 2800K (tungsten) to 10,000K (daylight)
• Green/Magenta Shift: ±100% for fine color balance correction
• Brightness Control: Stepless dimming from 0.0% to 100.0% with multiple dimming curves (linear, S-curve, exponential, logarithmic)
• Color Rendering Index (CRI): Approximately 97 for highly accurate color rendition
• TLCI (Television Lighting Consistency Index): Approximately 98, ensuring excellent color fidelity for broadcast applications

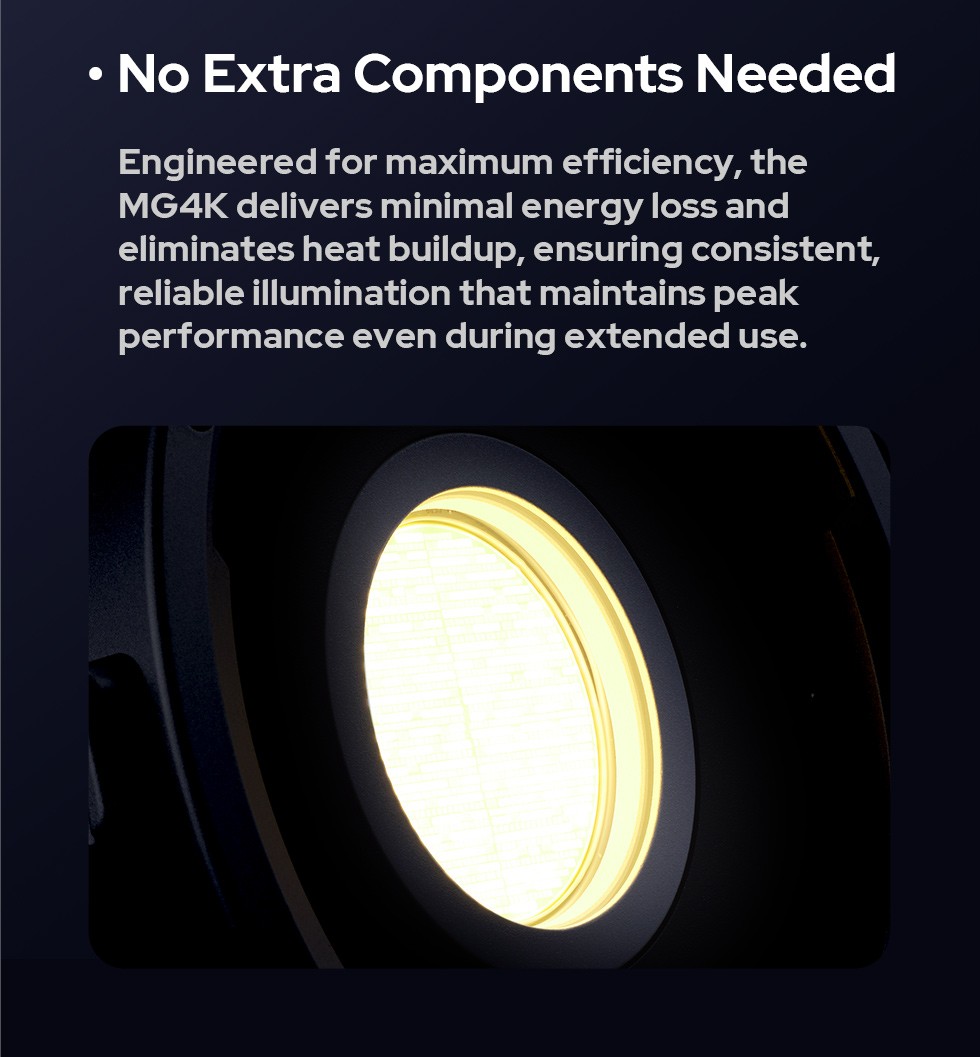

• Cooling System: Advanced passive and active cooling enabling a 67% faster heat dissipation compared to traditional units

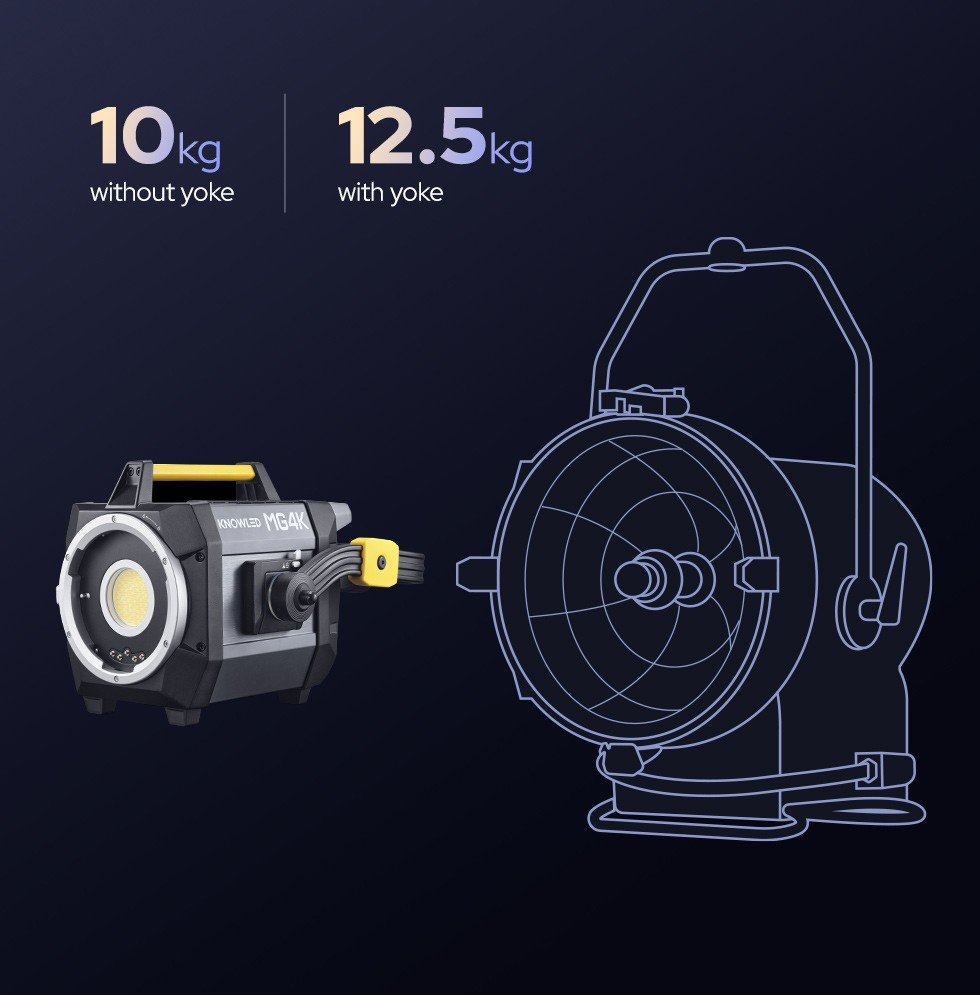

• Weight: Approximately 10 kg for the light body without accessories; 12.5 kg with yoke
• Control Interfaces: Wired and wireless DMX/RDM, CRMX, Ethernet, Bluetooth, and onboard user interface for seamless integration and remote operation
• Ingress Protection: Rated IP65 for dust and water resistance, suitable for challenging production environments
• Dimensions: Light body approximately 265 x 339 x 300 mm (10.43 x 13.35 x 11.81 inches) without accessories
• Additional Features: Multiple built-in FX modes for creative lighting effects, USB-A port for firmware upgrades and additional power supply

Design and Usability

The Knowled MG4K incorporates a robust, weather-resistant metal housing with a compact footprint that facilitates quick setup and breakdown workflows. The yoke is manually operable, allowing precise tilt and aiming adjustments. Its integrated digital controls and versatile connectivity options enable full remote dimming, color tuning, and mode selection either from a physical controller or through wireless protocols, enhancing its suitability for complex multi-light setups.

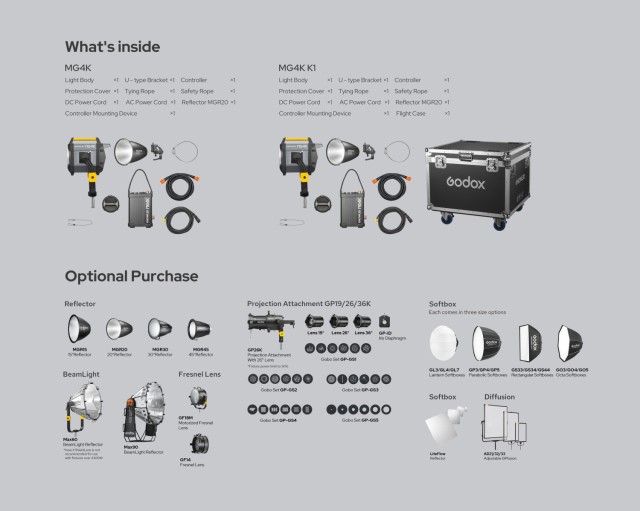

Included in the package is a protective paper box designed to safely store and transport the unit, emphasizing environmental consciousness with sustainable packaging. The combination of high power output, efficient energy consumption, precise color control, and modular accessory compatibility make this light an optimal choice for diverse professional lighting requirements in studios and on location.
