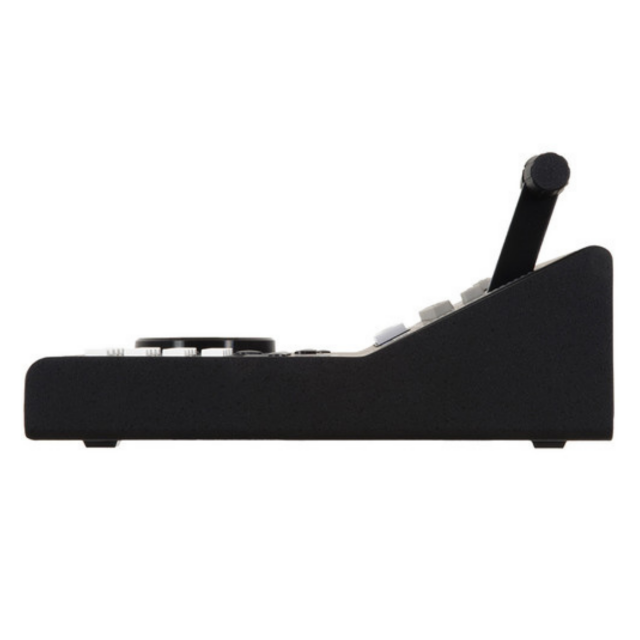

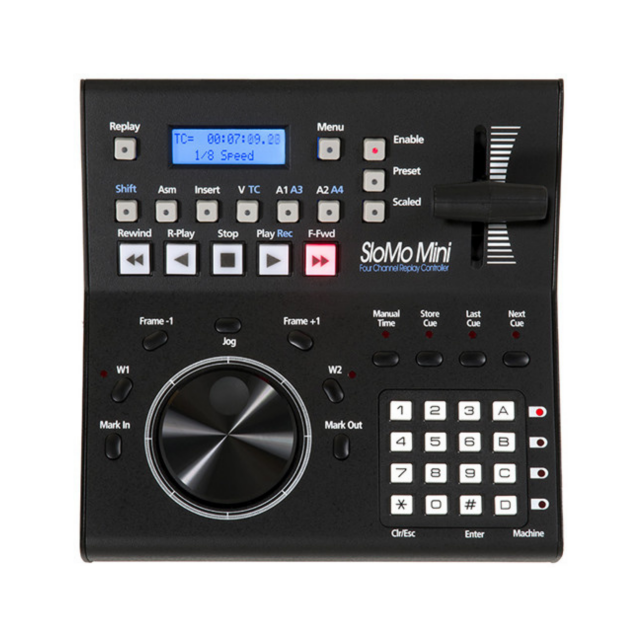

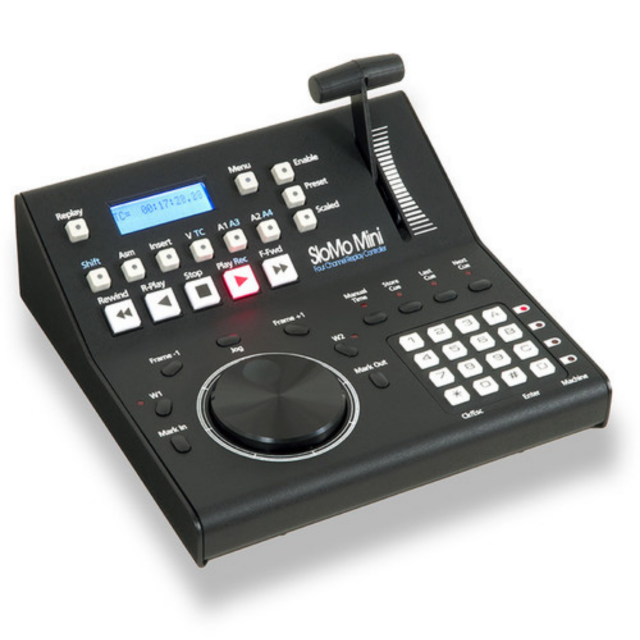

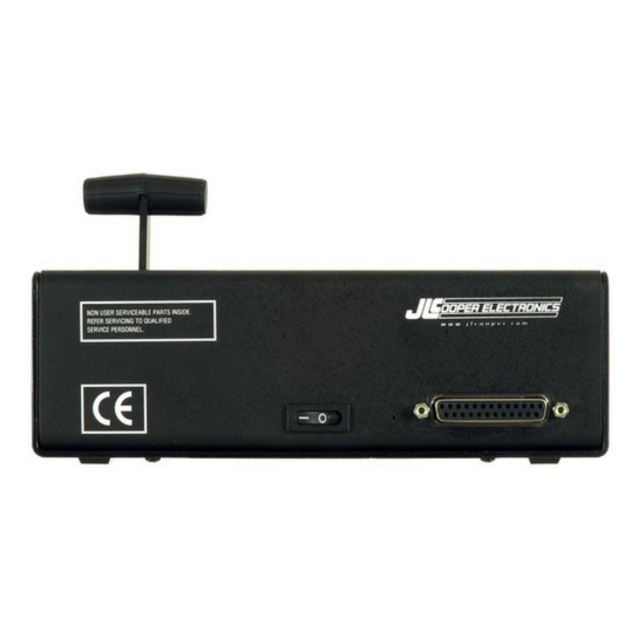

JLCooper SloMo Mini Four Channel Replay Controller

Designed for news, sports, scoreboard, and other slow-motion editing scenarios, the JLCooper SloMo Mini is an instant-replay controller capable of interfacing with up to four VTR decks simultaneously via RS-422 connections. Using the programmable jog wheel or numeric keypad, specific footage can be cued and then manipulated with the T-bar in real-time. Using the included 4-way breakout/power cable, the SloMo Mini is compatible with many standard VTR decks and servers that support the RS-422 control protocol including the AJA KiPro, Blackmagic Design HyperDeck Studio, and VideoDevices PIX 250i, 260i, and 270i. Further expansion via separately available Gangway 16 and Gangway 32 boxes allow for simultaneous control of many more decks than with the standard included cable.

More information

1 800 € with VAT 1 500 € without VAT
-+
Availability
7-14 days
Manufacturer
Free transport when purchasing this product
SKU:
SloMo Mini RS-422
Add to Compare
Product description

Product description

Designed for news, sports, scoreboard, and other slow-motion editing scenarios, the JLCooper SloMo Mini is an instant-replay controller capable of interfacing with up to four VTR decks simultaneously via RS-422 connections. Using the programmable jog wheel or numeric keypad, specific footage can be cued and then manipulated with the T-bar in real-time. Using the included 4-way breakout/power cable, the SloMo Mini is compatible with many standard VTR decks and servers that support the RS-422 control protocol including the AJA KiPro, Blackmagic Design HyperDeck Studio, and VideoDevices PIX 250i, 260i, and 270i. Further expansion via separately available Gangway 16 and Gangway 32 boxes allow for simultaneous control of many more decks than with the standard included cable.

  • Simultaneous Control of up to 4 VTRs or DDRs via standard 9 pin (P2) protocol
  • Simultaneous Control of up to 16 VTRs or DDRs with the addition of the separately available Gangway16 or
  • Gangway32
  • 4 RS-422 serial ports
  • T-Bar control for slow motion control using Shuttle, Jog or Variable Play commands
  • Dynamic slow motion replays directly accessed from integrated T-Bar mechanism
  • User programmable T-Bar limits and behavior
  • Full size numeric keypad to enter and recall cue locations and timecode
  • Easy to read 2 line x 16 VF Display
  • Capacity to store 1000 cue points or 400 in and out points with varispeed
  • Ability to transfer cues to/from another SloMo Mini or computer for backup or editing
  • 2 user assignable buttons
  • Log operation for QC Applications
  • 16 variable replay speeds
  • Controls most VTRs and hard disk based systems
  • Direct support for Doremi Video Servers
  • Direct support for Odetics compatible video servers

Parameters

Parameters

Manufacturer: JLCooper
Category: Control panels
PACKAGE CONTENT

In the box:

  • JLCooper SloMo Mini Four Channel Replay Controller

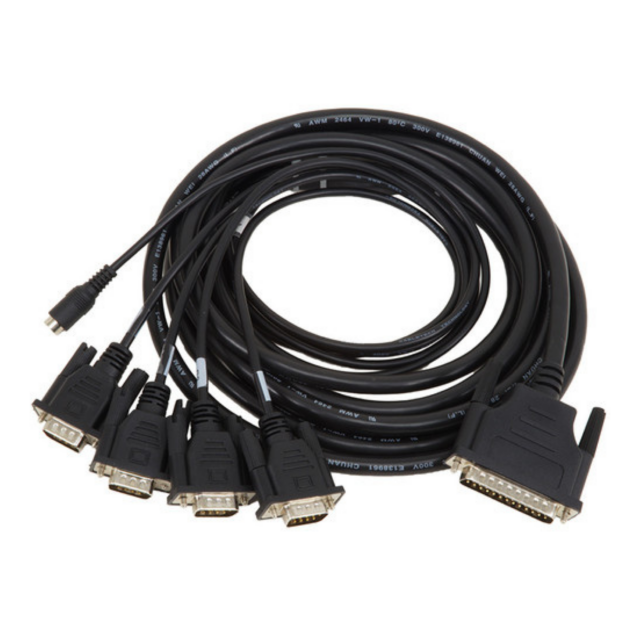

  • 10' 4-Channel Breakout/Power Cable
