Insta360 Connect video bar

The Insta360 Connect Video Bar is a professional-grade conferencing solution with dual 4K cameras, a 14-microphone array, AI-powered speaker tracking, and superior audio performance up to 10 m. Ideal for small to medium meeting rooms, it ensures immersive, clear, and intelligent video and audio communication.

More information

2 439 € with VAT 2 015.7 € without VAT
-+
Availability
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Insta360 Connect Video Bar is a professional-grade conferencing solution with dual 4K cameras, a 14-microphone array, AI-powered speaker tracking, and superior audio performance up to 10 m. Ideal for small to medium meeting rooms, it ensures immersive, clear, and intelligent video and audio communication.

Upgrade your virtual meetings with the Insta360 Connect Video Bar, a cutting-edge video conferencing device designed for small to medium-sized rooms. Equipped with dual 4K cameras—a wide-angle and telephoto lens on a gimbal—the Connect captures sharp group shots and detailed individual views simultaneously. Advanced AI algorithms provide multi-modal speaker tracking, ensuring the active speaker stays centered while Adaptive Audio and a 14-microphone array capture voices clearly up to 10 m away, eliminating noise and echoes for a natural, immersive sound experience.

The video bar also features Gallery Mode to display every participant equally, and Privacy Mode to instantly cover the lens, tilt the gimbal down, and mute audio when needed. Compatible with all major online meeting platforms, Insta360 Connect delivers plug-and-play operation via USB-C or HDMI, making professional-quality conferencing simple and reliable.

Key Features

  • Dual 4K Cameras: Wide-angle and telephoto gimbal cameras with 48 MP sensors and 3× digital zoom

  • AI Speaker Tracking: Keeps the active speaker centered and in focus

  • Superior Audio: 14-microphone array with 10 m pickup range and Adaptive Audio noise reduction

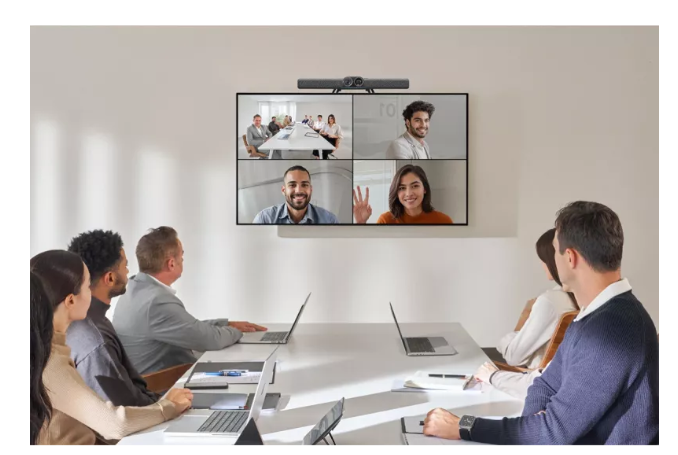

  • Gallery Mode: Individual windows for all participants

  • Privacy Mode: Instant lens cover, gimbal tilt, and mic mute

  • Platform Compatibility: Works with all major video conferencing software

  • Connectivity Options: USB-C 3.0, USB-A, HDMI in/out, Ethernet, Wi-Fi, Bluetooth 5.1

PACKAGE CONTENT

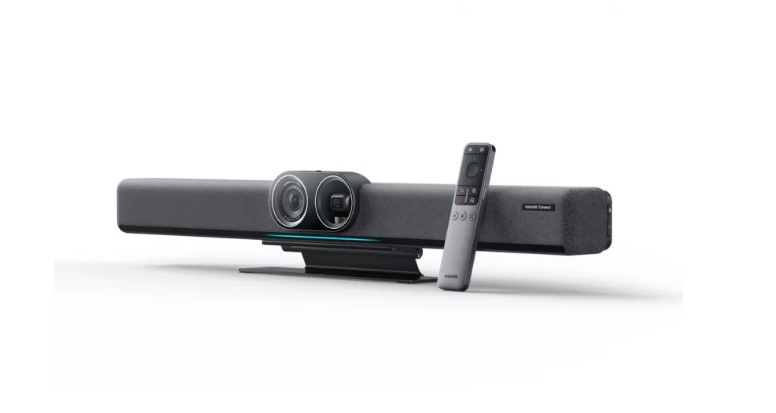

  • 1 × Insta360 Connect Video Bar

  • 1 × Table Stand

  • 1 × Remote Control

  • 1 × USB-C Cable (1.8 m)

  • 2 × HDMI Cables (1.8 m)

  • 1 × Power Adapter

SPECIFICATIONS

Video

  • Wide-angle camera: 4K 30 fps, 48 MP, 1/1.3″ sensor, 3× digital zoom

  • Telephoto gimbal camera: 4K 30 fps, 48 MP, 1/2.8″ sensor, 3× digital zoom

  • Tilt range: ±20°, Rotation: ±35°

  • Video coding: H.265, H.264 SVC, H.264 High Profile, H.264 AVC

Audio

  • Microphones: 14-array

  • Voice pickup: up to 10 m

  • Speaker: 1 × 20 W rated, 25 W max

  • Adaptive Audio for noise reduction

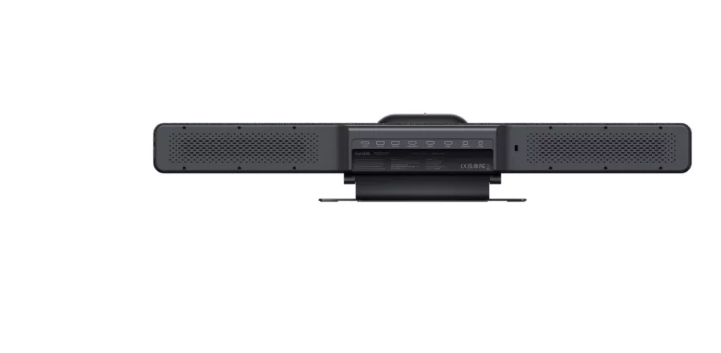

Connectivity & Ports

  • LAN: 10/100/1000 Mbps Ethernet

  • Wi-Fi: 2.4 GHz / 5 GHz

  • Bluetooth 5.1

  • HDMI: 1 input, 2 output

  • USB-A: 2.0 & 3.0

  • USB-C 3.0, DC power 12 V/7 A, Gigabit Ethernet, Security slot

Physical

  • Dimensions: 685 × 77 × 86.1 mm

  • Weight: 2.27 kg

  • Operating temperature: 0 °C to 35 °C

  • Storage temperature: -40 °C to 70 °C

  • Humidity: < 90%

Parameters

Parameters

Manufacturer: Insta360
Category: Compact cameras

Main parameters

Camera Sensor size1/1,3"
Zoom3x

Other parameters

FPS4K 30fps
