Insta360 Bike Computer Mount for Independent Handlebars

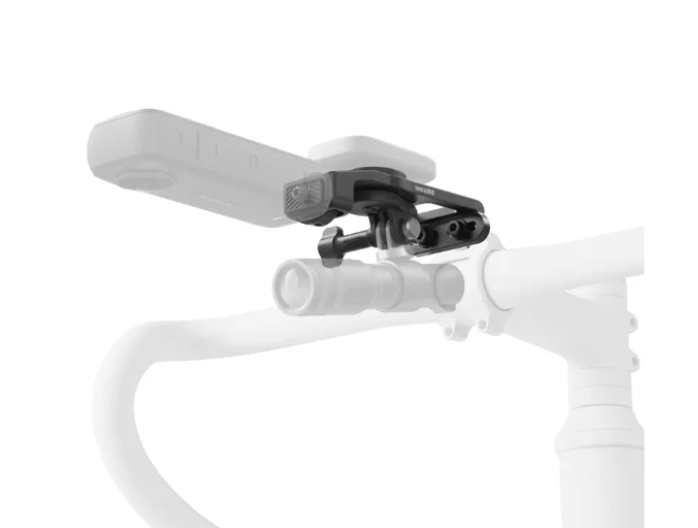

Keep an Insta360 camera and a supported bike computer together on a bicycle with independent handlebars. This Bike Computer Mount fits a pair of M5 mounting holes spaced 11–39 mm center to center; it is not for integrated cockpits or a one-bolt stem. Four computer bases are included for Garmin, Wahoo, Bryton and Giant devices. The mount provides a 1/4-inch screw and a three-prong camera mount, with a maximum combined load of 500 g.

Choose the supplied 40 mm or 30 mm bolts and matching screw posts to suit the threaded depth. Tighten both bolts to 5 N·m, or follow the handlebar maker’s lower specified torque. Before each ride, check the fasteners and camera. Insta360 recommends use on flat roads at speeds up to 60 km/h; bumpy roads, including mountain roads, are not recommended. Do not attach a selfie stick.

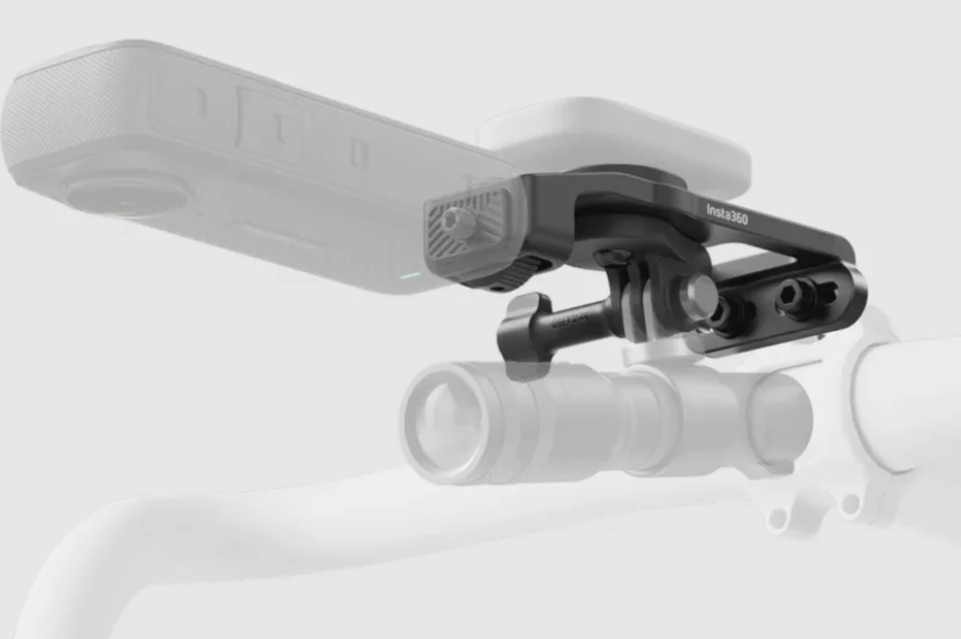

Camera and bike computer in one cockpit

Camera and bike computer together

Four included computer bases fit Garmin, Wahoo, Bryton and Giant bike computers. Attach a camera directly using the 1/4-inch screw or three-prong mount; selfie sticks are not supported.

Ride footage

For flat roads

Mount a camera beside your bike computer and keep ride data visible while recording. Insta360 recommends flat roads at up to 60 km/h; bumpy and mountain roads are not recommended. Do not exceed the 500 g total load.

Check compatibility before installation

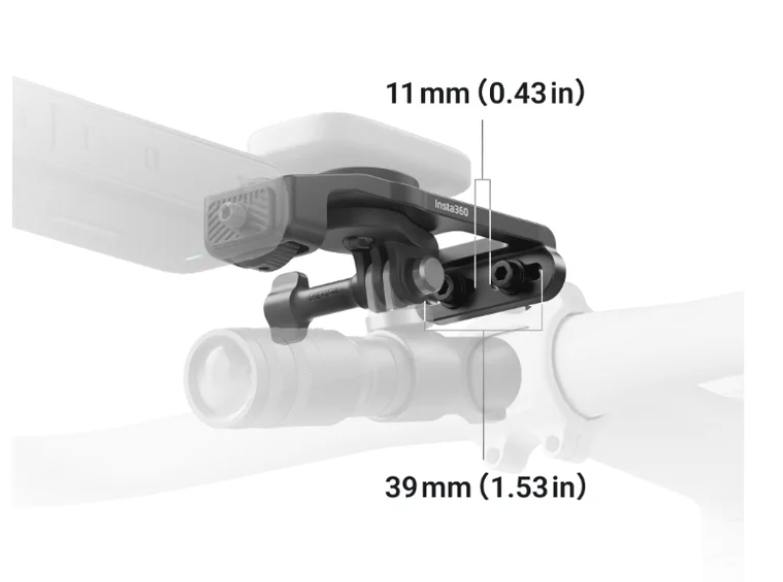

11–39 mm bolt spacing

This independent-handlebar version uses two M5 holes. Choose the supplied 30 or 40 mm bolts and matching screw posts to suit the threaded depth. Tighten both bolts to 5 N·m or follow the handlebar maker’s guidance, then check the camera and fasteners before riding.
