Infinitek L-5.5CUHWS Flexible 12G-SDI Cable, BNC-BNC 65m

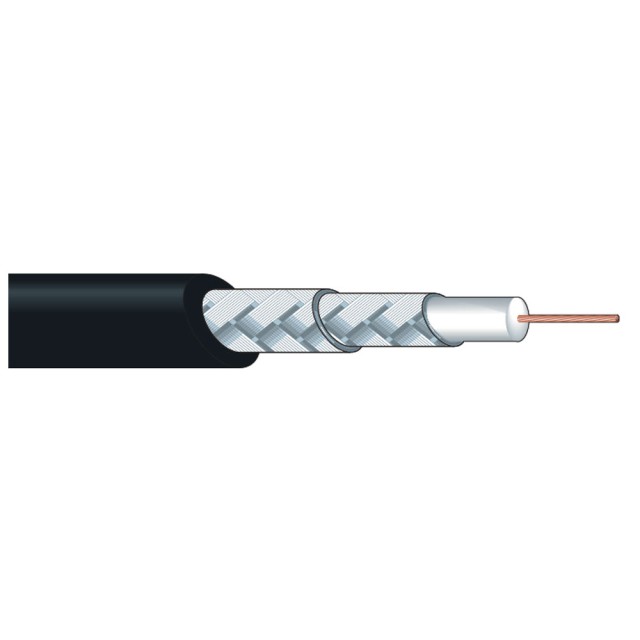

Coaxial cable specially designed for mobile 12G-SDI applications with excellent resistance to repeated bending. The cable has a stranded center conductor and double braided "High-density" shielding with high density and thick foam insulation.

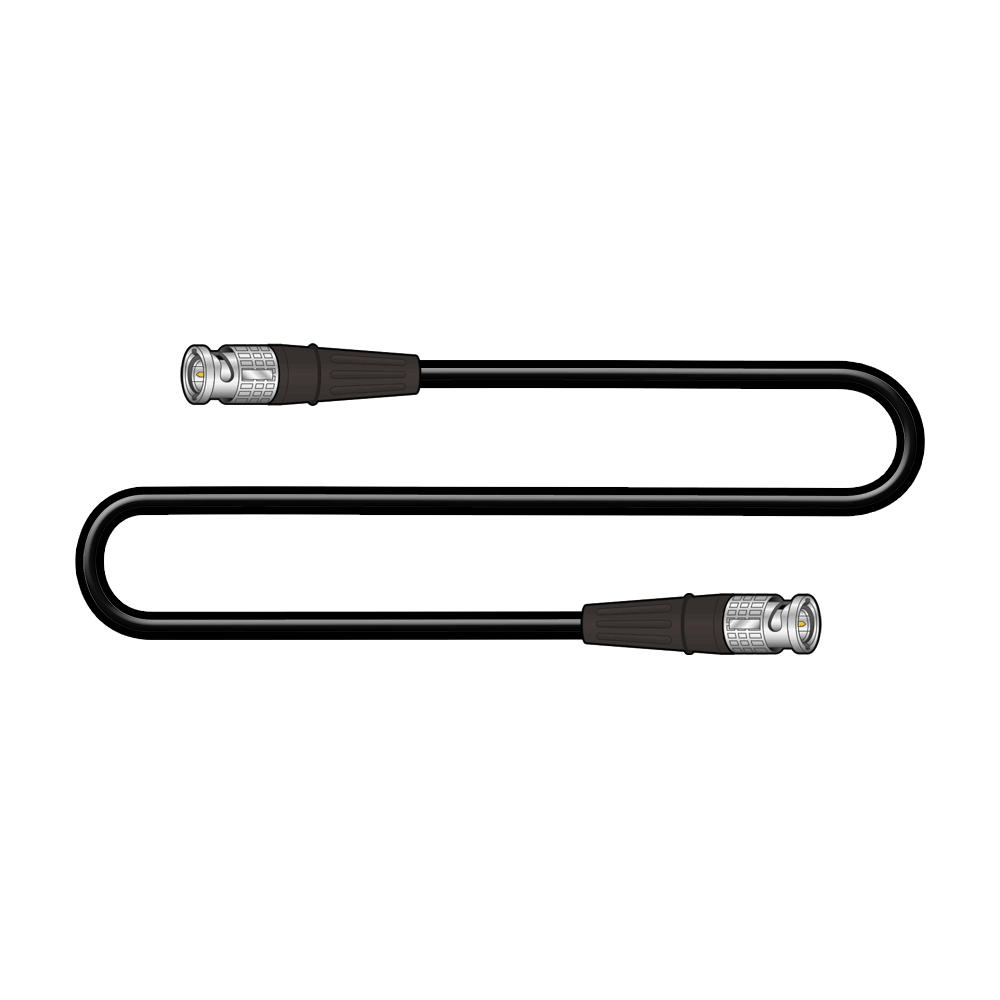

The cable has a stranded center conductor and double braided high-density shielding with thick foam insulation. Both ends feature Canare BCP-D55UHW crimp BNC (M) connectors and optional Canare CB055W color caps.

Canare L-5.5CUHWS cable specifications:

• Standard lengths: 100/200/300m
• Sheath diameter (total diameter) in mm: 8.1
• Cable weight in kg/100m: 8.7
• Central conductor - number and diameter of strands in mm: 7/16
• Total diameter of central conductor in mm: 1.30
• Foam dielectric - diameter in mm: 5.56
• Resistance of central conductor in Ω/100m: 1.4
• Outer conductor resistance in Ω/100m: 0.8
• Temperature range: -30°C ~ +60°C
• Static capacitance in pF/m:54
• Attenuation in dB/100m: 57.0 / 6GHz

Maximum transmission distance depending on video format
