Infinitek L-4E6S Star Quad microphone cable 6.0 mm, XLR (M) / XLR (F) 7.5m

Name: Infinitek L-4E6S mikrofonní Star Quad kabel 6,0 mm, XLR (M) / XLR (F) 7,5m
Brand: Infinitek
SKU: I-4E6-M/F-BLK-705
Price: 41 EUR
Availability: InStock

SKU: I-4E6-M/F-BLK-705

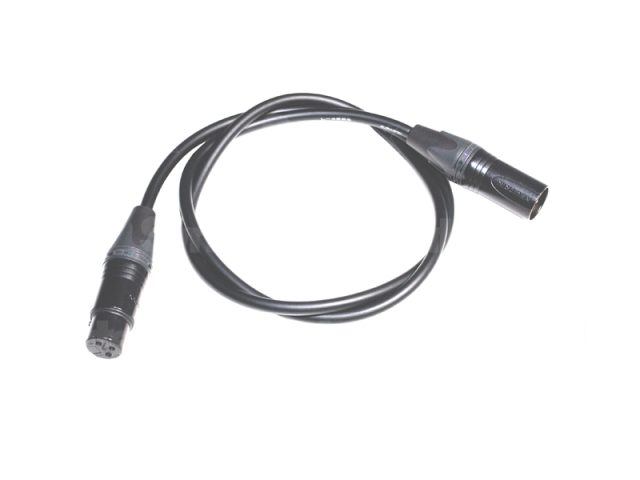

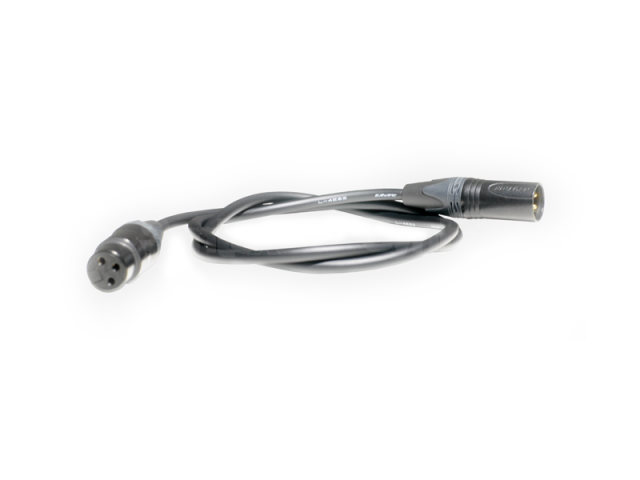

XLR (M) / XLR (F) microphone interconnect "Star Quad" cable made to order from high quality cable from Japanese manufacturer Canare and Neutrik connectors .

More information

41 € with VAT 33.88 € without VAT

Price history

Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow

In stock 2 pcs
Praha 2 pcs, Bratislava 1 pcs

SKU:
I-4E6-M/F-BLK-705

Price history

DESCRIPTION AND PARAMETERS
Alternative 13

Product description

XLR (M) / XLR (F) microphone interconnect "Star Quad" cable made to order from high quality cable from Japanese manufacturer Canare and Neutrik connectors .

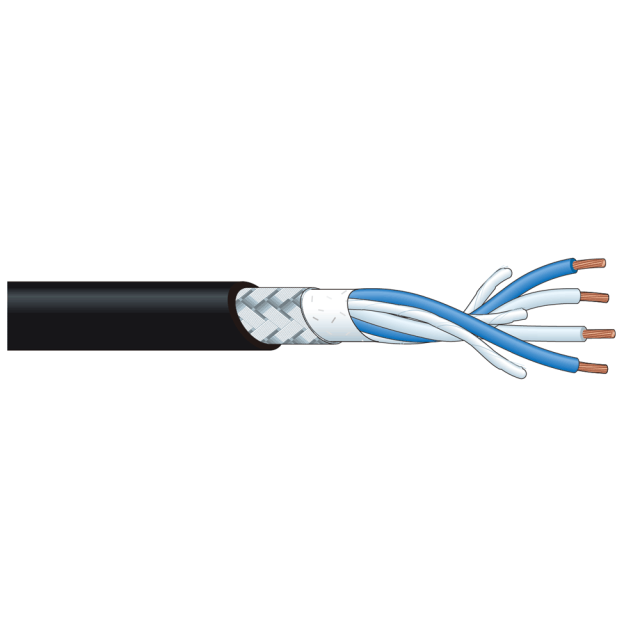

Canare L-4E6S is a symmetrical flexible "Star Quad" cable

Satin smooth to the touch and extra strong microphone cable with 6 mm outer diameter

Features:

Copper braided shielding
Flexible even in extremely cold weather
Cross-linked PE (polyethylene) insulation
Reduced handling noise
Suppressed EMI (electromagnetic interference) and RFI (radio frequency interference)

Specifications:

Standard manufactured lengths in (m): 100/200
Cable weight in kg/100m: 4.8
Sheath diameter (overall diameter) in mm: 6.0
AWG: 24
Material and thickness of outer insulation in (mm): PVC (1.12)
Breaking point in (°C): -49
Number and colour of conductors: 4 / 2 x blue, 2 x white
Number and diameter of cores per conductor in mm: 40/0.08
Shielding factor: >95%
Conductor resistance in Ω/100m: <9.8
Shielding resistance in Ω/100m: <3.0
Capacitance between blue and white conductors in pF/m: 150
Capacitance between conductors and shielding in pF/m: 185
Impedance in Ω: 44

Technical specifications of Neutrik XX-B connectors:

Capacitance: ≤ 4 pF
Contact resistance: ≤ 3 mΩ
Rated voltage 1min: 1,5 kVdc
Insulation resistance: > 10 GΩ
Rated current per 1 contact: 16 A
Rated voltage: 50 V
Cable diameter: 3.5 - 8.0 mm

Force required to connect connectors: ≤ 20 N
Force required to disconnect connectors: ≤ 20 N
Lifetime: > 1000 connection cycles
Conductor: max. 2.5 mm², max. 14 AWG
Soldering
Cable cap: Polyurethane
Contact surface treatment: 0.2 µm Au layer on 2 µm Ni
Contact material: Bronze (CuSn8)
Polyamide (PA 6.6 30% GR)
Lock: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Connector body: Zinc diecast (ZnAl4Cu1)
Connector body finish: black chrome

Parameters

Manufacturer:	Infinitek
Category:	Audio cables

Main parameters

Length	7.5m
Version	Flexible
Male / Female	Male - Female
Cable diameter	6.0mm
Colour	Black
Connector shape	Straight
Connector type	XLR 3-pin
Connector gender	Male · Female
