Infinitek L-3C2VS BLK BNC 0,3m

Name: Infinitek L-3C2VS BLK BNC 0,3m
Brand: Infinitek
SKU: I-3-M/M-BLK-03
Price: 10 EUR
Availability: InStock

SKU: I-3-M/M-BLK-03

Canare L-3C2VS BLK BNC (M-male)…

More information

10 € with VAT 8.26 € without VAT

Price history

Availability
Shipment day: 05. 11.

To be sent > 5 pcs
Bratislava > 5 pcs

SKU:
I-3-M/M-BLK-03

Price history

DESCRIPTION AND PARAMETERS

Product description

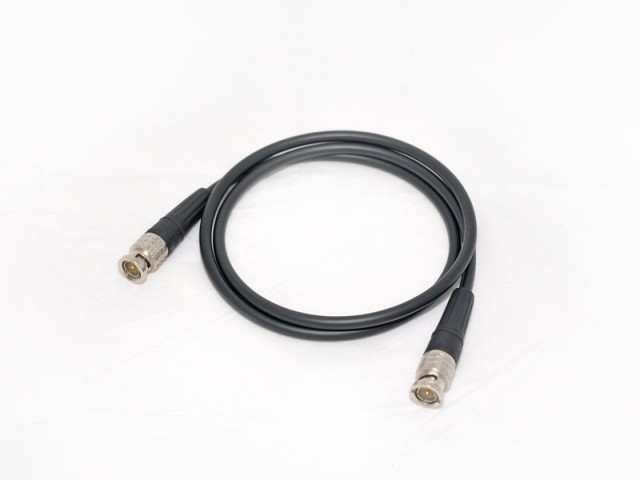

Canare L-3C2VS BLK BNC (M-male) / BNC (M-male) 0,3m

Canare L-3C2VS is a very lightweight and super flexible 75 ohm 5.5mm HD/SD-SDI coaxial cable with a stranded center conductor and a tightly woven shielded outer conductor. The L-3C2VS cable remains flexible even at low temperatures. There are Canare BCP-A3 crimp-on BNC (M) connectors on both ends and optional Canare CB03

caps.

Use of the Canare L-3C2VS flexible SDI cable:

HD/SD-SDI video
PAL & NTSC analog video
Satellite applications
TELCO
Test equipment
Rack cabling
Video Patch Cables
Interconnect Cables
Video Assist Cables

Maximum transmission distance of Canare L-3C2VS depending on video format
Data transfer rate:	143 Mbps	177 Mbps	270 Mbps	360 Mbps	540 Mbps	1.5 Gb/s
Specification:	SMPTE 259M	ITU-R BT.601	SMPTE 259M	SMPTE 259M	SMPTE 344M	SMPTE 292M
Usage:	nTSC composite	pAL composite	components 4:2:2	4:2:2 16x9 components	SDI	HD-SDI
Maximum cable length:	241m	218m	174m	150m	120m	46m

Parameters

Manufacturer:	Infinitek
Category:	SDI cables

Main parameters

Cable type	SDI
Length	0.3m
Version	Flexible
Connector type	BNC - BNC
Male / Female	Male - Male
Cable diameter	5.5mm
Colour	Black
Connector shape	Direct
Impedance	75 Ohm
