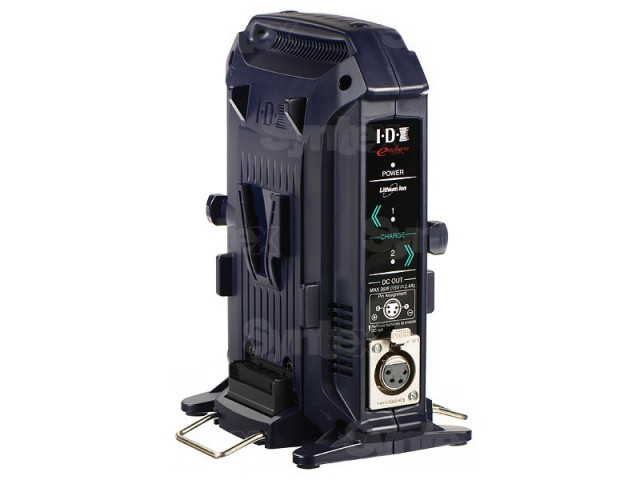

IDX VL-2X

IDX VL-2X is a 2-channel Fully Sequential Quick Charger with AC Power Supply Adaptor (36W DC @ 13.8V)

More information

320.65 € with VAT 265 € without VAT
-+
Availability
Shipment day: 01. 04.
To be sent 4 pcs
Bratislava 4 pcs
Product description

Product description

IDX VL-2X is a 2-channel Fully Sequential Quick Charger with AC Power Supply Adaptor (36W DC @ 13.8V)

Basic features of the IDX VL-2X charger:

  • Sequential 2-channel charging. The VL-2X will charge the first battery connected to one of the V-Mount channels, automatically switching to charge the second battery when the first is charged.
  • Using a 36W DC to DC voltage converter, a 36W XLR output is available for camera, light, or accessory use.
  • Compact and lightweight charger body (width - 87.4mm / weight - 430g)
  • Integrated tilting stand
  • Internal safety features protect both the battery and charger from serious damage in the event of using a defective or incorrect battery inserted into the charger.
  • Power supply using an additional 60W AC power supply..



Charging time of several batteries with the IDX VL-2X charger:

  Number of batteries to be charged
Battery model One Two
DUO-C190 7h 14h
DUO-150 5h 10h
CUE-D150 5h 10h
ELITE 4h 50m 7h 40m
E-HL10DS 3h 40m 7h 20m
DUO-C95 3h 30m 7h
DUO-95 3h 30m 7h
CUE-D95 3h 30m 7h
E-HL9 3h 20m 6h 40m
CUE-D75 3h 6h
NP-L7S 3h 6h



Technical specifications of IDX VL-2X Sequential Charger:

  • Input voltage: AC 100~240V 50/60Hz
  • Power: MAX 140VA
  • Fast charging mode current: 1.9A
  • DC Output :
  • Maximum DC output power: DC 15V/2.4A (Max 36W)
  • Battery Output : Battery Voltage via charger output/Maximum battery discharge current
  • operating Temperature : 0°C ~ 40°C
  • dimensions: 87 x 183.3 x 126.6 mm
  • weight: 430g
Parameters

Parameters

Manufacturer: IDX
Category: 14.4V chargers
