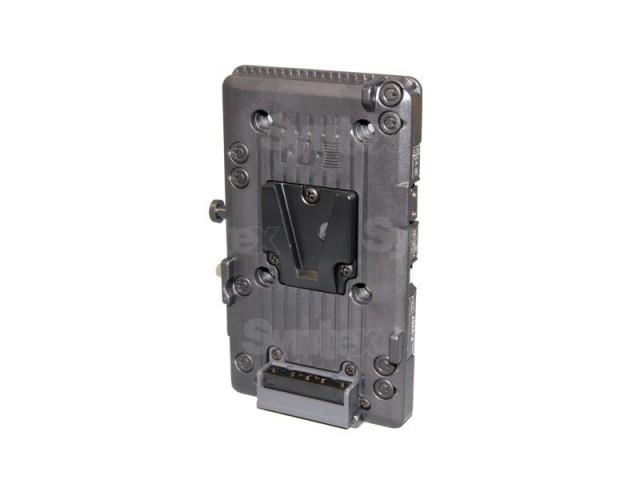

IDX P-V257

ENDURA V-Mount Plate with Dual 2-Pin D-Tap DC Out and Digi-View
P-V257 converts 12V to 5V/7.3V and uses ENDURA batteries.  Choose between the two voltages with a convenient power output switch located on the side below the D-Tap connector used for 5V/7.3V regulated power. Ancillary gear, such as lights, can be powered  via the second unregulated 2-Pin D-Tap on the opposite side of the plate. its unregulated battery throughput voltage output can be as high as 16.8V with IDX Li-Ion batteries.

TECHNICAL SPECIFICATION

• D-Tap Power Out (Primary):
• P-V212: 12V Regulated
• P-V257: 5V/7.3V Regulated
• P-V284: 8.4V Regulated
• D-Tap Power Out (Secondary):
• 50W Maximum (on-board lights, etc.)
• (Unregulated)
• Dimensions: 3.25 (W) x 5.59 (H) x 0.47 (D) inches
• Weight: 0.40 lbs. approx. (plate series)
