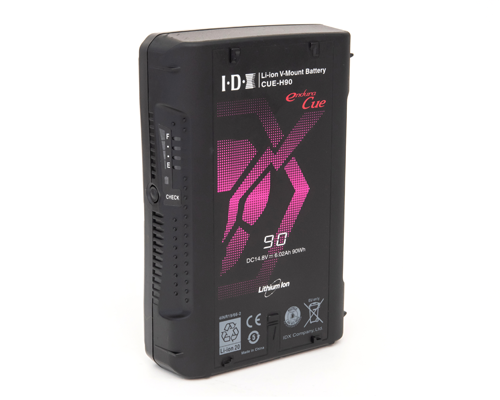

IDX CUE-H90

90Wh Li-ion V-Mount Battery with D-Tap output

Weighing only 610 grams with a 90Wh capacity and a built-in D-Tap connection capable of taking a 80W load for powering additional accessories, the CUE-H90 is the ideal power solution for small profile camera setups such as handheld gimbal and aerial systems.

TECHNICAL SPECIFICATION

• Battery Capacity: 14.8V, 6.02Ah, 90Wh*
• Max. Output Voltage: 16.8V DC
• Nominal Voltage: 14.8V DC
• Maximum Discharge Current: 7A / 85W
• D-Tap: 80W each
• End Voltage: 11.2V
• Battery Protection:
• Over charge (reset)
• Over discharge (reset)
• Over current (reset)
• Ambient Temperature:
• To charge: 0°C ~ 40°C (10°C ~ 30°C recommended)
• To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended)
• To store: -20°C ~ 50°C (-20°C ~ 20°C recommended)
• Dimensions: 97(W) x 146(H) x 39(D) mm
• Weight: 610g approx.
• *IDX measures capacity of lithium ion batteries as a minimum capacity
