Hollyland Solidcom BPK01 10-Slot Battery Charging Base

The Hollyland Solidcom BPK01 charging base charges ten Solidcom BPK01 beltpacks or ten individual batteries at once, ten beltpacks in 3.5 hours. Connected by an RJ45 cable to the Solidcom ANT01 antenna or the Geo Central Station, it also handles bulk pairing and delivers firmware and configuration updates. Two bases fit side by side on a 19" rack tray.

Charging and pairing in one

Simply slide the beltpack vertically into a slot: when the base is cascaded with an antenna, it pairs with the system after about 3 seconds and takes over the configuration. Indicators show the status – orange charging, green charged.

10 slots3.5 h62 WRJ4519" rack

62 W for ten beltpacks

Output 5.2 V / 1.15 A, total power 62 W; ten beltpacks are charged in 3.5 hours.

Cascading over LAN

The RJ45 port connects the base to the Solidcom ANT01 antenna or the Geo Central Station; a blue indicator confirms the cascade.

XLR power input

Power (DC) comes in through a 4-pin XLR connector; the USB-A port is used for firmware updates.

Rack-ready

M5 threaded holes in the bottom secure it to a standard 19" rack tray; two bases fit side by side.

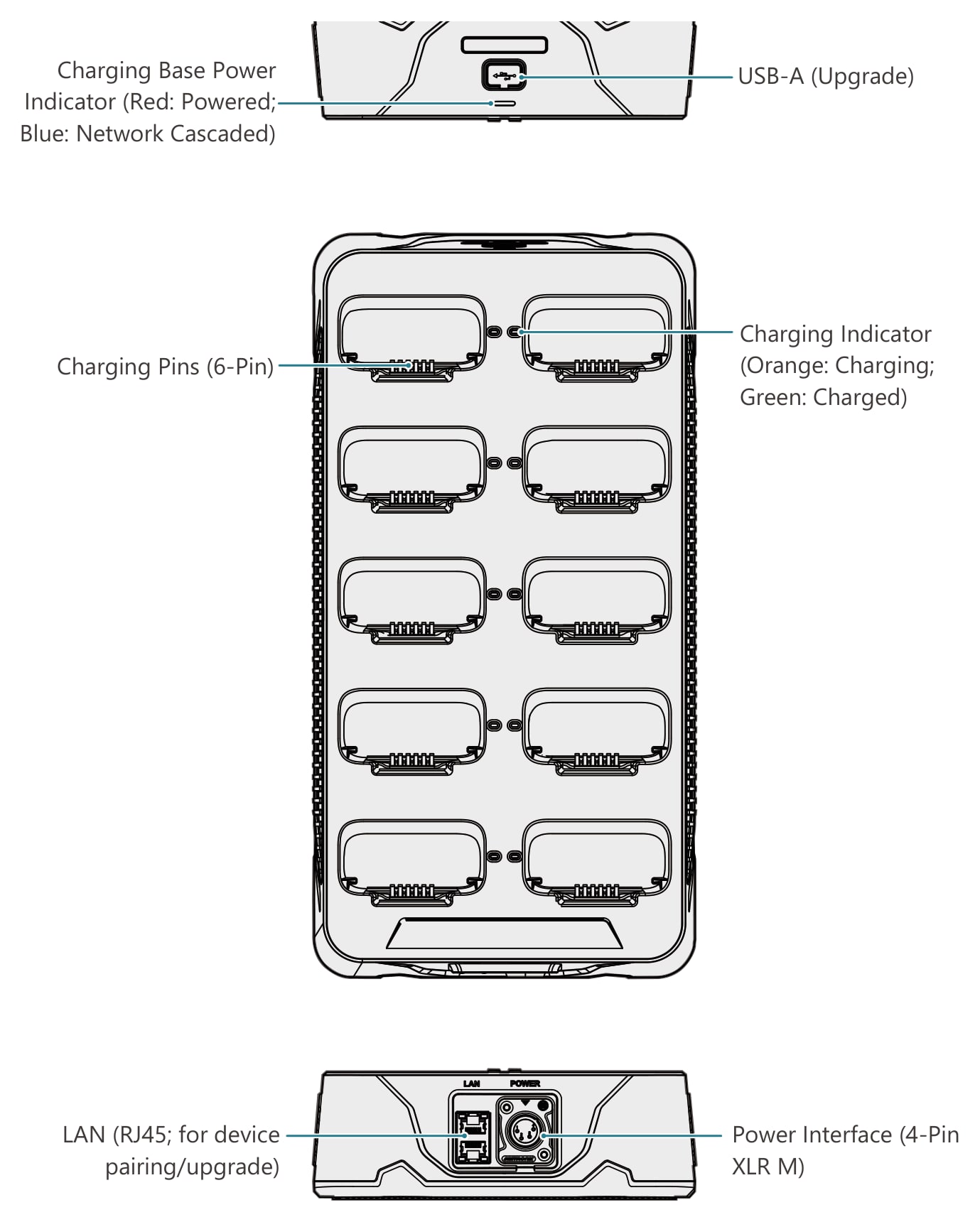

Interfaces and indicators

Ten slots with charging contacts, each with its own charging indicator. The front carries the power indicator and a USB-A port, the rear the LAN RJ45 port and the XLR power input.

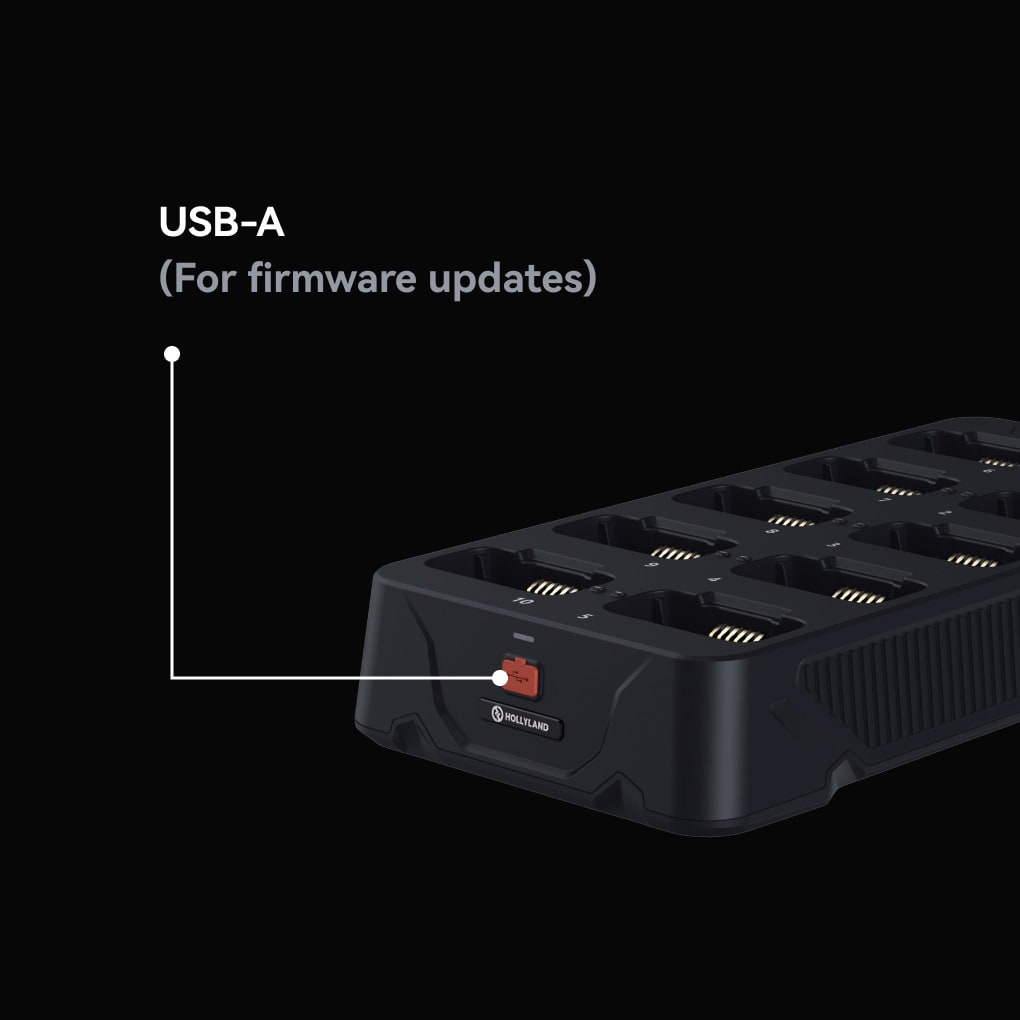

Firmware updates via USB-A

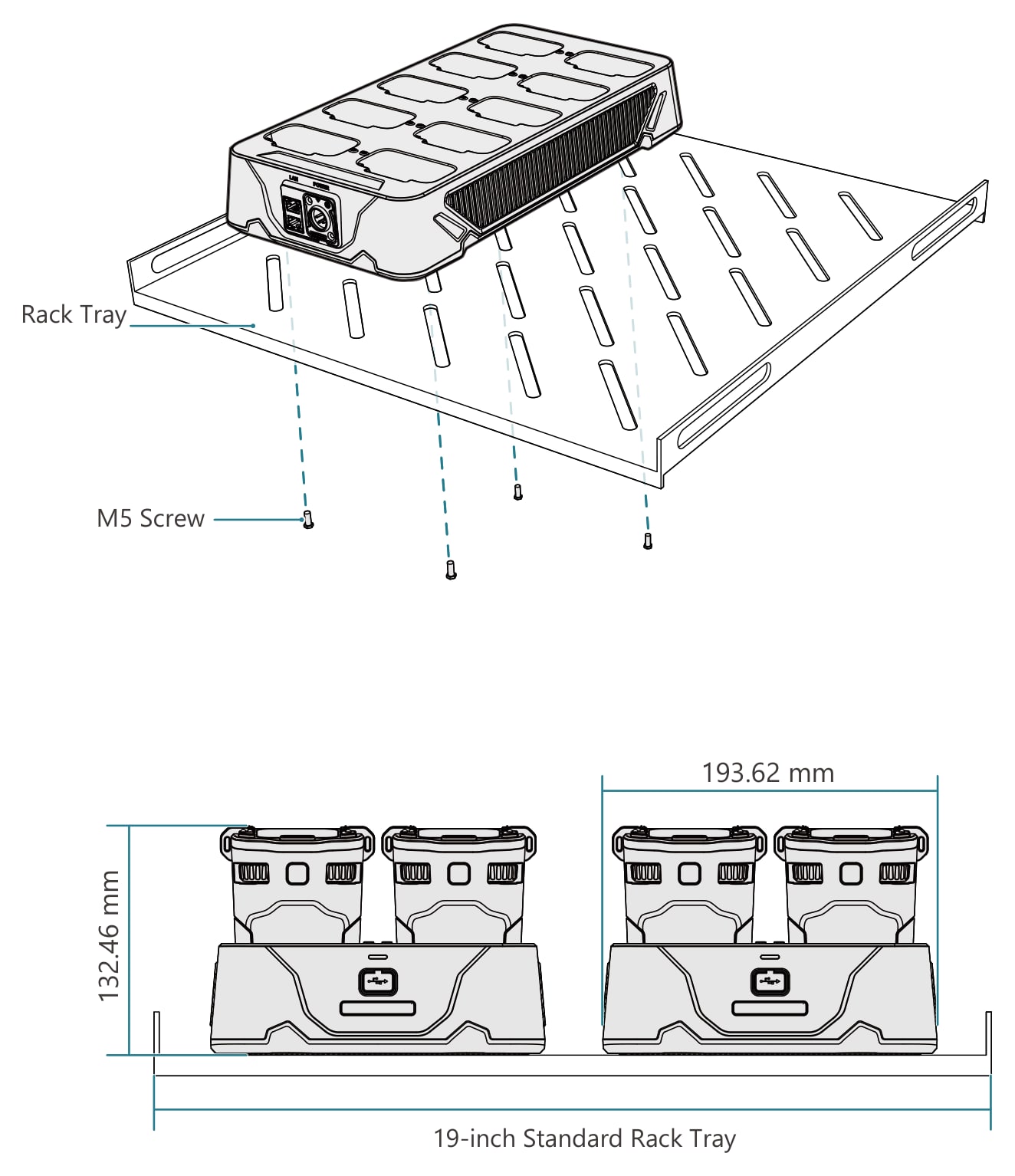

Rack mounting

M5 threaded holes in the bottom secure the base to a standard 19" tray; its 193.62 mm width lets two bases sit side by side. The height with beltpacks inserted is 132.46 mm.
