Godox Knowled Adjustable diffuser kit AD21 K2

The Godox AD21 K2 Adjustable Diffusion Panels are compact, motorized diffusion panels that let you seamlessly control light from hard to ultra-soft. With Level Mode for 0-100% diffusion, Light Reduction Mode for EV adjustments, and flicker-free performance up to 300fps, they offer versatile, professional lighting for any set. Powered via USB-C,…

More information

669 € with VAT 552.89 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

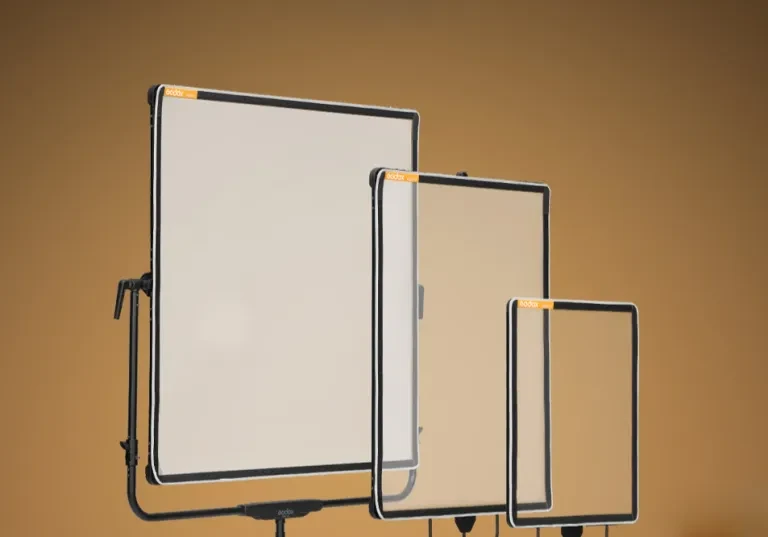

The Godox AD21 K2 Adjustable Diffusion Panels are compact, motorized diffusion panels that let you seamlessly control light from hard to ultra-soft. With Level Mode for 0-100% diffusion, Light Reduction Mode for EV adjustments, and flicker-free performance up to 300fps, they offer versatile, professional lighting for any set. Powered via USB-C, V-mount, or NP-F batteries, these foldable, weather-resistant panels deliver up to 20 hours of continuous use.

The Godox AD21 K2 Adjustable Diffusion Panels redefine on-set lighting with motorized, fully adjustable diffusion. Designed for photographers and videographers seeking precise control, the AD21 panels feature Level Mode for 0-100% diffusion adjustment and Light Reduction Mode for fine EV control (-0.1 to -2.0 EV), allowing effortless transitions from hard light to ultra-soft illumination. The panels operate flicker-free up to 300fps, powered by USB-C, V-mount, or NP-F batteries, delivering up to 20 hours of continuous operation from a single 100Wh battery.

Compact and collapsible, the lightweight, weather-resistant design (IP54) makes the AD21 ideal for on-location shoots, while the Velcro-attached diffusion fabric is easy to replace. Multiple control options include DMX, CRMX, Bluetooth app, and the AD00-01 controller with a built-in CRMX transceiver for stable wireless operation. Motorized diffusion adjustments expand creative possibilities, making these panels perfect for professional photography, video, and cinematic productions.

Key Features:
  • Compact, foldable, and lightweight design for portability and easy deployment

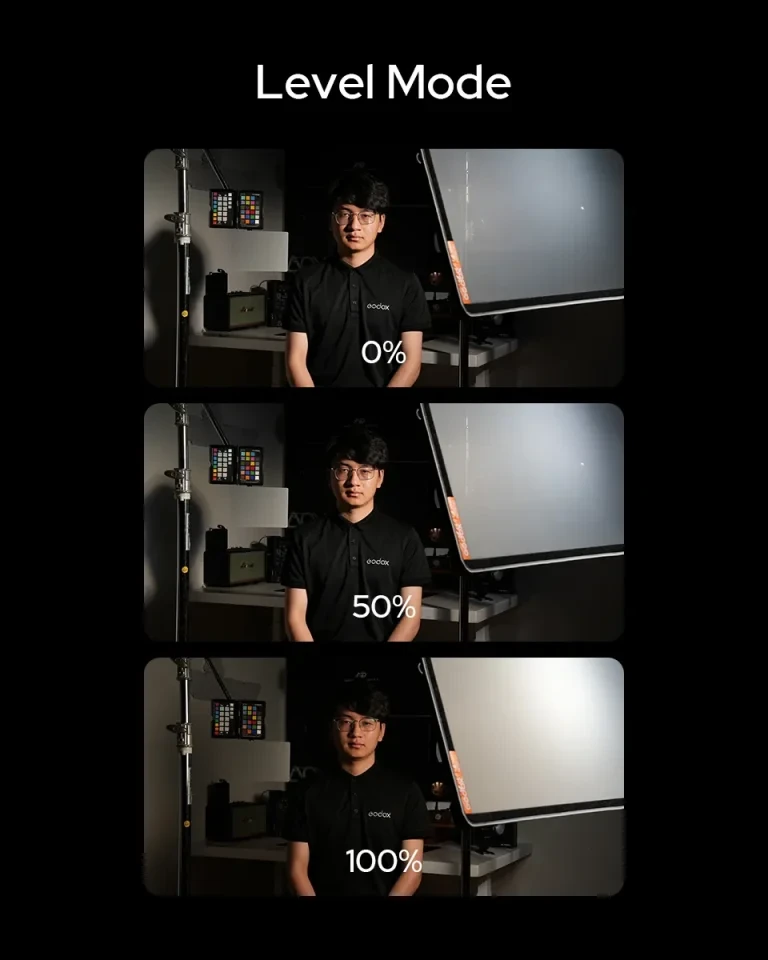

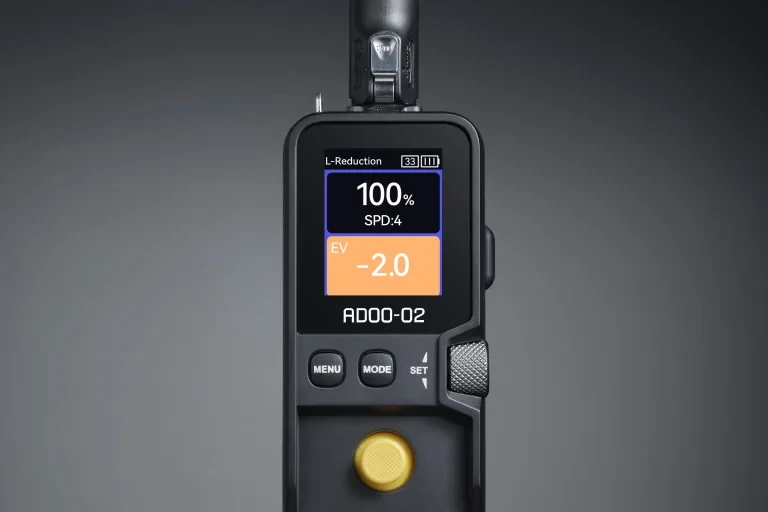

  • Motorized diffusion control with Level Mode (0-100%) and Light Reduction Mode (-0.1 to -2.0 EV)
  • Flicker-free operation up to 300fps with patented frequency adjustment

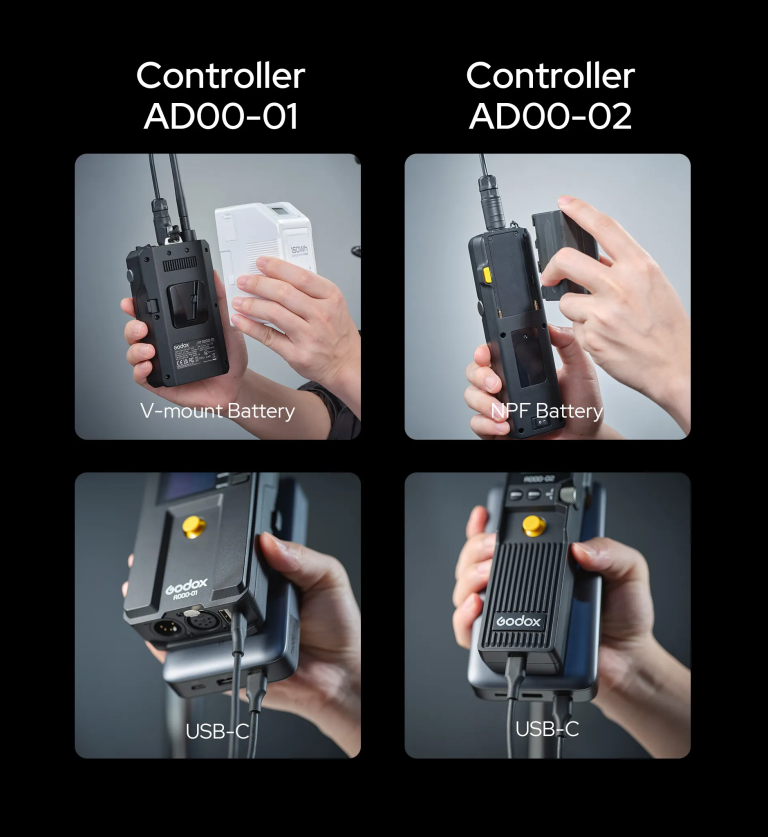

  • Versatile power options: USB-C, V-mount, and NP-F batteries

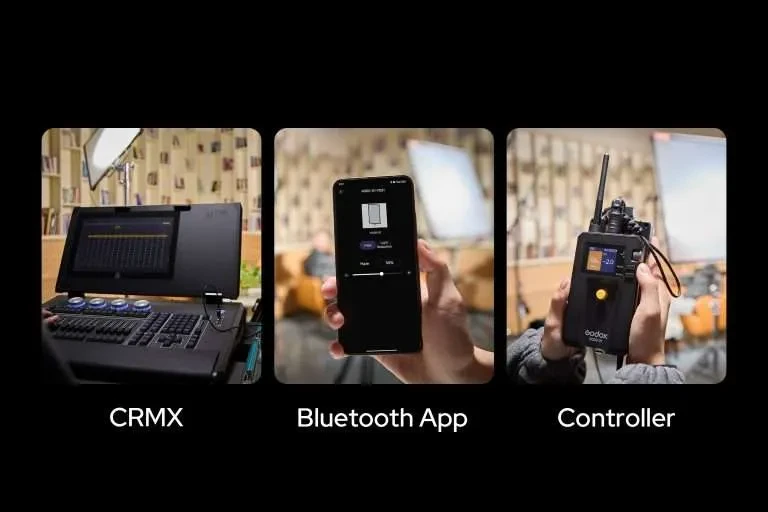

  • Multiple control methods: DMX, CRMX, Bluetooth app, and AD00-01 controller
  • Easy-to-replace Velcro diffusion fabric
  • Weather-resistant design (IP54)

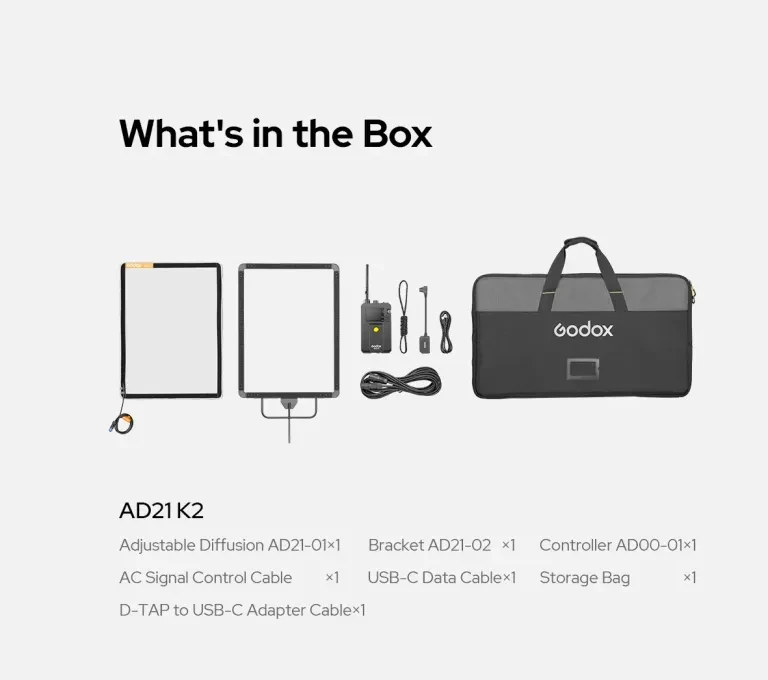

PACKAGE CONTENT

  • 1 × Adjustable Diffusion AD21-01
  • 1 × Bracket AD21-02
  • 1 × Controller AD00-01
  • 1 × AC Signal Control Cable
  • 1 × USB-C Data Cable
  • 1 × Storage Bag
  • 1 × D-TAP to USB-C Adapter Cable

SPECIFICATIONS

  • Panel (AD21-01): AC 0–28V~, 2W | Size: 17.76″ × 23.7″ | Weight: 0.25 kg
  • Controller (AD00-01): USB-C 12–20V⎓6.5A | AC Output 0–28V~ | USB-A 5V⎓1.5A | DMX/CRMX/Bluetooth/app control | Range: 30 m | Temp: -20°C–40°C | Size: 3.27″ × 1.81″ × 5.91″ | Weight: 259 g
  • Diffusion Control: Motorized 0–100% (Level Mode) | Light Reduction Mode -0.1 to -2.0 EV
  • Performance: Flicker-free up to 300 fps
  • Power Options: USB-C, V-mount, NP-F battery | Up to 20 h on 100Wh battery
  • Design: Foldable, lightweight, IP54 weather-resistant
