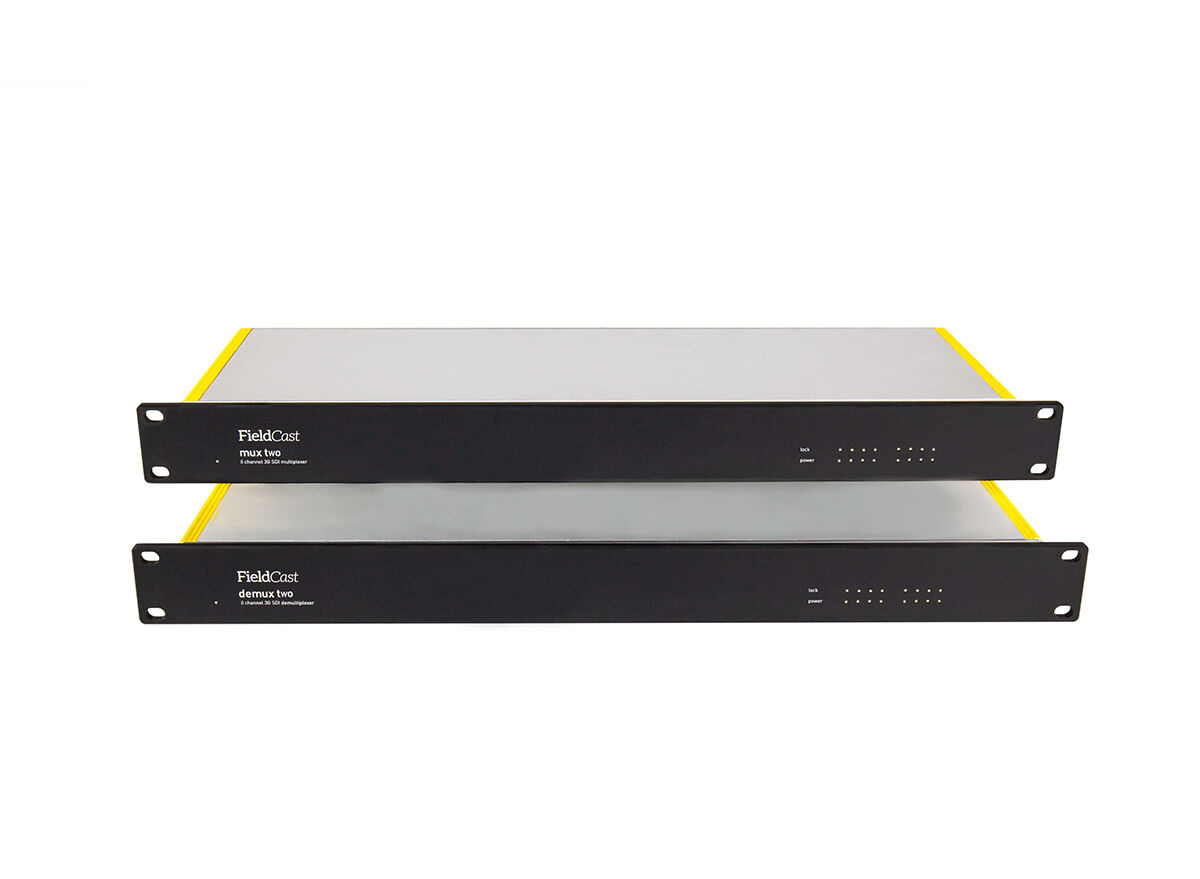

FieldCast Mux/Demux Two 12G (8x SDI in/out)

Mux/Demux Two 12G allows you to transmit eight independent channels of 12G SDI video over just one optical fiber. Availability is expected for late 06/07 2025.

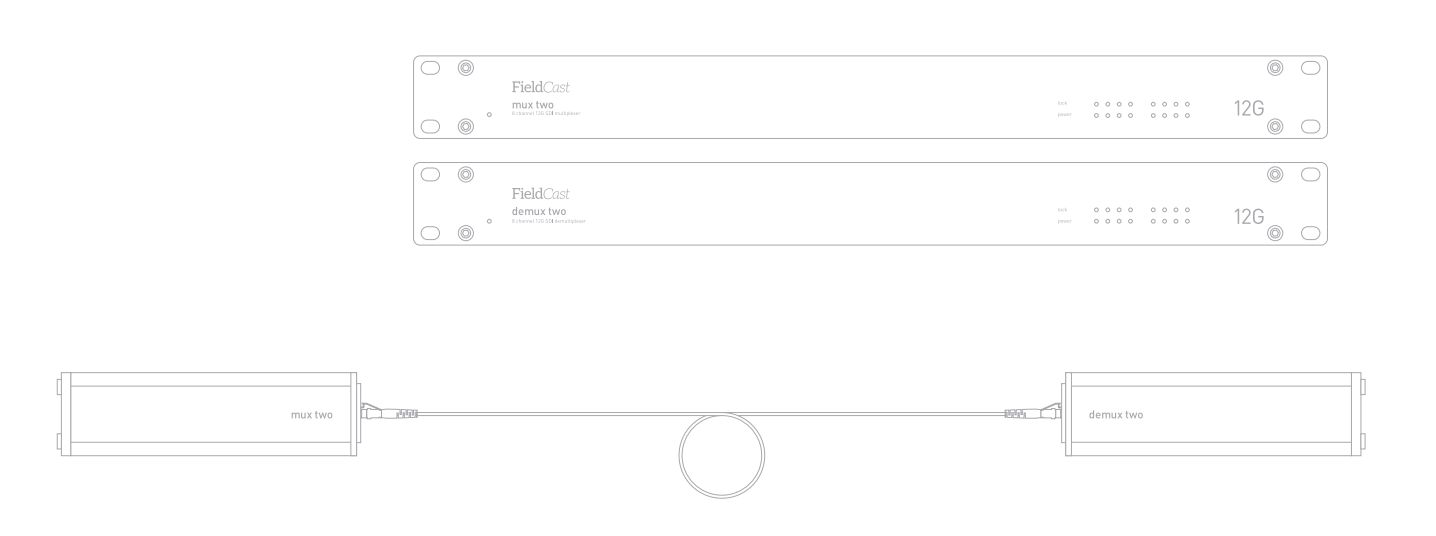

If your infrastructure only allows a single simplex fiber, Mux/Demux Two simply allows you to handle all the traffic. Or if you want to lay as little cable as possible for live events, the device can multiplex up to eight video channels and transfer all the data from point A to point B using just one fibre. All 12G video signals retain full data integrity - what goes in comes out unchanged.

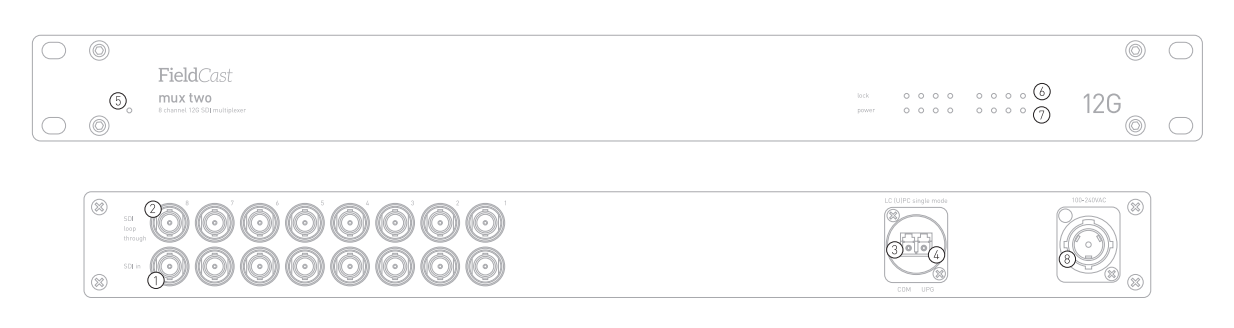

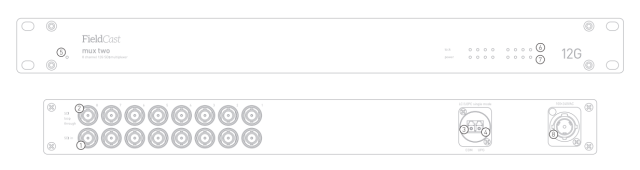

Mux Two 12G

• 8-channel SDI input to 1-channel optical output (multiplexer)
• Design: aluminum, 1U (rack) size
• 8 12G (11.88 Gbps) SDI input channels, each with loopthrough SDI output
• Fiber optic technology: 9/125 single mode
• 75 ohm BNC connectors for all SDI inputs and loopthrough outputs
• Compatibility with SMPTE standards: 259M, 344M, 292M, 424M, ST 2081, ST 2082
• Support SD, HD and UHD standards up to 2160p@60
• One LC single mode (U)PC optical channel (COM)
• One LC single mode upgrade optical channel (UPG)
• Front panel: black, with 2 mm white LED indicators
• Indications: power, module activity, input signals
• Power consumption: < 40 W
• Proprietary hybrid WDM multiplexing technology for very low dispersion
• Minimum distance between Mux and Demux units: > 10 km for all wavelengths
• Power input: 110-240 VAC with PowerCon connector
• Dimensions: 482 (w) x 155 (d) x 43 (h) mm
• Weight: 1800 grams
• Manual and power cord included

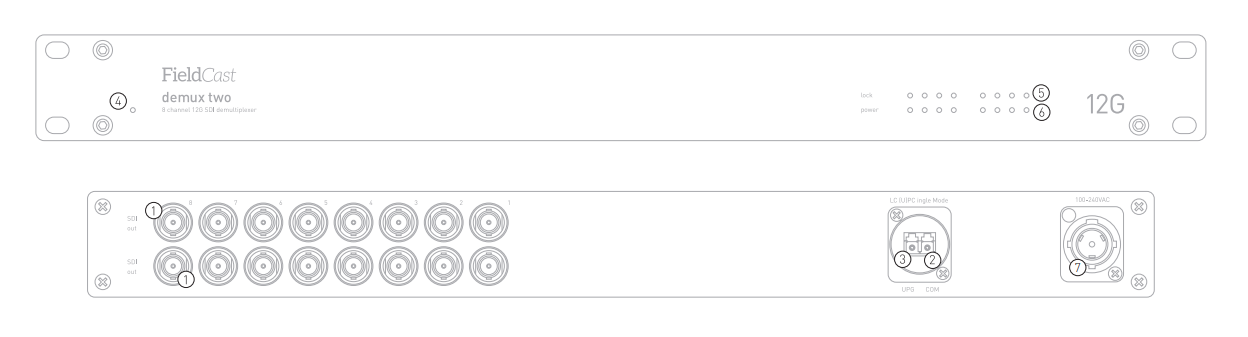

Demux Two 12G

• Demultiplexor: 1 optical input → 8 SDI output channels
• Design: aluminum, 1U (rack) size
• Fiber optic technology: 9/125 single mode
• 8 SDI channels 12G (11.88 Gbps) with dual SDI output
• 75 ohm BNC connectors for all SDI outputs
• Compatibility with SMPTE standards: 259M, 344M, 292M, 424M, ST 2081, ST 2082
• Support SD, HD and Ultra HD standards up to 2160p@60
• One LC single mode (U)PC optical channel (COM) p
• One LC single mode (U)PC upgrade optical channel (UPG)
• Ethernet protocol: IEEE 802.3U, IEEE 802.3z, 1000Base-Tx/Fx
• UTP RJ-45 connector for Ethernet (full/half duplex)
• Front panel: black, with 2 mm LED indicators
• LED indicators: power, module activity, input signal
• Power consumption: < 40 W
• Proprietary hybrid WDM multiplexing technology for very low dispersion
• Minimum distance between Mux and Demux units: > 10 km for all wavelengths
• Power input: 110-240 VAC with PowerCon connector
• Dimensions: 482 (w) x 155 (d) x 43 (h) mm
• Weight: 1800 grams
• Manual and power cord included
