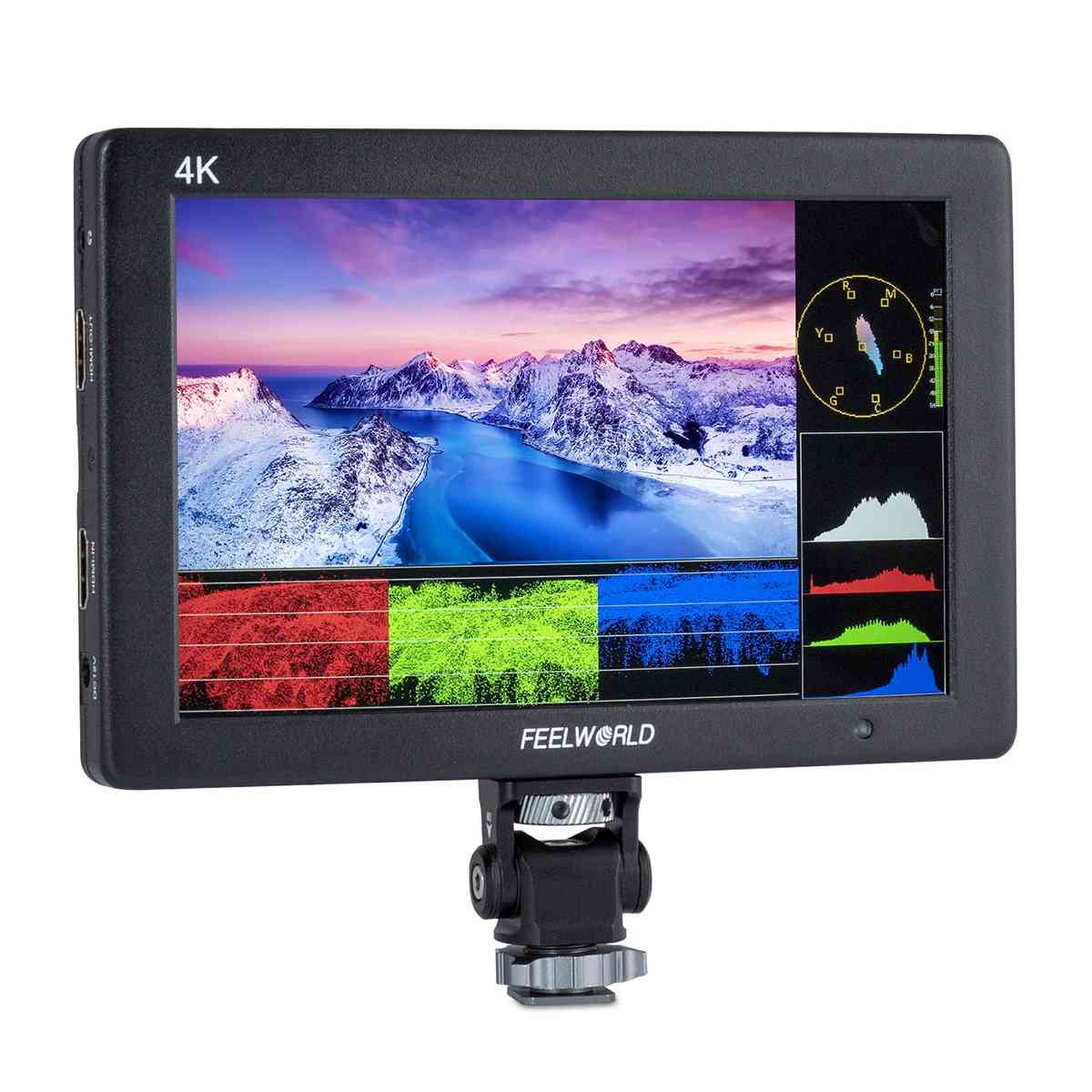

Feelworld T7 Plus 7“ Camera 3D LUT Monitor

FEELWORLD T7 PLUS is a 7-inch full HD on-camera monitor. It features aluminium alloy housing, durable; the easy button interface design brings you confidence in operation; supports 4K HDMI @30Hz signal input and output. For function, it upgrades waveform, histogram, vectorscope, 3D LUT on the basic of T7. Provides more color and exposure details of the image, optimizes the workflow and improves work efficiency.

The T7 PLUS With Full HD 1920x1200 high resolution Precise Color, an impressive 323 PPI (Pixels Per Inch), The pixel density of the T7 PLUS packs an impressive 323 PPI (Pixels Per Inch) blending individual pixels to the point that the naked eye can’t define individual pixels. Sharper images, brings you the perfect visual experience.

Viewing Angle become very important, as the camera operators may shift his/her position relative to the monitor during the shot. T7 PLUS IPS 160° wide viewing angle allows the operator to have a clear, easy-to-see image as their position shifts.

The frame of the T7 PLUS is made of aluminum alloy which means you get an incredibly sturdy metal that barely adds any weight to your camera. It’s also comfortable enough and and still light enough which makes it perfect for bracing the mounting points.

Specially designed to merge portability, and functionality, 18mm thickness 320g the T7 PLUS gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.

Easy operate button design, allowing you immediately to improve the shooting efficiency. F1, F2 custom shortcut function keys, can fast access to the functions you needs, focus assist, false color, exposure, embedded audio etc.

FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.

FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, present the clear image and natural color, ensuring accurate color reproduction, to reproduce the physical nature of the shooting, enabling users to accurately evaluate the quality of various input video signals.

The T7 PLUS supports 4K@30Hz signal input and output, which is transmitting without loss and the screen is clearer. It can connect to director monitor or other displays to display live picture simultaneously.

Its flexible OS is packed with an extensive suite of scopes. The Video OS includes tools for focus, framing & exposure (waveform, RGB parade, vectorscope, RGB histogram, histogram, embedded audio, focus peaking, zoom, zebra, false color, safe frames, etc.) as well as a flexible 3D LUT implementation. Assist users to accurately exposure and focus when shooting, making and playing movies/ videos.

The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use 4 built-in LOG to Rec.709 video or upload .cube files ( A single file must not exceed 7.9M, supports files with LUT_3D_SIZE of 16, 17, 32, 33, 64, 65). The user stores the LUT document in the root directory of the U flash drive, and imports via connecting the USB adapter cable and the USB interface of the device (up to 32 custom files can be imported), maintaining creative intent, always.

When you need to analyze image quality more accurately than simply looking at the picture then use T7 PLUS's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. T7 PLUS becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
