Broadcast quality SD, HD, and 3G monitoring!
Broadcast quality SD, HD, and 3G monitoring!

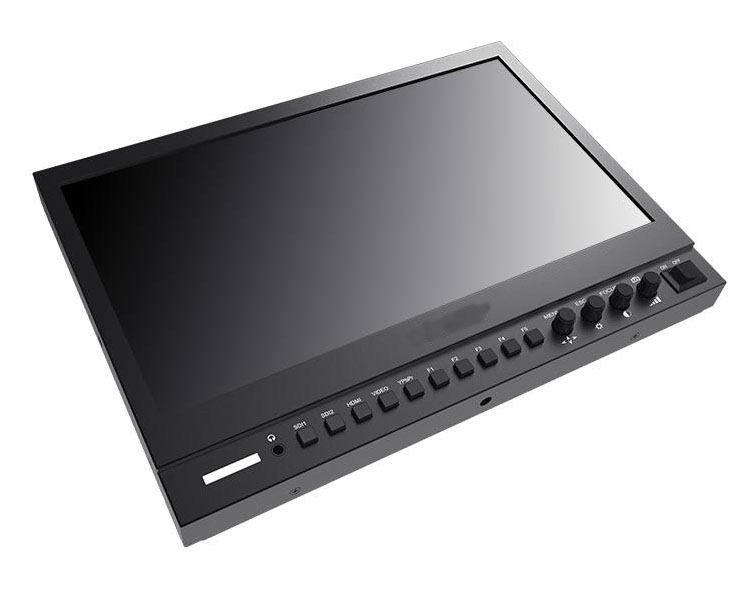

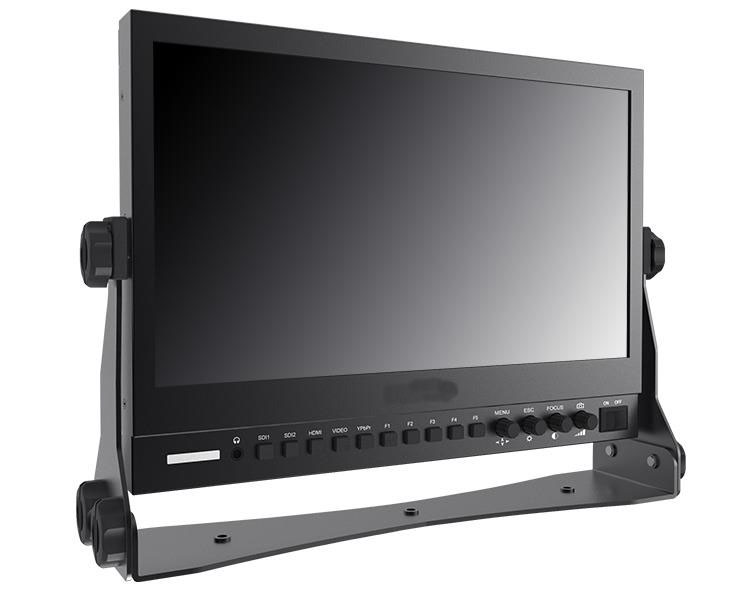

P133-9DSW is an incredibly high-quality monitor that's versatile enough to be used from the broadcast facility, mobile live production, or on set for feature film production! The monitor comes with 2x3G/HD/SD -SDI, HDMI, Audio, and Video input, and output. Multiple input formats to meet all HD, SD, analog video signal input and display demand Professional functions set.
When you need high-quality monitoring, SEETEC monitors are the perfect solution!
Standard Accessories:
1× Mini HDMI Cable
1× V Battery Plate
1× 1.5A Power Adapter
1× Tally Kit
1× Sunshade
1× U bracket
1× Operation Manual
Features:
1. 1920×1080 full hd resolution
2. 3G/HD/SD-SDIx2, HDMI, YPbPr, Video, Audio (L/R) inputs
4. Monitoring via front panel 3.5mm stereo headphone jacks, built-in speaker
5. Built-in LED tally indicators
6. Power using included 12-volt supply or use standard 4-pin XLR

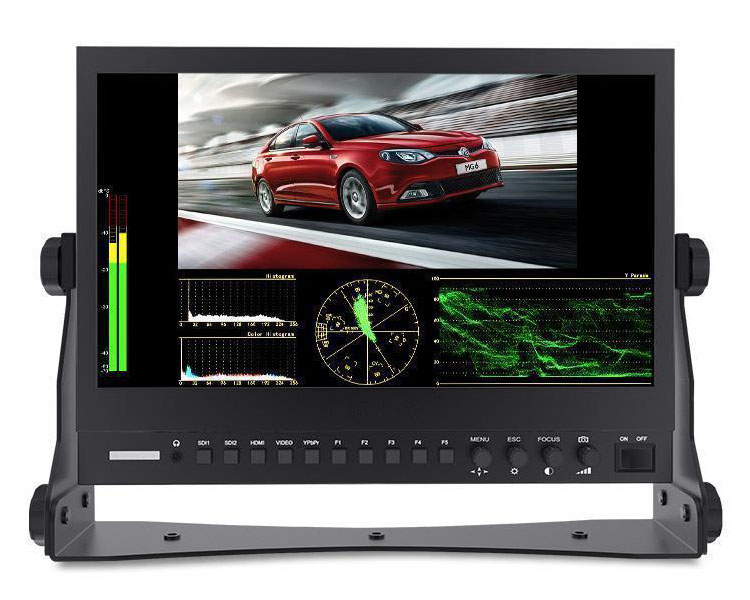

7. Special Features:
*Waveform (RGB, YUV, Y (Luminance)
*Vector Scope
*Color Histogram
*Histogram
*Embedded Audio Meter
*Focus Assist (Red, Green, Blue, White four color optional highlight over parts of the image in focus)
*False Colors
*Zebra Exposure
*Check Field (Gray/ Red/ Green/ Blue)
*Internal Colorbar
*Camera Mode
*Scan Mode (Auto, Over Scan, Full Screen)
*Pixel to Pixel
*Real time video zoom-in (Standard, 4x, 9x,16x)
*Anamorphic Mode (1.3x, 2.0x, 2.0x mag)
*Image Flip (Horizontal, Vertical, Hor&Ver)
*Image Freeze
*Nine Grid
*Center Marker
*Safe Area (80%, 85%, 90%, 93%, 96%)
*Marker Type (16:9, 4:3, 2.35:1, 1.85:1)
*Marker Color (Red, Green, Blue, White, Gray, Black)
*Color Temperature Adjustment
Display Specifications
Size: 13.3" IPS
Display Colors: 16.7M (8-bit)
Resolution: 1920×1080 pixels
Pixel Pitch: 0.1989(H)×0.1989(V) mm
Aspect Ratio: 16:9
Brightness: 400cd/m²
Contrast Ratio: 1000:1
Backlight: LED
Viewing Angle: 85°/85°(L/R) 85°/85°(U/D)

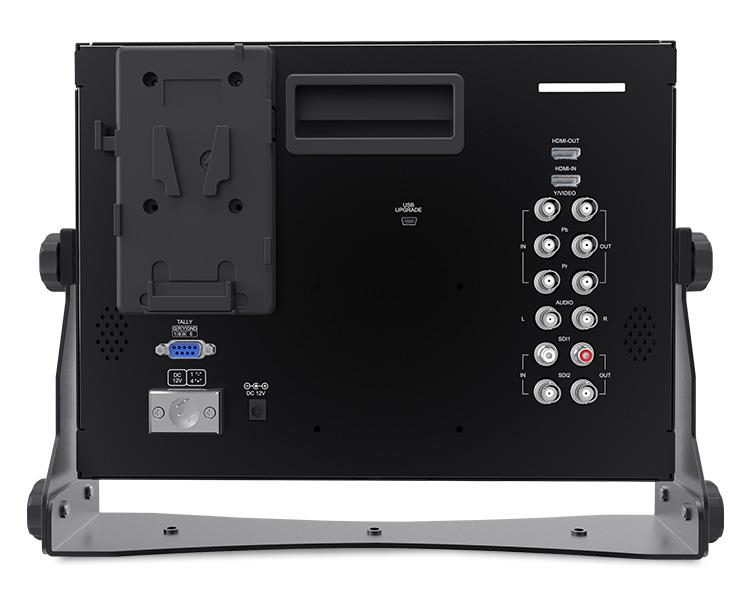

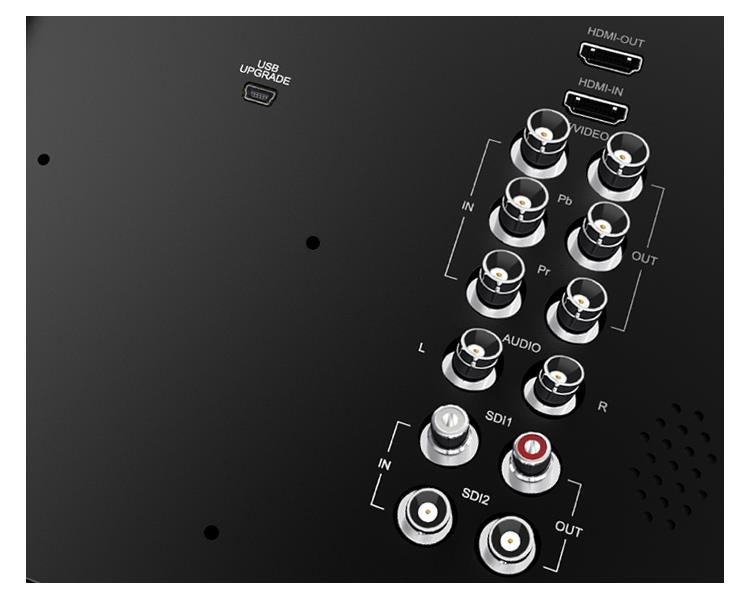

Input
2 X BNC: 3G-SDI
1 X HDMI: HDMI
3 X BNC: Y/ Pb/ Pr
1 X BNC: Video
2 X RCA: Audio(L/R)
1 X USB: USB Upgrade
1 X DB-9: Tally
Output
2 X BNC: 3G-SDI
1 X HDMI: HDMI
3 X BNC: Y/ Pb/ Pr
1 X BNC: Video
Audio
Audio Out: Stereo Headphone, Speaker
SDI Support Format
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
HDMI Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
General
Input Voltage: DC7~24V
Power Consumption: ≤14W
Power Connector: DC/ 4-pin XLR
Battery Plate: V-Mount (Standard); Anton Bauer (Optional)
Working Temperature: -10°C~50°C
Storage Temperature: -20°C~60°C
Unit Size: 315.5L×231H×26.4D mm (Without Bracket)
Unit Weight: 1.37kg / 1.70kg (With Bracket)
Manufacturer: | Feelworld |
Category: | Camera monitors |
Size | 13.3" |
Other features | Lightweight |
High Brightness (NITS) | No |
