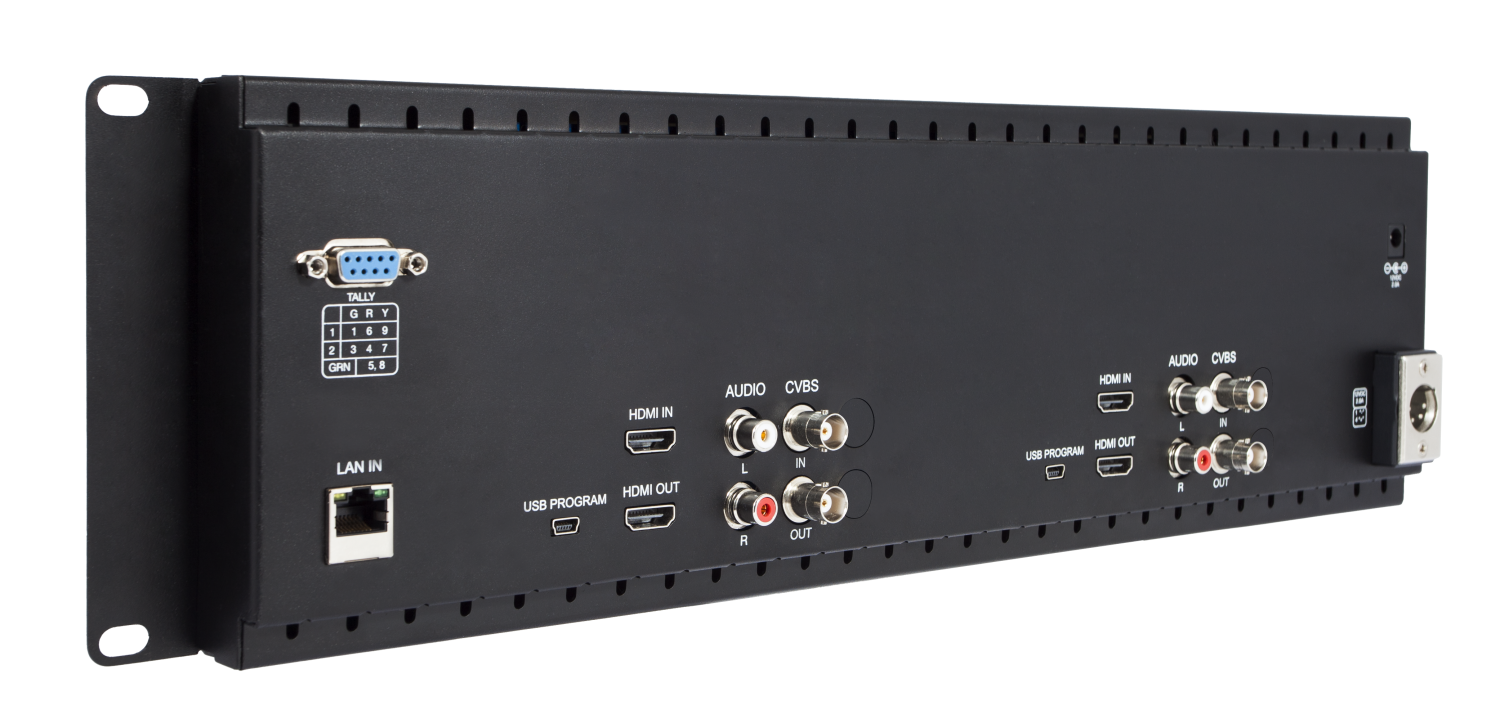

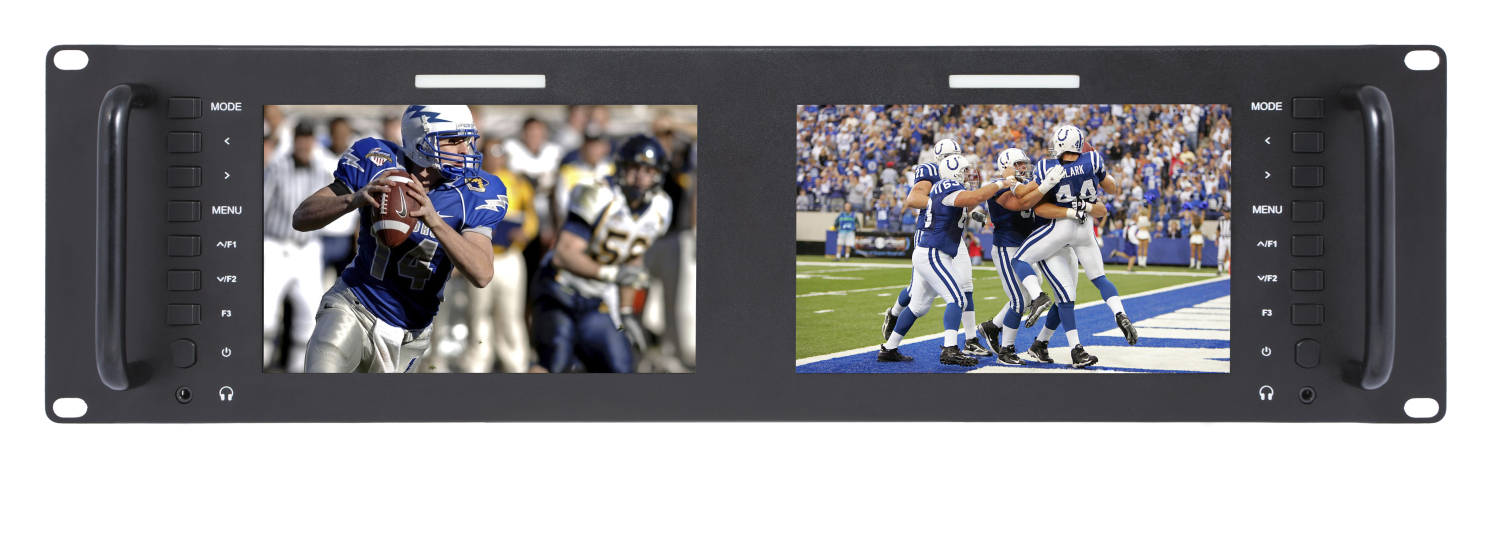

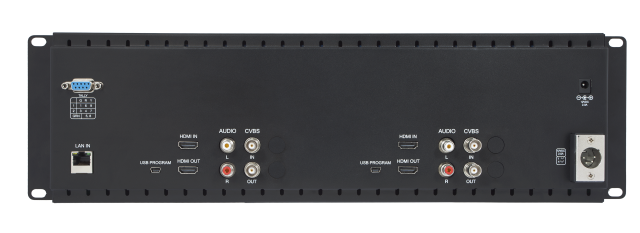

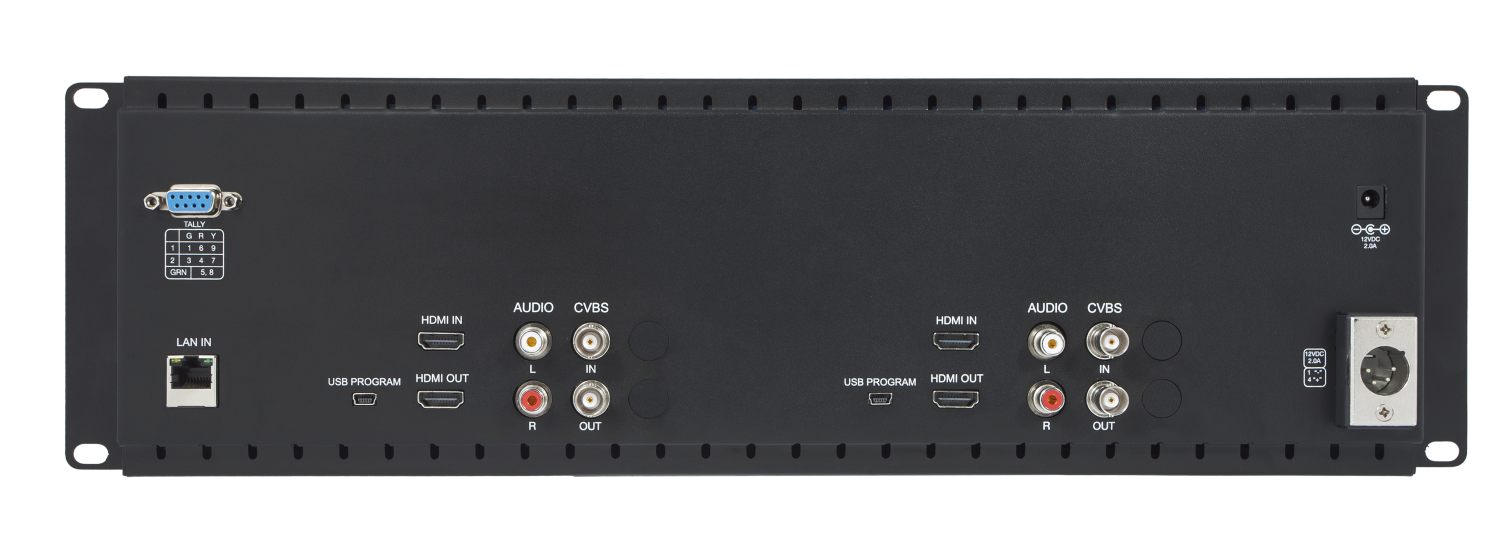

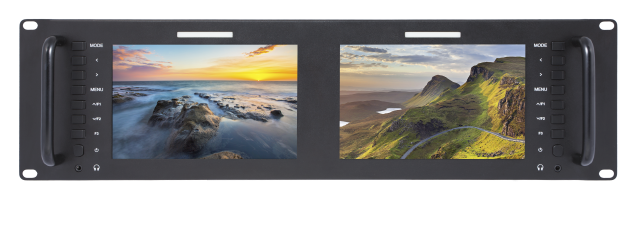

Featuring two 7" displays in an ultra-slim 3 RU design and offering a LAN port for GPIO network control, the D71-H Dual 7" 3 RU Rackmount HDMI LCD Monitor from FeelWorld is designed to provide efficient broadcast monitoring of up to two 1080p60 signals. The D71-H model has HDMI and composite BNC inputs and outputs per display, as well as RCA audio inputs for each panel. A headphone output is provided for each panel for monitoring audio. There's a single tally port on the rear and a three-color tally light above each display. The displays are IPS panels with a 1280 x 800 resolution and 178° wide viewing angle, providing for more consistent monitoring.
Over the LAN 100 port, multiple D71-H units can be controlled at the same time via a single control software. The D71-H comes in a metal housing that allows for optimal heat dissipation and has cast-iron handgrips on the sides for convenient handling when installed into or removed from a rack.
A variety of image analysis functions include peaking focus assist, check field, pixel-to-pixel, zoom all, and more, and three function buttons per monitor are provided on the front panel that these can be assigned. For power, a barrel input and 4-pin XLR port are provided on the rear. A 12 VDC power adapter is included for the barrel input while an optional standard XLR power adapter can alternatively be used instead.
Key Features
Two 7" 1280 x 800 resolution IPS displays in an ultra-slim 3 RU design
LAN port for GPIO network control of up to multiple units
HDMI and composite BNC I/O
Up to 1080p60 signal input
178° viewing angle
400 cd/m² brightness
800:1 contrast ratio
RCA audio inputs
Headphone outputs
Single tally port
Three-color tally light above each display
Three user-assignable function buttons per display
DC barrel / 4-pin XLR power ports (12 VDC power adapter included)
Metal housing allows for optimal heat dissipation
Image Analysis Tools
Peaking focus assist (red highlight over parts of the monochrome image)
Check field (red, green, blue, mono)
Pixel-to-pixel
Center marker
Safe marker (80, 85, 90, 93, 96, 2.35:1)
Image flip (horizontal, vertical, horizontal/vertical)
Image freeze
Zoom all
U/D and L/R zoom
Custom color temperature
