Exascend Zblade _Gen4 storage for Z cam E3-F6 Pro 4TB

The Exascend EXP4M6G004TB ZBlade Gen4 4TB storage is Z CAM E2-F6 Pro certified, delivering 2400 MB/s read and 1400 MB/s write for drop-free 6K60/ProRes 4K120 video. Built-in 20 Gbps USB-C reader, rugged for extremes (0°C~70°C), with 4000 TBW endurance and 5-year warranty including data recovery.

More information

1 259 € with VAT 1 040.5 € without VAT
-+
Availability
on request

Show all accessories

Product description SPECIFICATIONS

Product description

The Exascend EXP4M6G004TB ZBlade Gen4 4TB storage is Z CAM E2-F6 Pro certified, delivering 2400 MB/s read and 1400 MB/s write for drop-free 6K60/ProRes 4K120 video. Built-in 20 Gbps USB-C reader, rugged for extremes (0°C~70°C), with 4000 TBW endurance and 5-year warranty including data recovery.

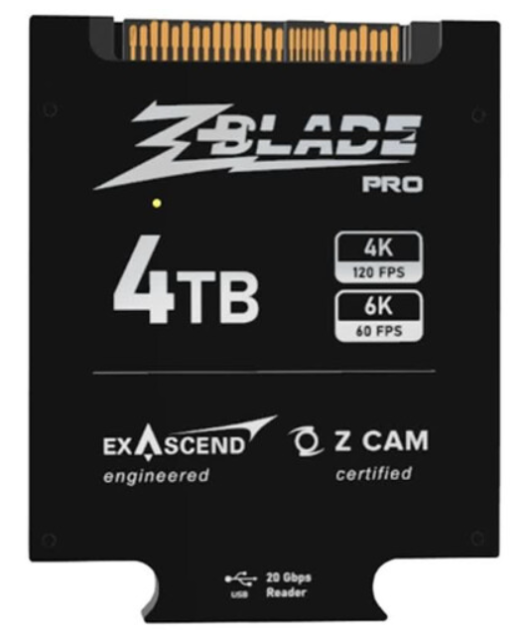

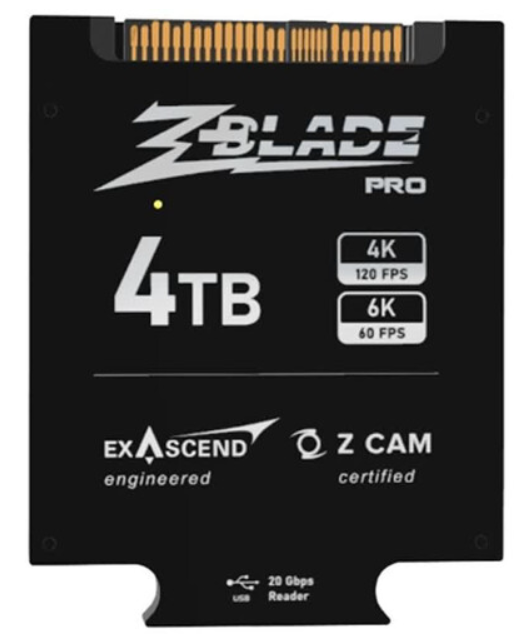

The Exascend EXP4M6G004TB ZBlade Gen4 is a high-capacity 4TB storage module custom-developed with Z CAM for the E2-F6 Pro full-frame 6K cinema camera, serving as the official media platform for seamless, frame-accurate captures. Achieving up to 2400 MB/s read and 1400 MB/s write speeds, it supports ProRes video at 4K120 or 6K60 without drops, powered by 3D TLC flash. Its integrated 20 Gbps USB-C 3.2 Gen 2 interface enables direct transfers up to 20 GB/s, bypassing external readers for efficient workflows. Ruggedly engineered for professional cinematography, it handles shocks up to 50G, operates in 0°C to 70°C, and boasts 4000 TBW endurance with low power consumption (<5W active). A 5-year warranty with complimentary data recovery ensures reliability in demanding shoots.

Key Features:

  • Z CAM E2-F6 Pro certified for optimal integration and no-dropped-frame 6K/ProRes recording
  • High-speed performance: 2400 MB/s read, 1400 MB/s write for 4K120/6K60 video
  • Built-in 20 Gbps USB-C reader for direct, ultra-fast media offloads
  • Rugged design: Shock-resistant (50G), extreme temps (0°C~70°C), adventure-ready
  • Exceptional endurance: 4000 TBW, 3D TLC flash, low power (<5W active)
  • 5-year warranty with included worry-free data recovery service

SPECIFICATIONS

  • Part Number: EXP4M6G004TB
  • Edition: ZBlade Pro (Gen4)
  • Storage Capacity: 4 TB
  • Dimensions: 72.5 mm (H) x 57 mm (W) x 7.65 mm (T); USB connector width: 29.59 mm
  • Max. Weight: 45 g
  • Compatibility: Z CAM E2-F6 Pro video camera
  • Flash Type: 3D TLC
  • Inputs/Outputs: 1 x USB-C 3.1/3.2 Gen 2 (20 Gbps)
  • Input Voltage: 3.3V ±5%
  • Power Consumption: Active <5W; Idle <1W
  • Performance:
    • Maximum Read Speed: 2400 MB/s
    • Maximum Write Speed: 1400 MB/s
    • Sustained Read: 2400 MB/s
    • Sustained Write: 1200 MB/s
  • Reliability/Endurance:
    • Operational Temperature: 0°C ~ 70°C
    • Storage Temperature: -40°C ~ 85°C
    • Shock (Operating): 50 G (11 ms duration, half sine wave)
    • Max. TBW: 4000 TB
  • Warranty: 5 years with data recovery
Parameters

Parameters

Manufacturer: Exascend
Category: SD cards
