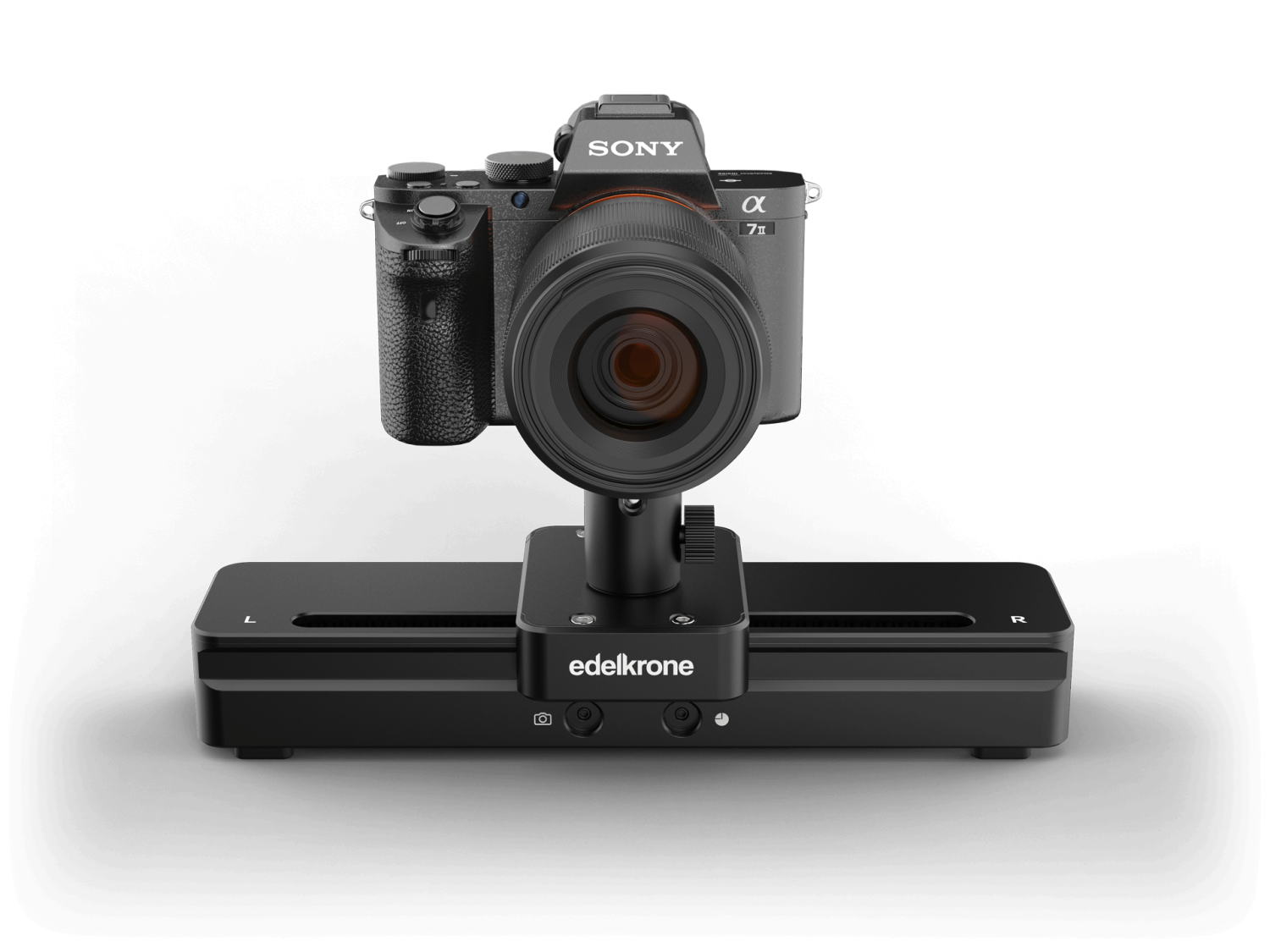

EdelKrone SliderONE v1 - Motorized

This product is no longer offered. Please select from the alternatives below.
Product description

Product description

World’s most portable, professional slider designed for ease-of-use and efficiency.

Choose the ONE You Want in Your Backback

  • Manual - Hand-controlled. 15 cm camera motion.
  • Motorized - Controlled with edelkrone App or Controller. 20 cm camera motion.


Manual SliderONE

Even beginners can get silky smooth hand-controlled motion at first try, thanks to the SteadyMOVE® dampening technology.

  • Carry only the most used part of your slider - Most experienced camera operators and editors know that most of the slider shots are cut out during the post. That’s why the Hollywood productions today have only 4 to 6 seconds average length per shot.
  • 15 cm camera motion can do the wonders - Humans are evolved to get a sense of depth with their eyes only 2.4” (6 cm) apart from each other. 6 cm is great for close to mid distances and most of the time, this distance is all you need to introduce to your audience to give them a sense of depth. SliderONE Light achieves more than double that distance; so it’s guaranteed to introduce nice depth to your shots.
  • SteadyMOVE® Technology Eliminates Shaky Hands - Even beginners can get perfectly smooth slides at first try! No batteries, no chargers; built-in, completely mechanical solution. Uses fluid dynamics to dampen the movement. (Adjustable tension)


Motorized SliderONE

Ultra portable, powerful, slider with perfectly smooth linear motion and vertical operation ability + wireless connectivity with motorized edelkrone Heads.

  • Unmatched Vertical Capacity - Motorized SliderONE PRO with dual motors can handle camera loads up to 10 lbs (4.5 kg) in absolute vertical operation. This is already the highest carrying capacity in the market at this size.
  • SliderONE Motorized with a single motor can carry 5 lbs (2.3 kg) vertically. Which is enough for most DSLR cameras with heavy lenses.
  • SliderONE provides the necessary smoothness for ultra macro shots and perfect steady speed control throughout the whole slide thanks to its flawless mechanical design.
  • SliderONE can give you speeds as low as 27 μm/sec, enough for even the most demanding macro shots.

Technical Specifications

Model Manual Motorized Motorized PRO
Size (L x W x H)
9.05 x 3.74 x 0.98 in (230 x 95 x 25 mm) 10.6 x 3.7 x 1.9 in (270 x 95 x 50 mm) 11.3 x 4.1 x 2.1 in (288 x 105 x 52 mm)
Weight
1.1 lbs (0.5 kg) 2.4 lb (1.1 kg) 3.3 lb (1.5 kg)
Recommended load
19.8 lbs (9 kg) or less (at any incline angle) 20 lb (9 kg) or less, works on incline 5 lb (2.3 kg) or less carrying capacity on vertical operation 30 lb (13.6 kg) or less, works on incline 10 lb (4.5kg) or less carrying capacity on vertical operation
Mounting options
3/8"-16 mounting screw on top, 3/8"-16 mounting port on bottom 3/8"-16 mounting screw on top, 3/8"-16 mounting port on bottom 3/8"-16 mounting screw on top, 3/8"-16 mounting port on bottom
Camera Travel
6 in (15 cm) 7.87 in (20 cm) 7.87 in (20 cm)
Min. step size
-NA- 0.222 μm 0.255 μm
Max. speed
-NA- 0.52 in/sec (1.33 cm/sec) 0.71 in/sec (1.81 cm/sec)
Number of axes
Single (Slide motion) Single (Slide motion) Single (Slide motion)
Motor type
Manually Operated Step motor with ultra high-res encoder x2 Step motor with ultra high-res encoder
Power input
-NA- Canon LP-E6 type battery (Battery NOT included) Canon LP-E6 type battery (Battery NOT included)
Battery life
-NA- With 14.4 Wh energy (1 Canon LP-E6 battery is 14.4 Wh) Operates 2 hours (continuously at full speed) Shoots 12000 photographs (in Time-Lapse mode) With 14.4 Wh energy (1 Canon LP-E6 battery is 14.4 Wh) Operates 1.5 hours (continuously at full speed) Shoots 9000 photographs (in Time-Lapse mode)
Shutter trigger socket
-NA- 2.5 mm (Shutter trigger cable sold separately) 2.5 mm (Shutter trigger cable sold separately)
Mobile device connection
-NA- 2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection 2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection
Can be paired with
-NA- HeadONE (Both in single or dual modes), HeadPLUS. HeadONE (Both in single or dual modes), HeadPLUS.
App compatibility
-NA- iOS 11.0 or later & Android 5.0 or later iOS 11.0 or later & Android 5.0 or later
Materials
CNC machined aluminum & stainless steel components. CNC machined aluminum & stainless steel components. CNC machined aluminum & stainless steel components.
Parameters

Parameters

Manufacturer: EdelKrone
Category: Slider sets
