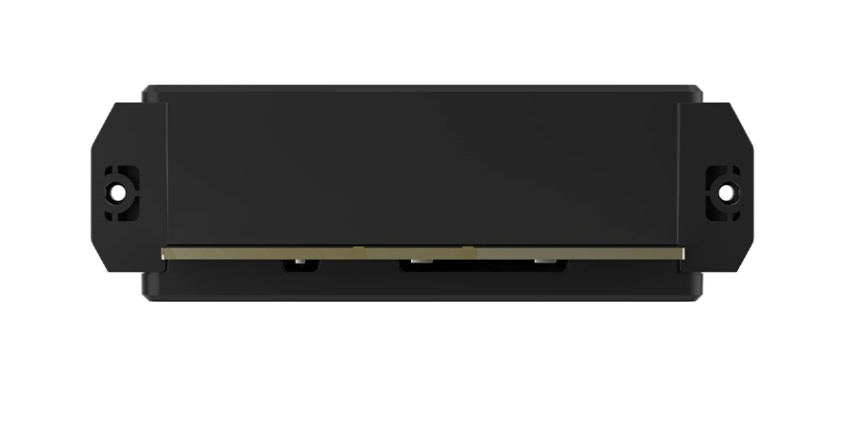

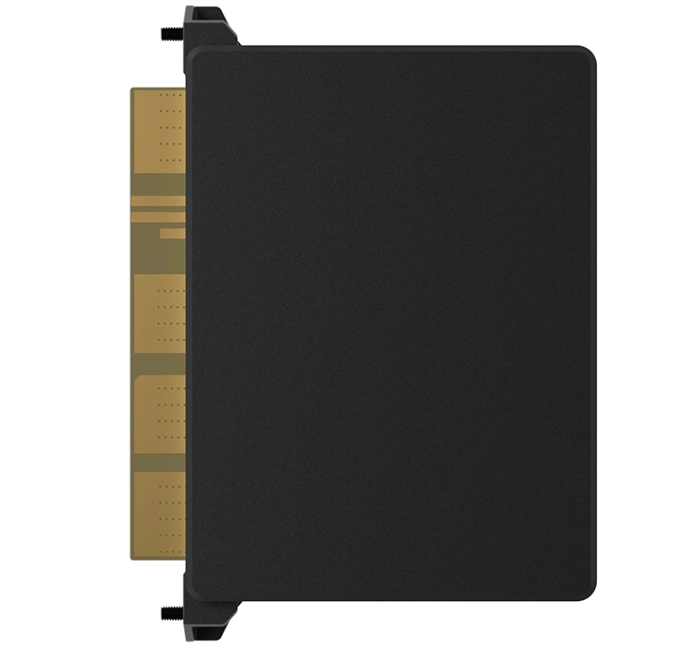

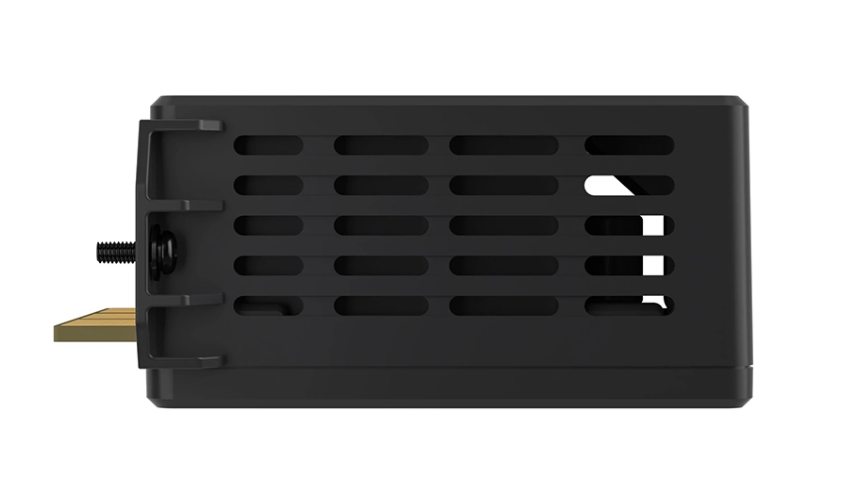

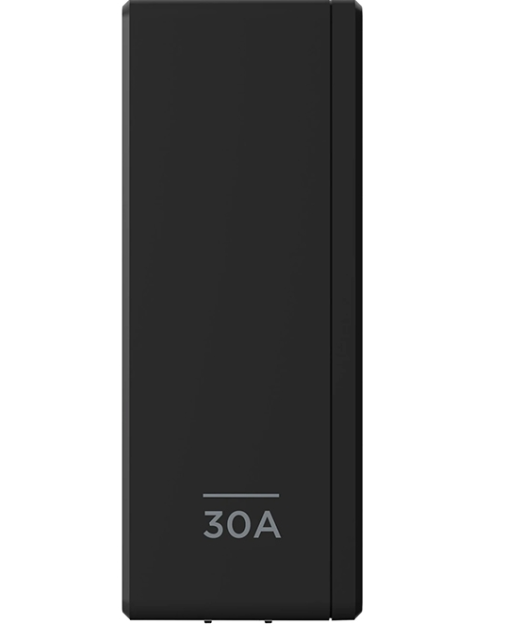

EcoFlow Smart Home Panel 30A relay module

The EcoFlow Smart Home Panel 30A Relay Module (1ECOSHP30A) enables reliable control and protection of high-current backup circuits within the EcoFlow Smart Home Panel system.

The EcoFlow Smart Home Panel 30A Relay Module is designed to manage and protect high-current circuits within the EcoFlow Smart Home Panel. The Smart Home Panel supports up to 10 home backup circuits with different current ratings, allowing flexible configuration for a wide range of connected loads. This 30A relay module is ideal for higher-demand appliances, ensuring safe and efficient power distribution during backup operation.

Installation is straightforward once backup loads have been defined in consultation with a qualified electrician. The modular design allows relay modules to be installed or replaced easily without interrupting other connected circuits. Each module includes two relays and an individual overcurrent fuse for each circuit, providing enhanced protection and reliability. In the event of an issue, users are notified via the EcoFlow mobile app and the integrated LED indicators, enabling quick diagnostics and maintenance without system downtime.

Key Features

• 30A relay module for EcoFlow Smart Home Panel

• Supports high-current backup circuits

• Smart Home Panel supports up to 10 circuits with different current ratings

• Modular design allows easy installation and replacement

• Replacement without affecting other circuits

• Dual relays with individual overcurrent fuse per circuit

• Error notifications via EcoFlow mobile app and LED indicators
