DJI RS Focus Motor (2022)

Name: DJI RS Focus Motor (2022)
Brand: DJI
SKU: CP.RN.00000227.01
Price: 145 EUR
Availability: InStock

SKU: CP.RN.00000227.01

DJI RS Focus Motor (2022) is a focus motor for DJI RS series gimbals. Compared with the previous generation it delivers three times the torque (up to 1 N·m) and 50% less noise, so focusing is smoother and does not affect audio recording. Its quick-release design assembles without tools. It works with DJI RS 4 Pro, RS 4, RS 3 Pro, RS 3, RS 2 and RSC 2 gimbals…

More information

145 € with VAT 119.83 € without VAT

Price history

Availability

Backordered 1 pcs

SKU:
CP.RN.00000227.01

Price history

DESCRIPTION AND PARAMETERS
Alternative 2

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Stronger, quieter focus motor

A next-generation motor for DJI RS gimbals: three times the torque, half the noise and tool-free assembly thanks to the quick-release design.

Up to 1 N·m45 dB noiseWeighs 108 gTool-free assembly

Three times stronger, half as loud

Torque of up to 1 N·m turns even stiff focus rings, and a noise level of 45 dB does not disturb in-camera audio recording.

Quick-release design

The motor attaches and detaches without tools, so the rig is ready to shoot quickly.

12 mm rod

12 mm rod mount and a 30-tooth gear with module 0.8 that fits standard focus gears.

Focusing on the gimbal

The motor connects to the gimbal port and you control focus with the dial right on the grip.

Complete mounting kit

The box includes the rod mount, a gear strip, a camera control cable, a lens-fastening strap, screws and an Allen wrench.

More information

Note: Lens and gimbal are not included.

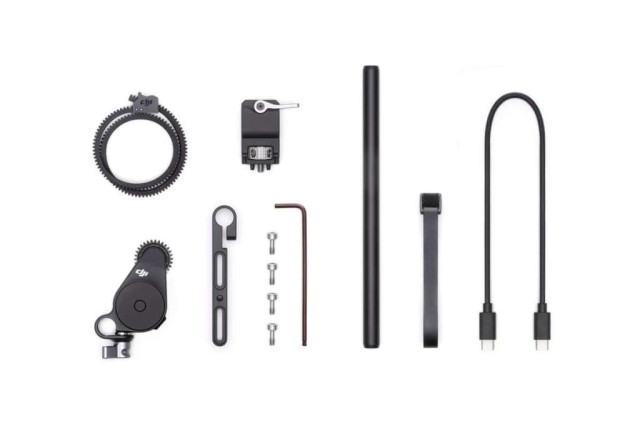

PACKAGE CONTENT

1× Focus Motor (2022)
1× Focus Motor Rod Mount Kit Combo
1× Focus Gear Strip
1× Multi-Camera Control Cable, USB-C, 30 cm
4× M4 Screw, 10 mm
1× Allen Wrench, 3 mm
1× Lens-Fastening Strap

SPECIFICATIONS

Weight: 108 g
Dimensions: 80 × 50 × 36 mm
Rod diameter: 12 mm
Max. torque: 1.0 N·m (8 V)
Max. speed: 180 rpm (8 V)
Free / stall current: 50 mA (5 V) / 2.8 A (8 V)
Operating voltage: 6–17.6 V
Noise: 45 dB
Gear: 30 teeth, module 0.8
Operating temperature: −20 to 45 °C
Compatibility: DJI RS 4 Pro, RS 4, RS 3 Pro, RS 3, RS 2, RSC 2, DJI Ronin 4D Flex
Manufacturer code: CP.RN.00000227.01
