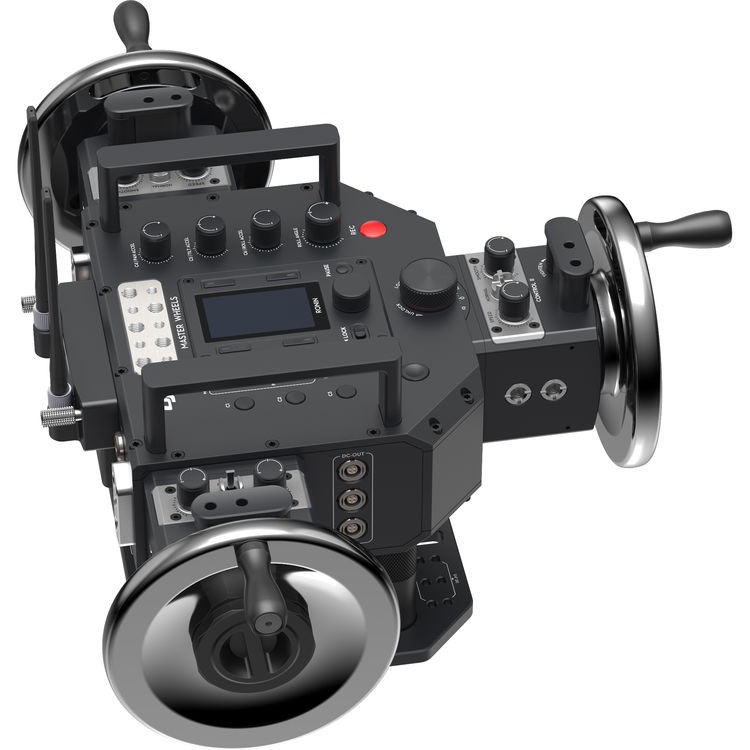

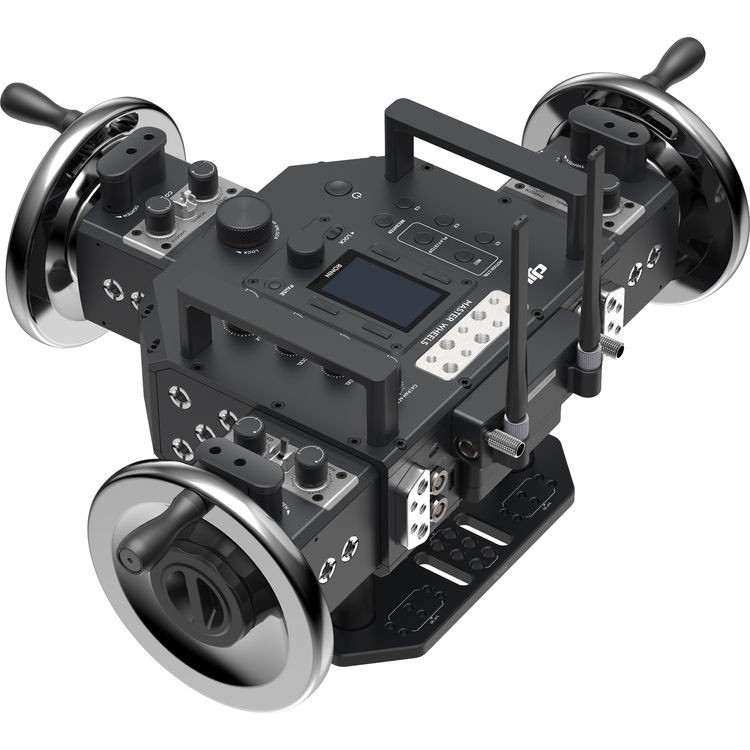

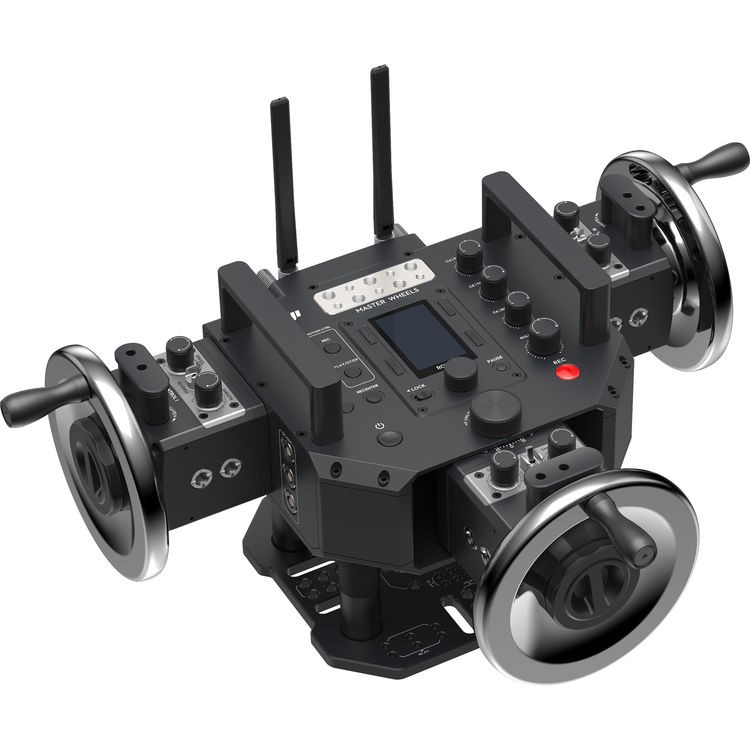

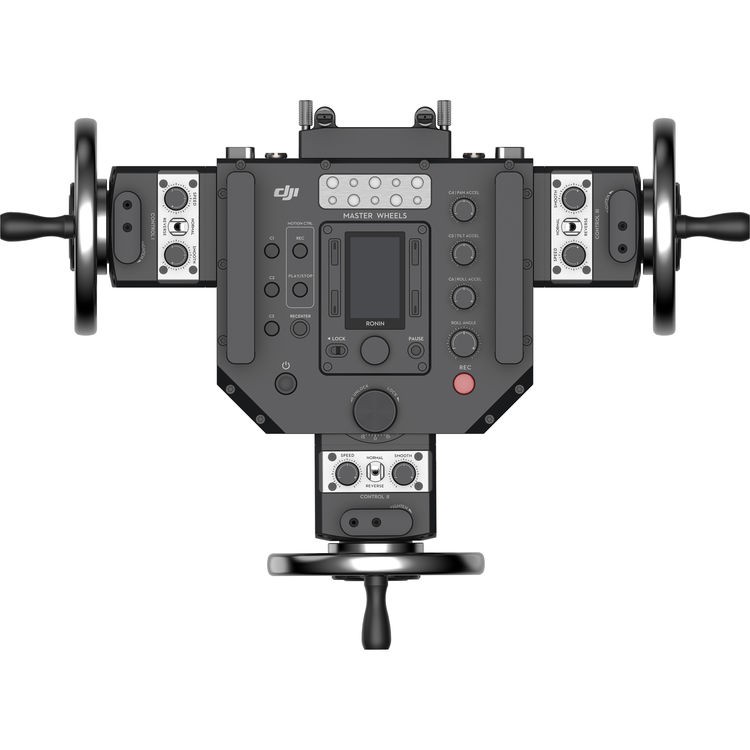

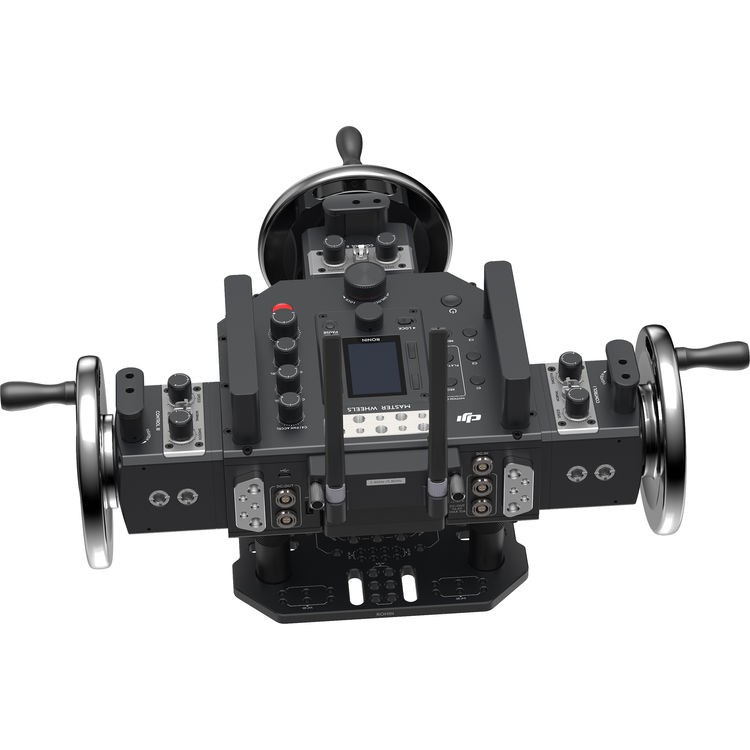

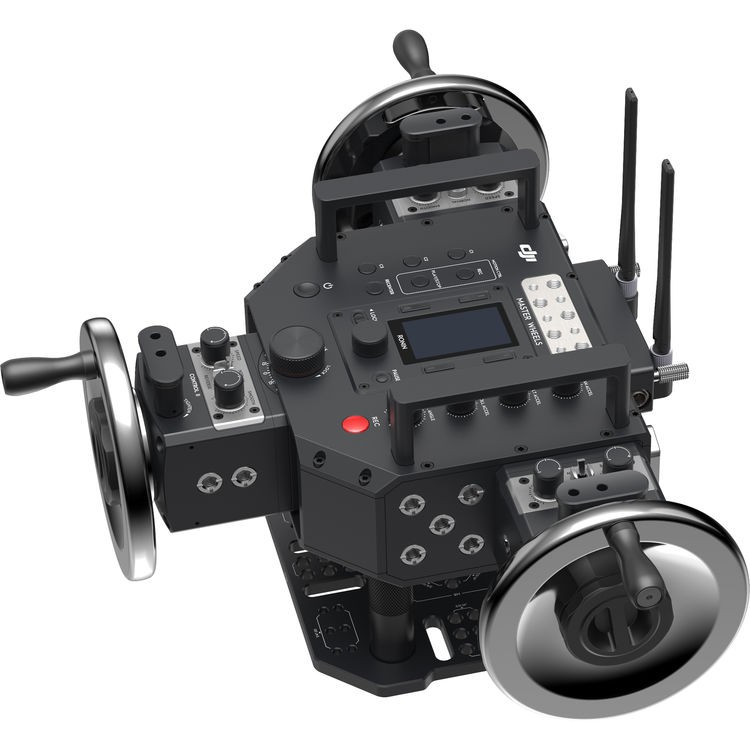

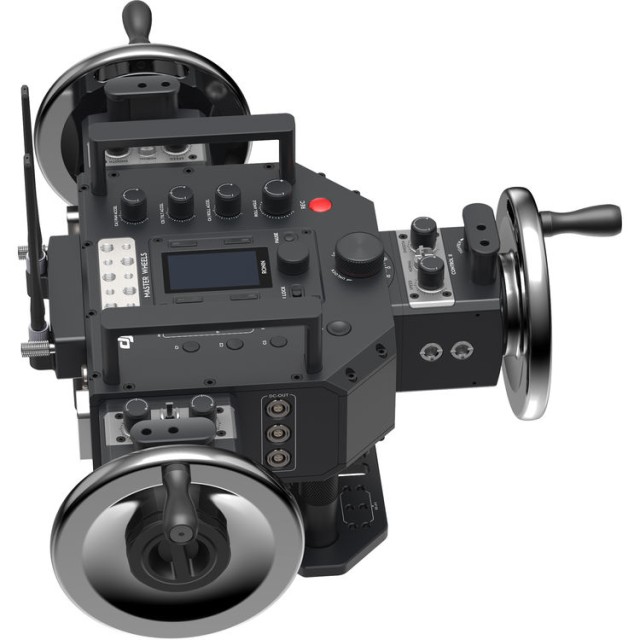

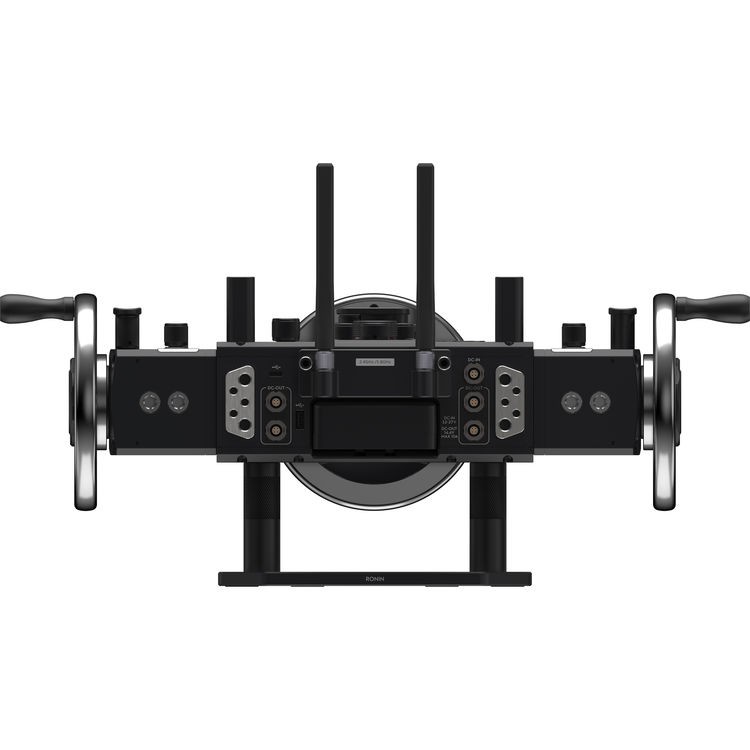

DJI Master Wheels 3-Axis (RH)

The DJI Master Wheels 3-Axis (RH) is a professional wireless gimbal controller that delivers precise, low-latency control over each axis of your gimbal. Compatible with Ronin 2, Ronin-S, and select third-party gimbals via SBUS, it features three high-precision control wheels, customizable speed and damping dials, and supports long-range wireless operation up to 1.8 miles for film, TV, and video production

The DJI Master Wheels 3-Axis (RH) is the ultimate gimbal controller for professional cinematographers seeking precise, repeatable, and customizable camera movements. Featuring three high-precision wheel modules—one per gimbal axis—this system provides smooth, accurate control over the Ronin 2, Ronin-S, and select third-party gimbals via SBUS. Each wheel module uses advanced sensors and optical encoders to detect subtle movements, allowing filmmakers to execute complex camera maneuvers with pinpoint accuracy.

The Master Wheels system supports both wireless and wired operation, offering up to 1.8 miles (3 km) of wireless range and 98’ (30 m) wired operation with an optional cable, with an impressively low 10 ms latency. Movements can be saved and repeated, building a library of precise, repeatable camera motions. Each wheel features a three-stop toggle switch for direction control, as well as dials for speed, smoothness, and damping adjustments.

Designed for versatility, the center wheel module can be shifted closer to the left or right modules for operator comfort, and all wheels can be detached for cable-connected use in tight spaces. Dual-frequency 2.4 and 5.8 GHz wireless transmission ensures reliable signal even in challenging environments. Self-heating batteries provide up to 18 hours of operation, allowing usage in temperatures as low as -4°F (-20°C). With a built-in display, Mitchell mount, and multiple accessory threads, the Master Wheels 3-Axis is a comprehensive solution for high-end productions requiring precision gimbal control.

Key Features:

• Wireless long-range gimbal controller for professional productions
• Three wheel control modules, one per gimbal axis
• Compatible with DJI Ronin 2, Ronin-S, and third-party gimbals via SBUS
• Wireless range: 1.8 miles / 3 km; Wired range: 98' / 30 m
• 10 ms low-latency control
• High-precision optical encoders and advanced control algorithms
• Savable and repeatable camera moves
• Three-stop toggle switches for gimbal direction; dials for speed, smoothness, and damping
• Dual-frequency 2.4 & 5.8 GHz wireless transmission
• Self-heating batteries: 2 × TB50, 18-hour battery life, operation down to -4°F / -20°C
• Adjustable center wheel position; detachable wheel modules for flexible setups
• Standard Mitchell mount with 1/4"-20 and 3/8"-16 accessory threads
• Built-in display screen for quick monitoring and configuration
