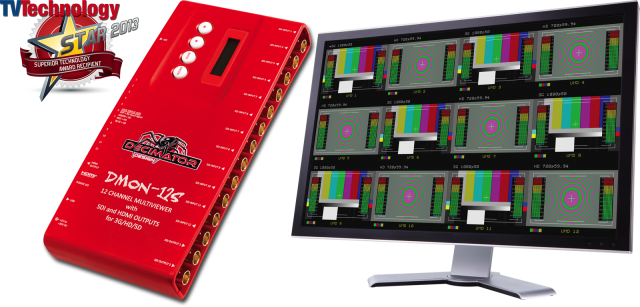

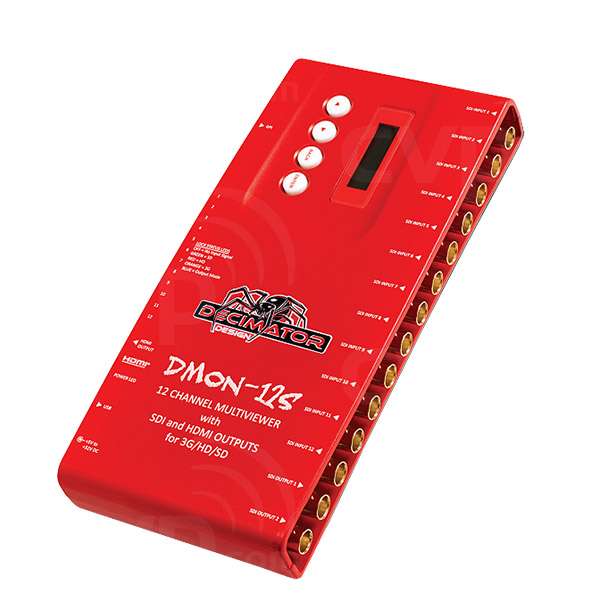

Decimator Design DMON-12S

1 to 12 Channel MultiViewer
with SDI and HDMI outputs for 3G/HD/SD
and Custom Layouts

More information

1 500 € with VAT 1 250 € without VAT
-+
Availability
14-30 days
Manufacturer
Free transport when purchasing this product
SKU:
DD-12S
Add to Compare
Product description

Product description

1 to 12 Channel MultiViewer
with SDI and HDMI outputs for 3G/HD/SD
and Custom Layouts

Specifications:

  • Low cost miniature (3G/HD/SD)-SDI 10 to 1 Multiviewer or 10 to 1 input multiplexer
  • Various multiviewer layouts
  • Selectable output format in Multiviewer mode
  • Low latency buffering for each input allowing non-synchronous inputs
  • Linked (3G/HD/SD)-SDI and HDMI outputs
  • 10 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
  • Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
  • Variable aspect ratios per quadrant
  • Pass-Through mode allowing any of the 10 inputs to be selected for output
  • In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs
  • This unit also includes:
      -  32 GPI
      -  USB port for control and firmware updates
      -  Heavy duty metal box
      -  Metal Thread Locking DC Power Socket
      -  Power Supply, HDMI Cable and USB Cable
Parameters

Parameters

Manufacturer:
Category: Multiviewer

Main parameters

Resolution multiviewHD
Resolution multiviewSD
Number of inputs multiview12
