Datavideo CG-Pro 4K Real-Time Graphics System

  • Free transport
SKU: 2400-1070

The Datavideo CG-Pro is a 4K real-time graphics and character generation system designed for live production, delivering lower-thirds, tickers, clocks, animated logos, and full-frame graphics with seamless integration into Datavideo switchers and flexible keying options.

More information

3 939 € with VAT 3 255.37 € without VAT
Add to Compare Price history
Availability
on request
SKU:
2400-1070
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Datavideo CG-Pro is a 4K real-time graphics and character generation system designed for live production, delivering lower-thirds, tickers, clocks, animated logos, and full-frame graphics with seamless integration into Datavideo switchers and flexible keying options.

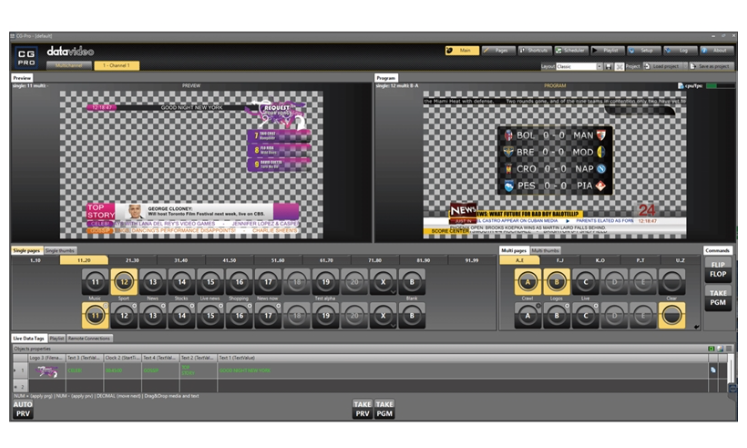

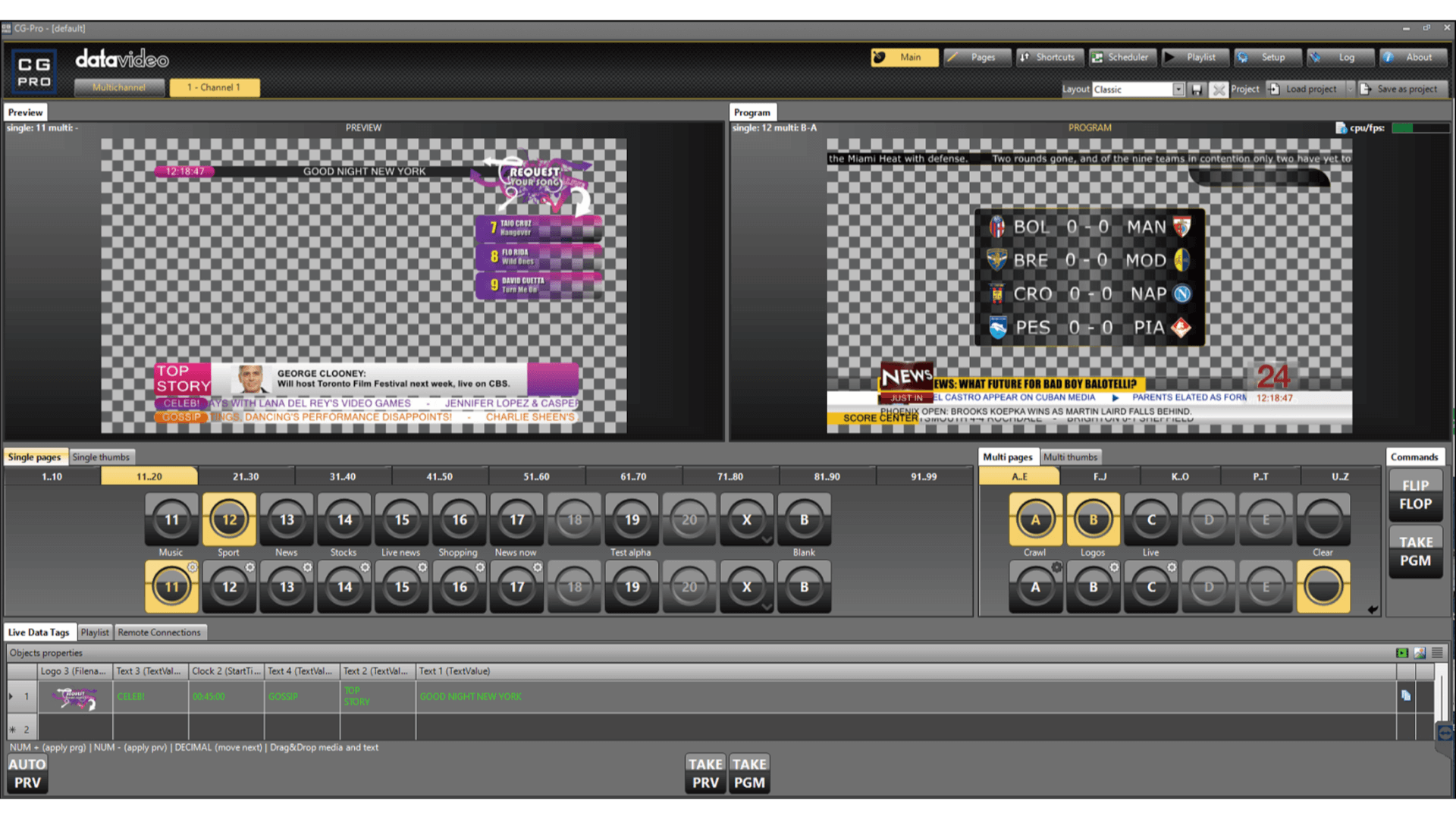

Datavideo CG-Pro PVW and PGM interface for preparing live graphics

Real-time graphics

Datavideo CG-Pro creates titles and graphics for live production. Prepare 4K, HD or SD lower-thirds, tickers, clocks, animated logos and full-frame graphics, then take them to air from a clear PVW/PGM interface.

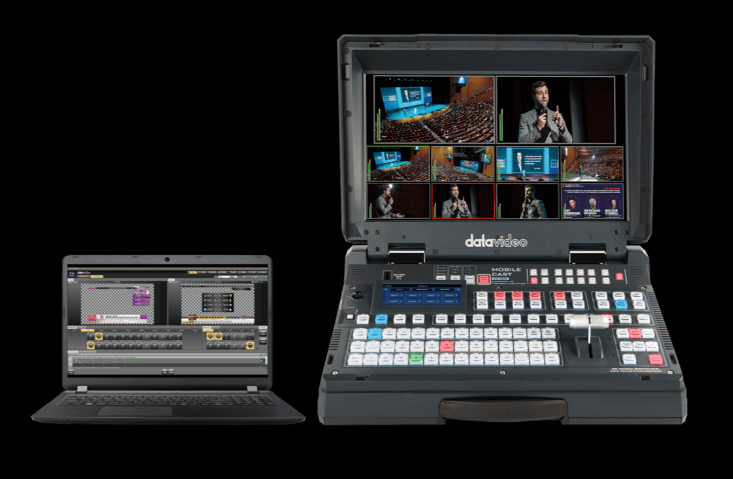

CG-Pro runs on a laptop whose HDMI output connects to a Datavideo switcher. It supports internal video-in/out keying or external Key/Fill and is optimized for the SE-4000 series.

4K / HD / SD10-bit / alpha channel

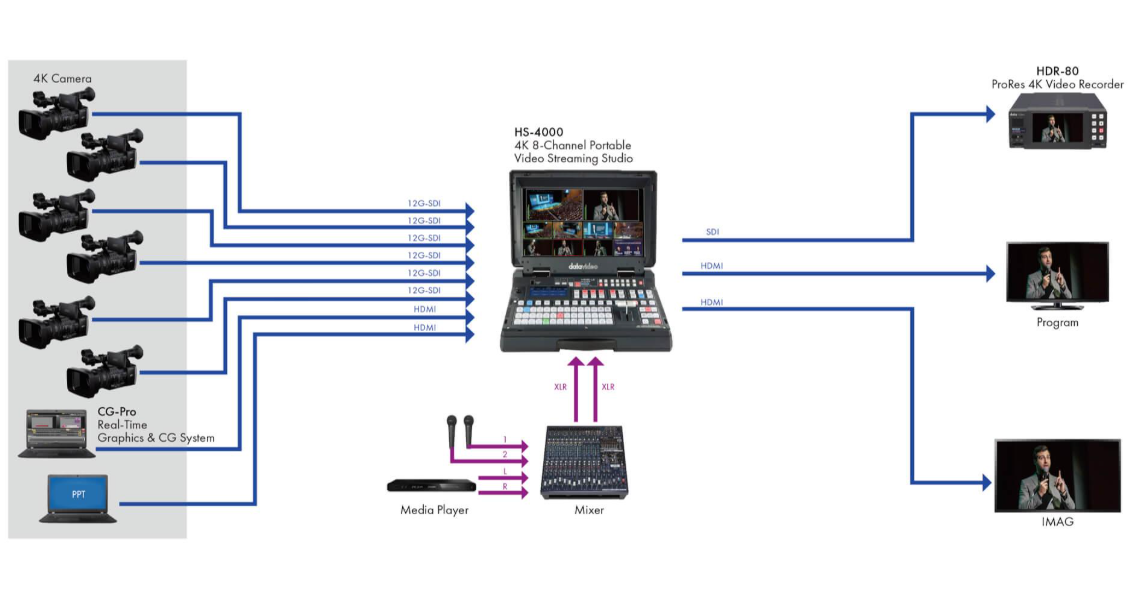

From laptop to live production

Connect the CG-Pro laptop output to a switcher over HDMI. The switcher combines the graphics with cameras, audio and other sources. The illustrated setup uses the Datavideo HS-4000; CG-Pro is also optimized for the SE-4000 series.

The multi-layer editor supports unlimited layers and templates, timed in/hold/out, and page hotkeys. Its PVW/PGM interface offers four control layouts and customizable dockable panels.

Live edits can go on air without interrupting the programme. TXT, CSV, RSS, Excel and XML data inputs preserve fonts, colors, alignment, hyperlinks and formulas when refreshed; newsroom workflows also support MOS/NRCS.

PACKAGE CONTENT

  • Datavideo CG-Pro real-time graphics and character generation system ×1

SPECIFICATIONS

  • Graphics resolution: 4K / HD / SD; still and animated graphics
  • Graphic types: lower-thirds, tickers, clocks, countdowns, logos and full-frame graphics
  • Processing: 10-bit with alpha; anti-aliased text and smooth interlace-safe transitions
  • Transitions: fade, move, zoom and squeeze
  • Keying and audio: internal video-in/out or external Key/Fill; external mode supports embedded audio
  • Composition and control: multi-layer editor and templates, timed in/hold/out, page hotkeys, four layouts and dockable PVW/PGM panels
  • Data sources: TXT, CSV, RSS, Excel and XML; live updates preserve fonts, colors, alignment, hyperlinks and formulas
  • Media support: TGA, PNG, TIF and GIF; ProRes, DNxHD, H.264, H.265 and AV1; MOV, MP4, MXF, AVI and WebM containers with automatic up/down-scaling
  • Output workflow: SDI, HDMI or NDI; internal keying or external Key/Fill
  • Newsroom and automation: MOS/NRCS, REST API, GPI, RS-232/MOXA, custom hotkeys and Stream Deck layouts
  • Compatibility: Datavideo switchers; optimized for the SE-4000 series
Parameters

Parameters

Manufacturer: Datavideo
Category: Software

Main parameters

Software typeFirmware / aplikace
CompatibilityDatavideo SE-4000 series switchers
