Datavideo CCU-200 HDBaseT Camera Control Unit

This product is no longer offered. Please select from the alternatives below.
Product description

Product description

Latest version of CCU system from Datavideo is now shipping worldwide!

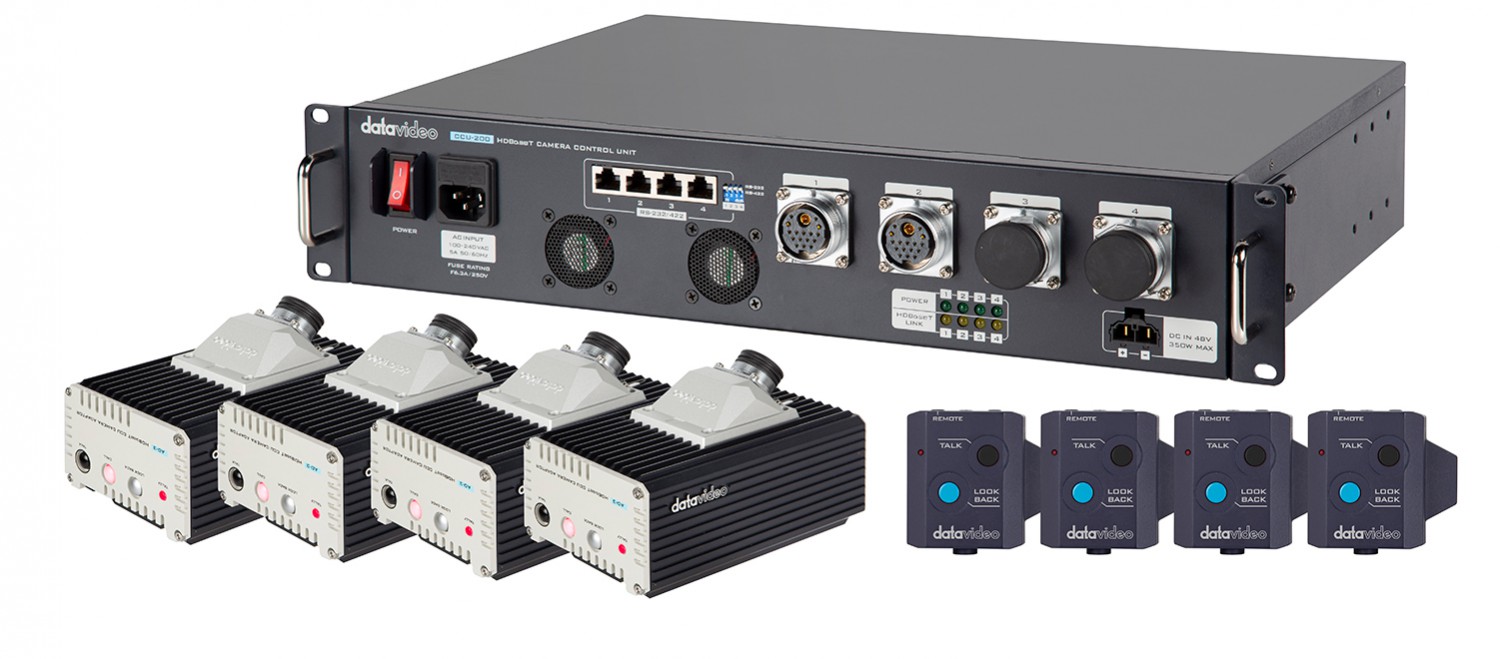

CCU-200 is an innovative CCU solution that is using HDBaseT to easily connect several Datavideo products into an effective and professional studio system. This CCU system is a complete solution including 4 AD-3 breakout boxes that mount on any V-mount.

Built-in HDBaseT technology allows receiving Full HD 1080p signals from Cameras via CAT6 cable with a maximum transmission distance of 100 meters when using the CB-66 cable. It is also able to provide power to cameras, thereby solving the problem of lacking power supply in the field in the event of long-distance transmission.

With a specific all in one cable CB-65 (50m) or CB-66 (100m), the CCU-200 system simultaneously handles video signals for camera video output, Program looks back video, camera control, tally and intercom signals between the cameras and a video switcher.

CCU-200 supports intercom coming from the ITC-300 intercom. This intercom can be connected with a network connection. CCU-200 also supports external camera control over RS-232 and RS-422. The system has transparent I/O available to connect your camera controller. Alternatively, CCU-200 can connect to the MCU-400 to control up to 4 Datavideo BC-100 cameras.

The supplied Datavideo AD-3 is a camera breakout box that allows connections between the CCU-200 and a camera with the operator. AD-3 provides the video output, headset signal, RMC-240 and camera control. The included RMC-240 lookback helps the camera operator to switch between live and program view on his lookback monitor.

Key Features
Control up to 4 cameras from one CCU-200 Camera Control Unit combine with
the supplied AD-3 and RMC-240 units.
Built-in HDBaseT technology to transmit video, audio, camera control signal with
maximum transmission distance of 100 meters.
Full HD 1080p video transmission from the camera
A return look back video signal from CCU-200 to AD-3 for the camera operator
Switch camera video and Lookback video at AD-3
Support PIP mode of camera video and Lookback video
Power to AD-3 by CCU-200
Remote control Iris, Focus, Gain and other functions of cameras
Two-way intercom with camera operators using an ITC-300 digital intercom system
