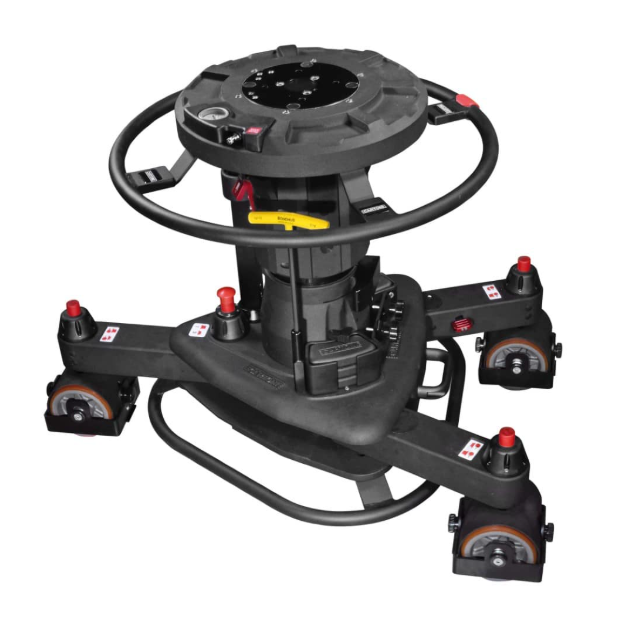

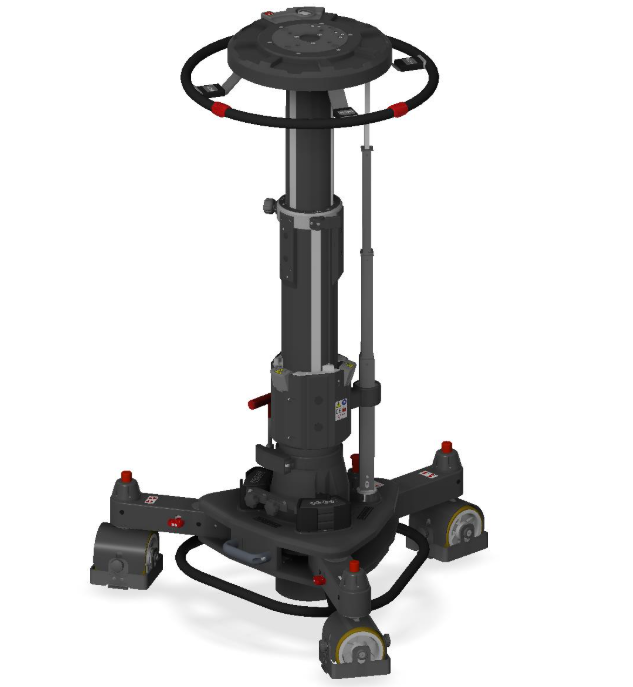

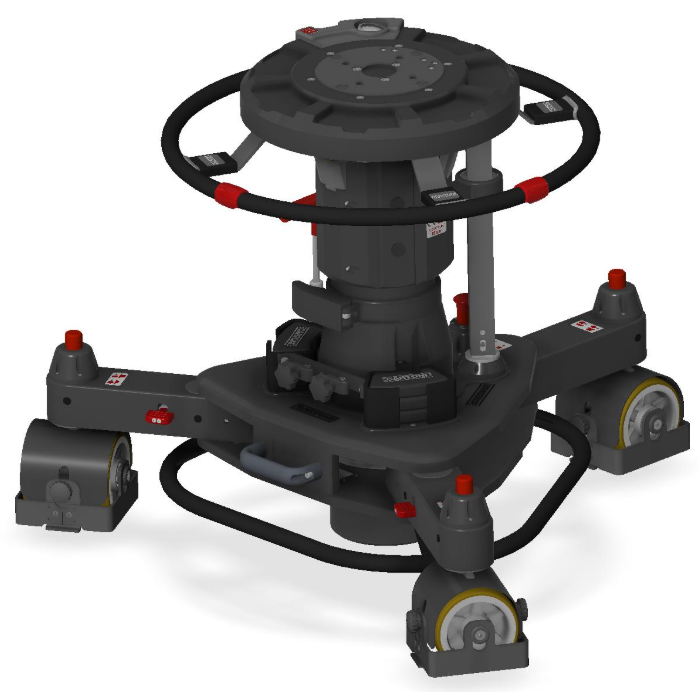

Cartoni P90 HP Pedestal

The Cartoni P90 HP Pedestal is a professional heavy-duty camera pedestal designed for studio and OB applications, supporting camera and lens configurations up to 90 kg (198 lbs). Featuring a smooth two-stage pneumatic column with 74 cm on-shot travel, precision steering wheels, and compact portability, it delivers exceptional stability, flexibility, and smooth camera movement for demanding broadcast productions.

The Cartoni P90 HP Pedestal is an extremely versatile professional camera support system engineered for high-end studio, outside broadcast (OB), and heavy-duty production environments. Designed to handle camera and lens combinations up to 90 kg (198 lbs), the P90 provides outstanding stability and smooth operation for large broadcast cameras and professional fluid heads.

The pedestal features a two-stage pneumatic column that delivers a smooth and precise 74 cm on-shot stroke, allowing operators to make controlled height adjustments during live productions. The innovative piston design simplifies balancing and eliminates complicated setup procedures, ensuring quick and reliable operation.

Built for maximum maneuverability, the P90 is equipped with a lightweight yet robust dolly system featuring high-precision double wheels connected by a specially designed chain mechanism. This provides accurate tracking, steering, and smooth movement even during on-shot operation. The available crab position allows easy navigation through narrow doorways and confined studio spaces.

All operational controls and displays are positioned for easy access by camera operators, improving workflow efficiency during production. The pneumatic column can be powered using standard compressed air from a compressor or a simple hand pump, offering flexible field operation.

The P90 HP Pedestal supports a wide range of professional camera heads through compatibility with flat base, 4-bolt hole heads, and bowl-based heads using suitable adapters. This configuration includes larger wheels designed specifically for demanding studio and OB van applications.

Key Features

• Professional heavy-duty camera pedestal for studio and OB applications
• Supports camera and lens combinations up to 90 kg / 198 lbs
• Two-stage pneumatic column with smooth height adjustment
• 74 cm on-shot stroke for dynamic camera movement
• Compact and portable pedestal design
• High-precision double wheels with chain-linked steering system
• Smooth tracking and accurate steering during shots
• Crab steering mode for narrow doorways and tight spaces
• Large 160 mm width wheels for heavy-duty studio and OB use
• Simple pneumatic operation using compressor or hand pump
• Innovative piston design eliminates complex balance adjustments
• Compatible with flat base, 4-bolt, and bowl-based fluid heads using adapters
• Easy-access operating controls and display for camera operators
