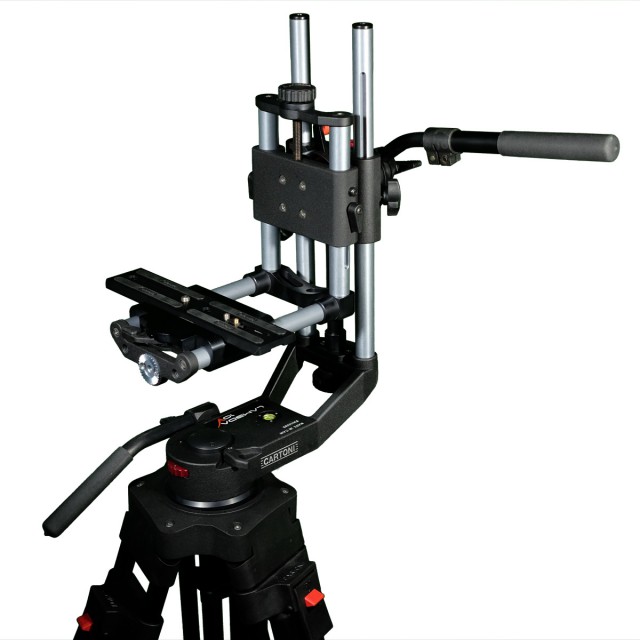

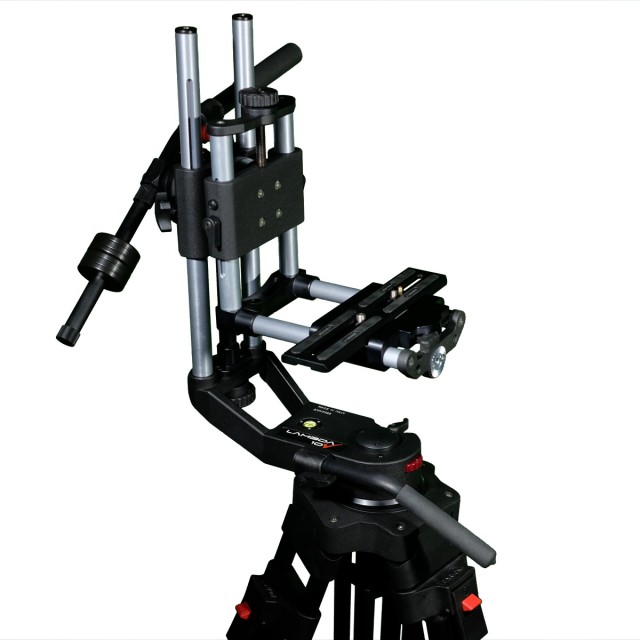

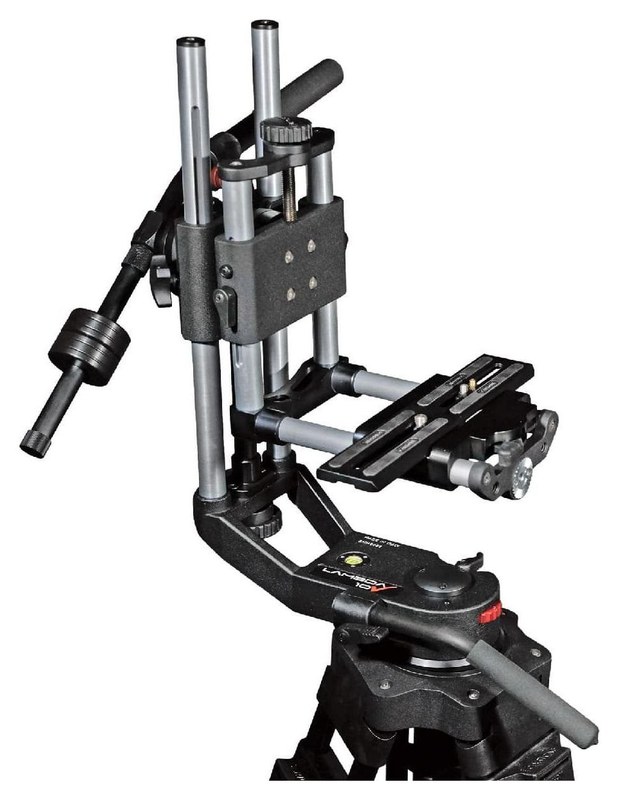

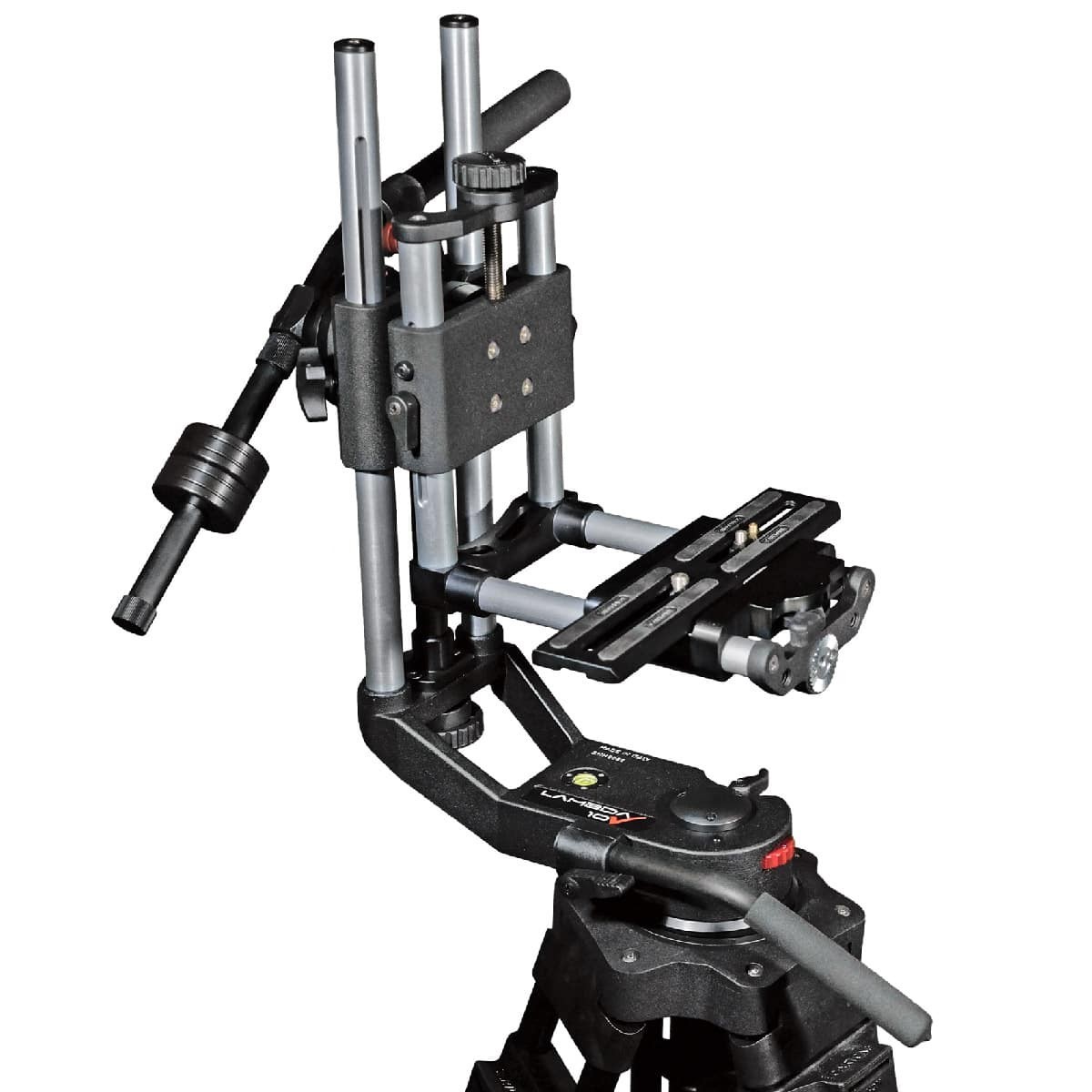

Cartoni Lambda 10 Nodal Head
SKU: HL1000
The Cartoni Lambda 10 is the most compact of the Cartoni nodal heads, for cameras up to 10 kg. Its L-shaped aluminium tubes with sliding adjustment let you centre the camera perfectly, so no counterbalance is needed: once set on its centre of gravity, the camera moves freely in pan and tilt. Two patented fluid modules give 3 steps plus 0.
3 879 € with VAT
3 205.79 € without VAT
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs
Praha 1 pcs
Top accessories for Cartoni Lambda 10 Nodal Head
Cartoni Bazooka Basket
Cartoni AH845 is a basket for the Bazooka column with a 100 mm bowl. It fits the
393 €
In stock 2 pcs
Cartoni AH904 Long Camera Plate
The Cartoni AH904 long camera plate for the Focus 8S and Focus HD fluid heads, the
155 €
In stock 1 pcs
Cartoni T723/S EFP Minibaby 100 Tripod
The Cartoni T723/S EFP Minibaby 100 is a 1-stage aluminum tripod in the Minibaby
829 €
In stock 1 pcs
Cartoni AH905 Rail Clamp for 75/100 mm Bowl Base Heads
The Cartoni AH905 Rail Clamp mounts a fluid head on set scaffolding, hand rails,
849 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Cartoni Lambda 10 is the most compact of the Cartoni nodal heads, for cameras up to 10 kg. Its L-shaped aluminium tubes with sliding adjustment let you centre the camera perfectly, so no counterbalance is needed: once set on its centre of gravity, the camera moves freely in pan and tilt. Two patented fluid modules give 3 steps plus 0.
A nodal head for tight spaces
The Lambda 10 has a 100 mm bowl and fits any 100 mm bowl base. It is ideal for tabletop work, medical documentaries and underslung use from jib arms, cranes, sliders or dollies, and it matches the Cartoni JibO perfectly.
up to 10 kg100 mm bowl3-step drag + 06 kg

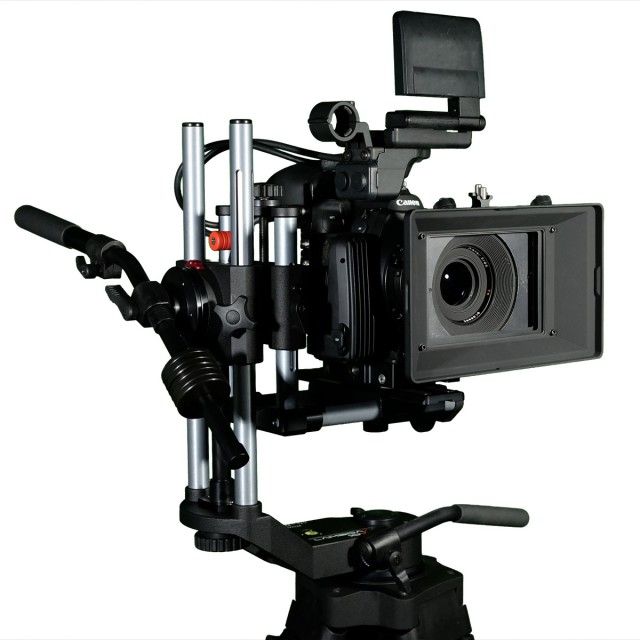

The camera turns around its nodal point
Once centred on its centre of gravity, the camera rotates exactly around its optical centre, so pans and tilts stay free of parallax – ideal for effects and composited shots.
No counterbalance needed
A balanced camera moves freely, so the head needs no counterbalance.
Two fluid modules
Patented Cartoni modules offer three drag steps plus 0 for free movement.

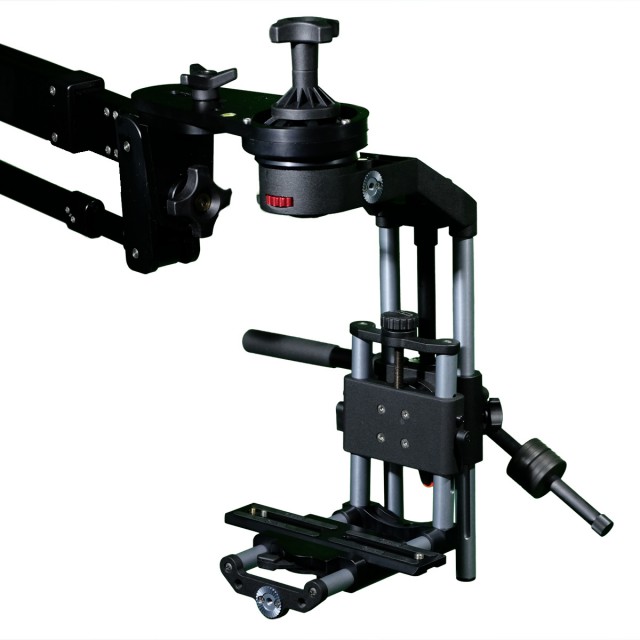

Underslung use
The head can be used underslung from cranes, jib arms or on dollies, giving positions a conventional head cannot reach.
Matches the Cartoni JibO
The Lambda 10 is an ideal head for the Cartoni JibO arm.

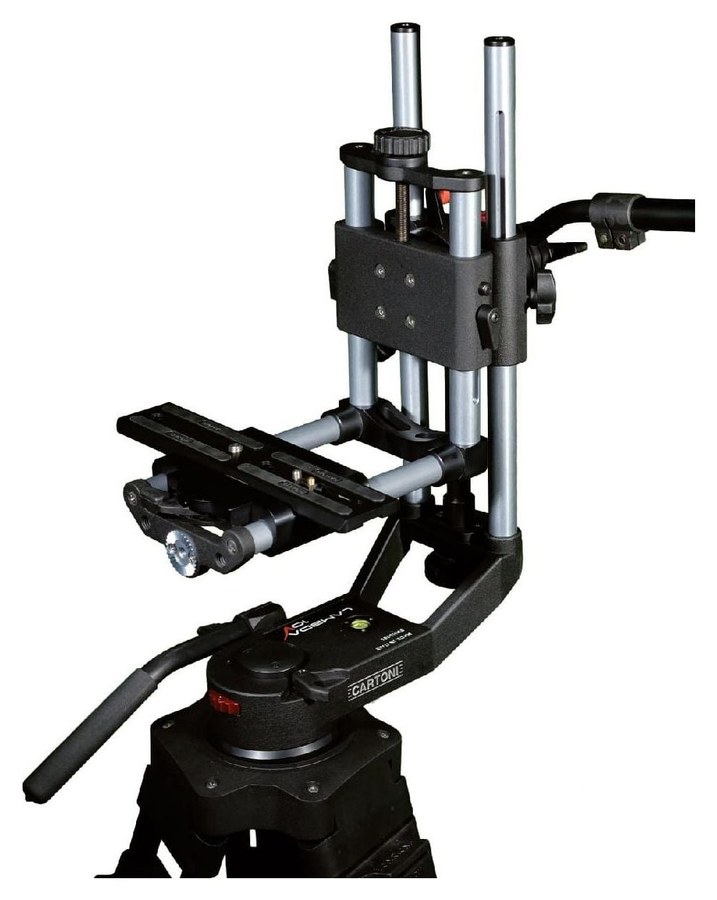

L-shaped frame
Sturdy aluminium tubes form an L-shaped frame along which the camera slides into its centre of gravity.

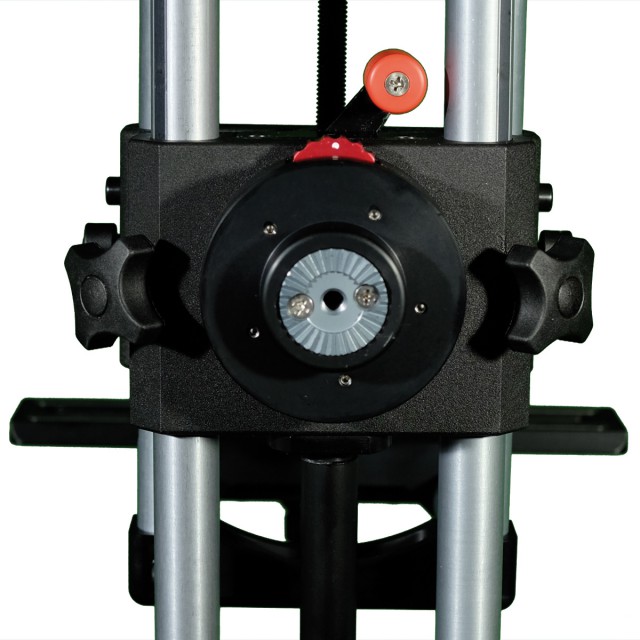

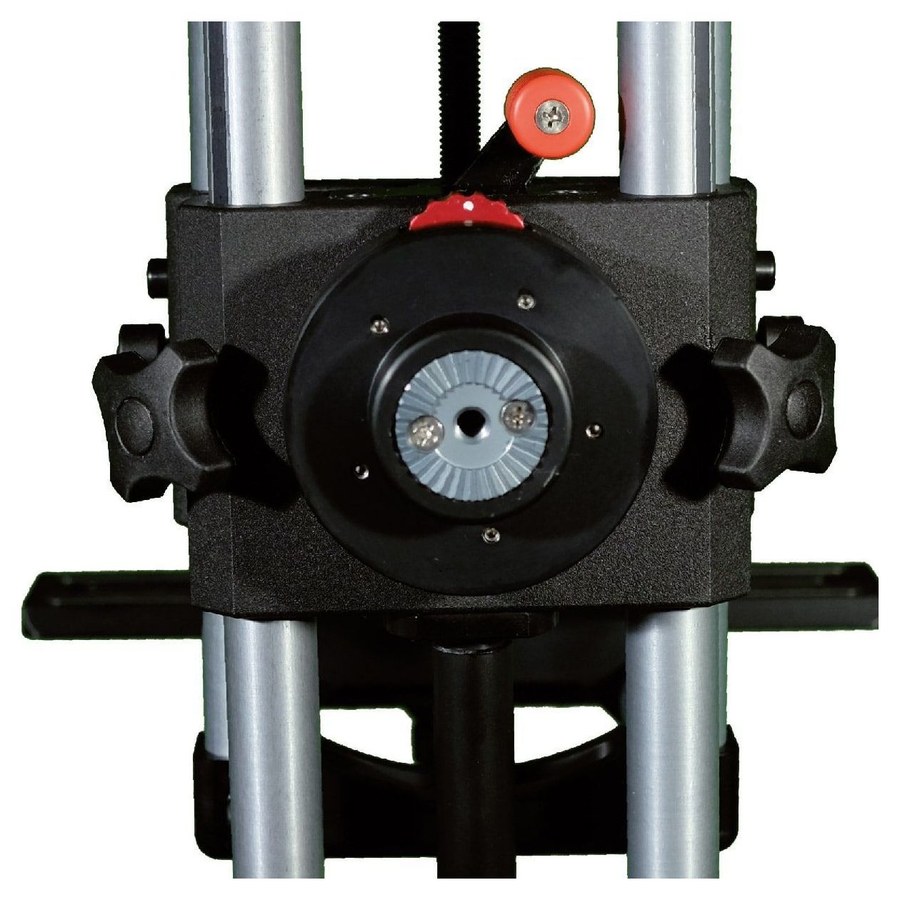

Sliding adjustment
Sliding blocks on the tubes let you fine-tune the camera position until it is perfectly balanced.
PACKAGE CONTENT
- Lambda 10 nodal head
- telescopic pan bar Lambda 10
- short pan bar Lambda 10
- counterweight Lambda 10
- tie-down knob (Focus 8 / Lambda 10)
SPECIFICATIONS
- Payload: up to 10 kg
- Weight: 6 kg
- Base: 100 mm bowl
- Fluid drag: 3 steps + 0
- Pan range: 360°
- Tilt range: 360°
- Type: nodal head
- Operating temperature: −40 to +60 °C
- Manufacturer code: HL1000
WE RECOMMEND
Recommended for the Cartoni Lambda 10 Nodal Head:
Tripods – legs with a matching bowl or flat base
Mounting and adapters – rail clamp, hi-hat basket and adapters for pedestals, sliders and tripods
Head add-ons – camera plates, counterweights and third axis
