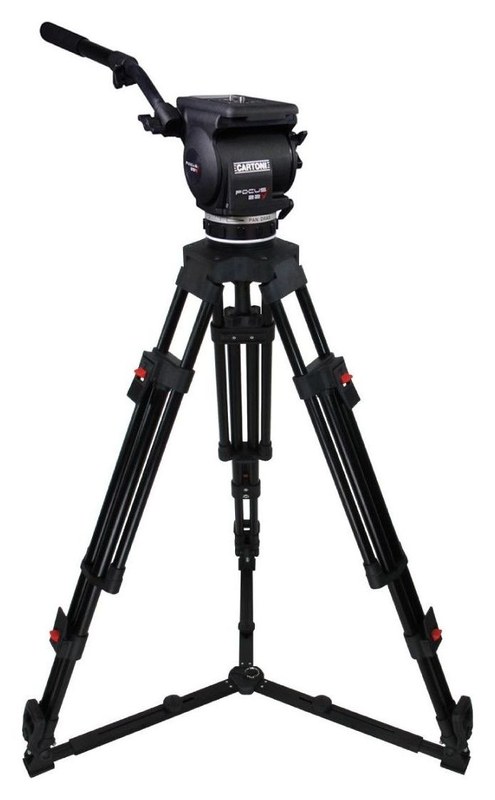

Cartoni Focus 22 EFP 2-St CF System GS

The Cartoni Focus 22 system combines the Focus 22 fluid head with a 2-stage carbon fibre EFP 2st. Carbon 100 tripod and a ground spreader; a padded bag is included. It carries cameras up to 25 kg and the complete system weighs 9.2 kg. It is aimed at documentary and broadcast professionals using heavier digital cinema and broadcast cameras from Arri, Red, Blackmagic Design, Canon or Sony.

Focus 22 on the EFP 2st. Carbon 100 tripod

Made from lightweight magnesium alloys and high-resistance composites, the Focus 22 fluid head weighs just 3.9 kg and features the patented Cartoni wing continuous counterbalance and patented continuous fluid drag on both axes.

up to 25 kg payload100 mm bowlheight 67–172 cmweight 9.2 kg2-stage carbon fibre

The widest range of the Focus line

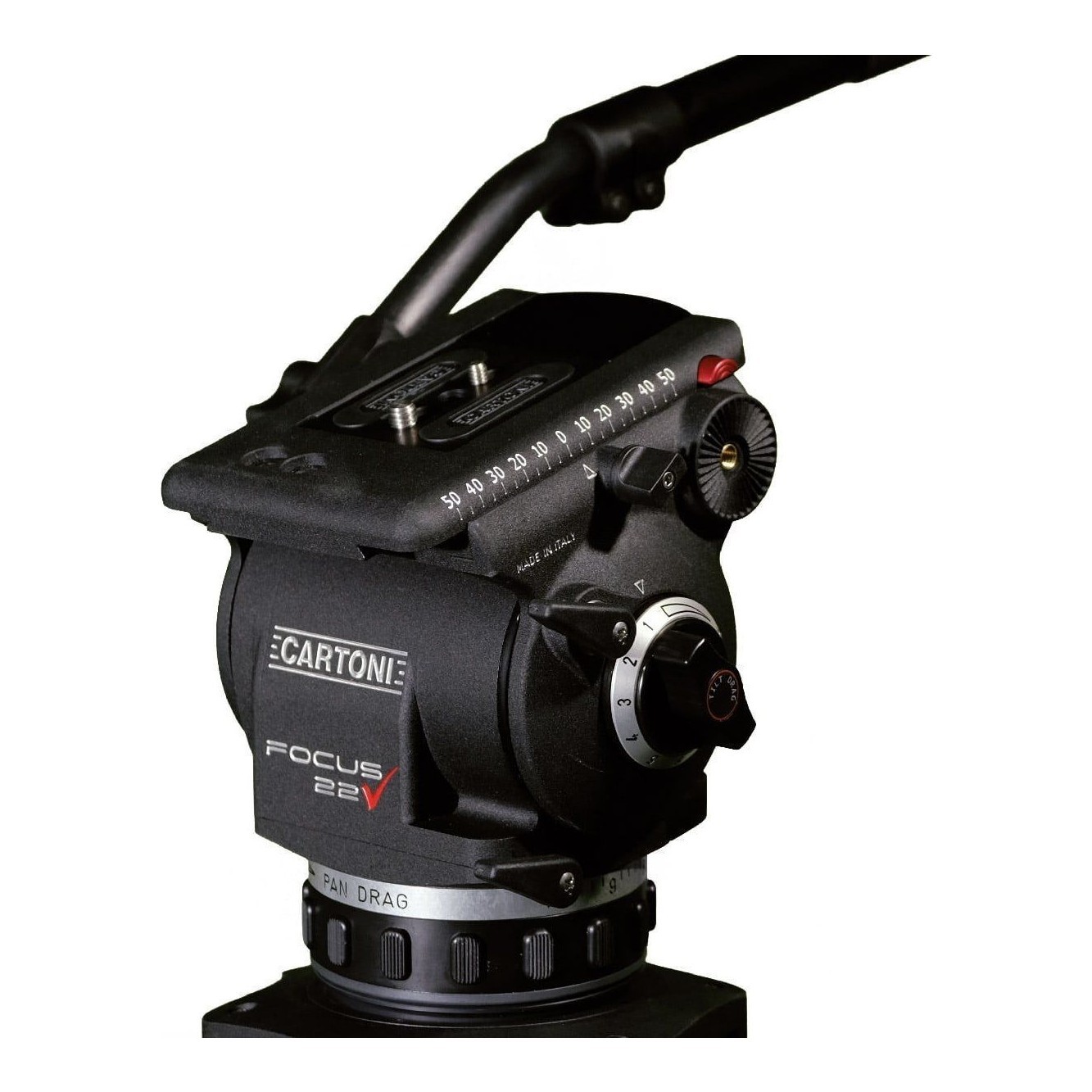

Focus 22 is the most advanced head of the Focus line: it carries up to 25 kg, and the patented wing counterbalance is set continuously against a numerical scale.

Up to 25 kg

The highest payload in the Focus line for fully equipped cameras.

±90° tilt

Operation from −40 to +60 °C, illuminated bubble level and a Euro-style quick release plate.

Two stages in carbon

Carbon fibre EFP tripod with a 100 mm bowl and an 80 kg capacity.

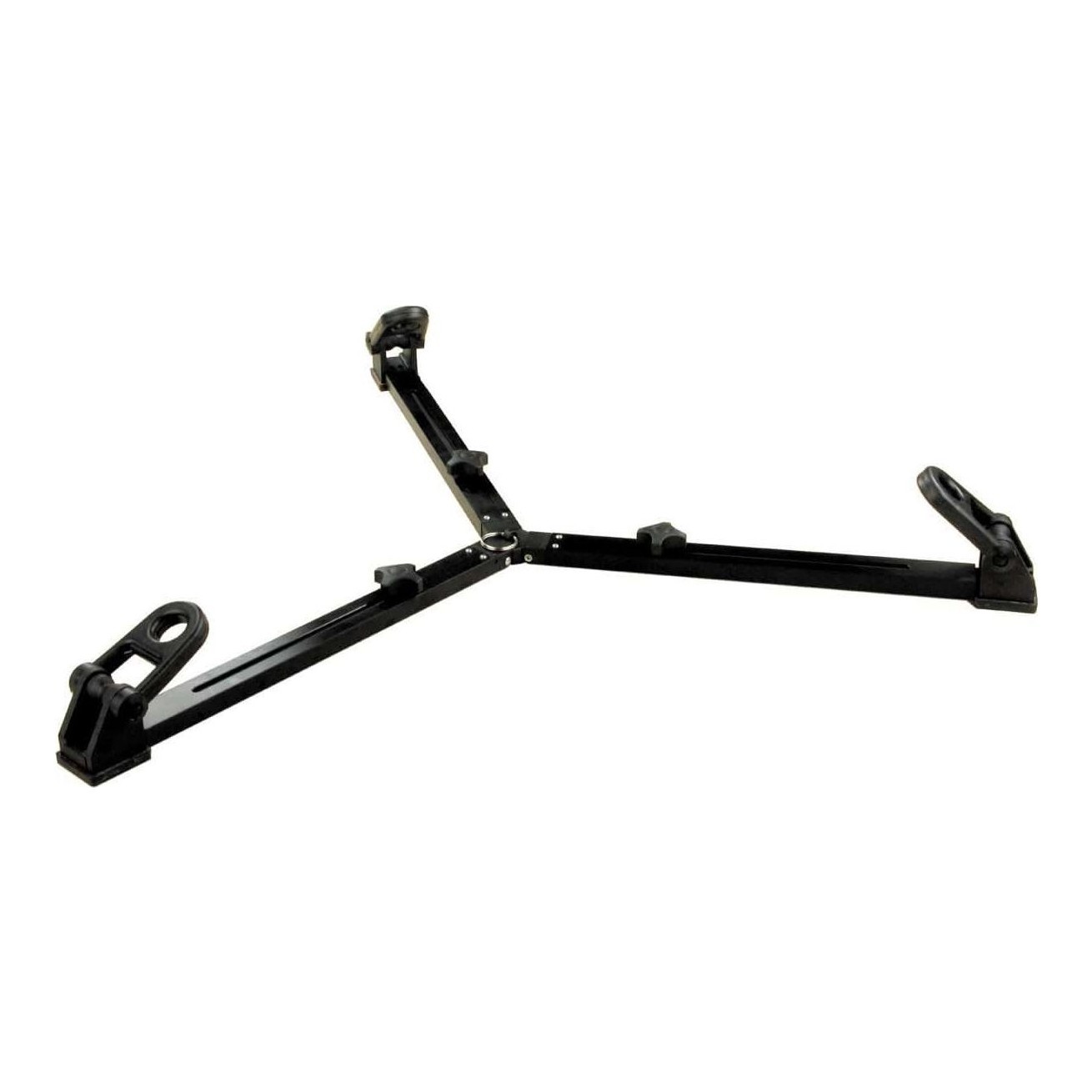

Ground spreader

Links the tripod legs at floor level and holds their spread.

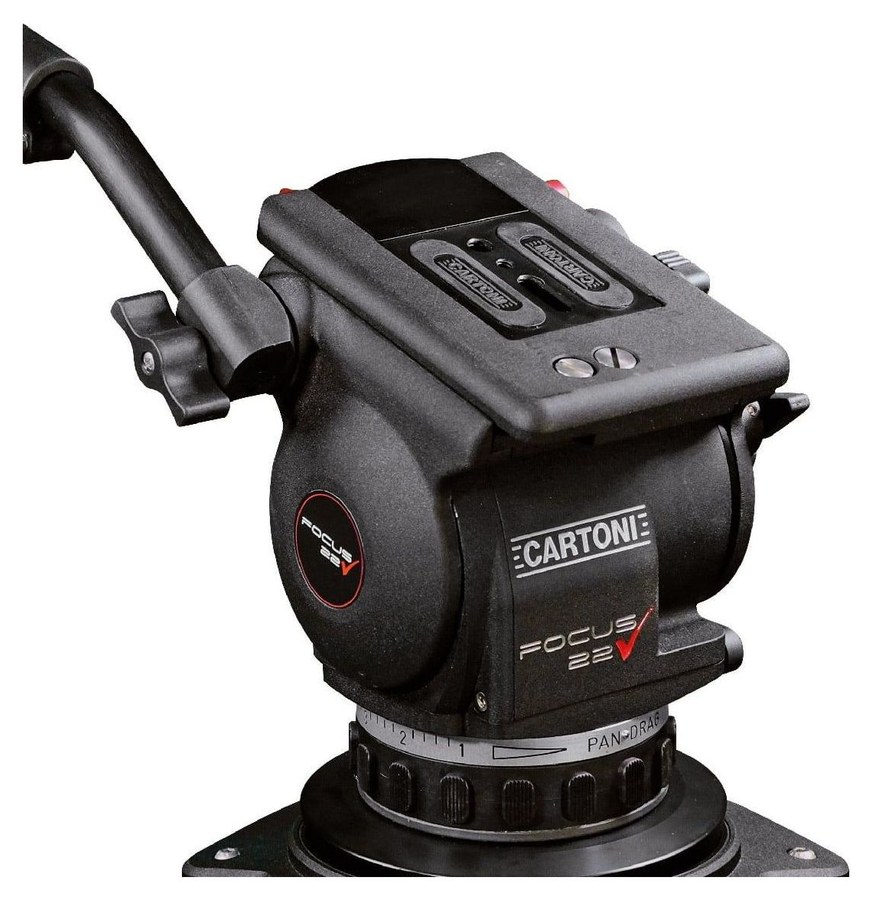

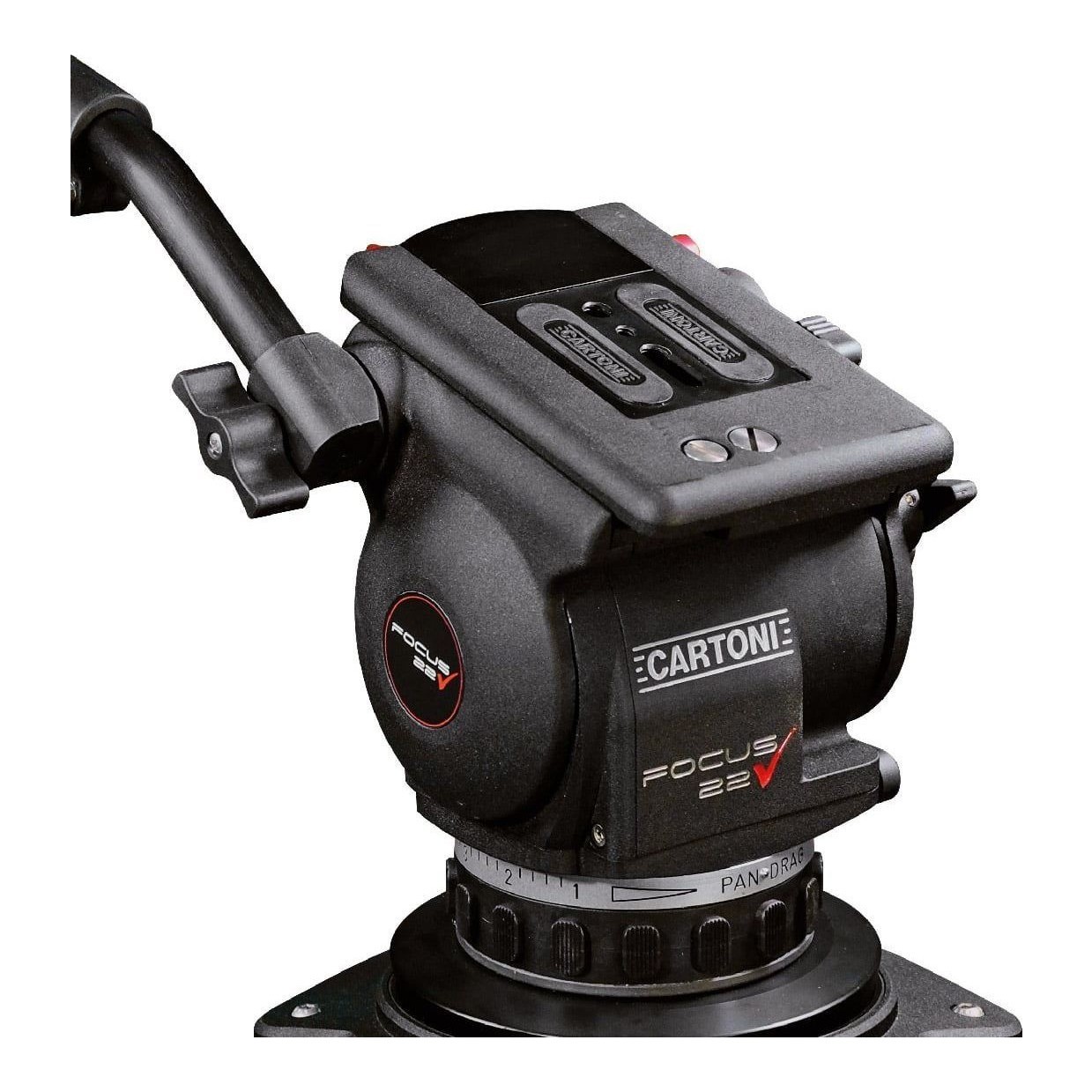

Focus 22 fluid head

100 mm bowl and telescopic pan bar; the AH869 adapter fits it to the Cartoni P20 pedestal, the AT854 reduction ring to 150 mm tripods.

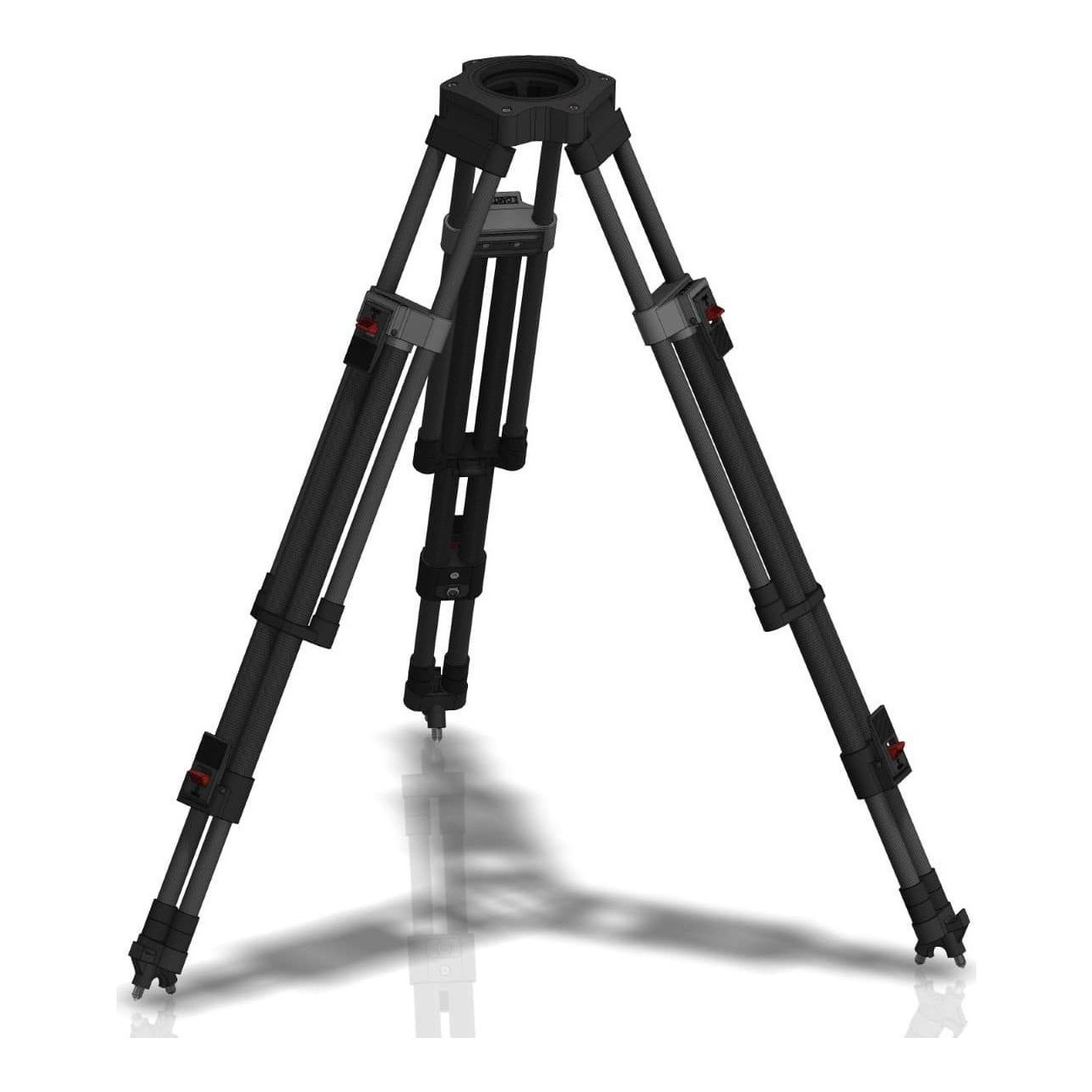

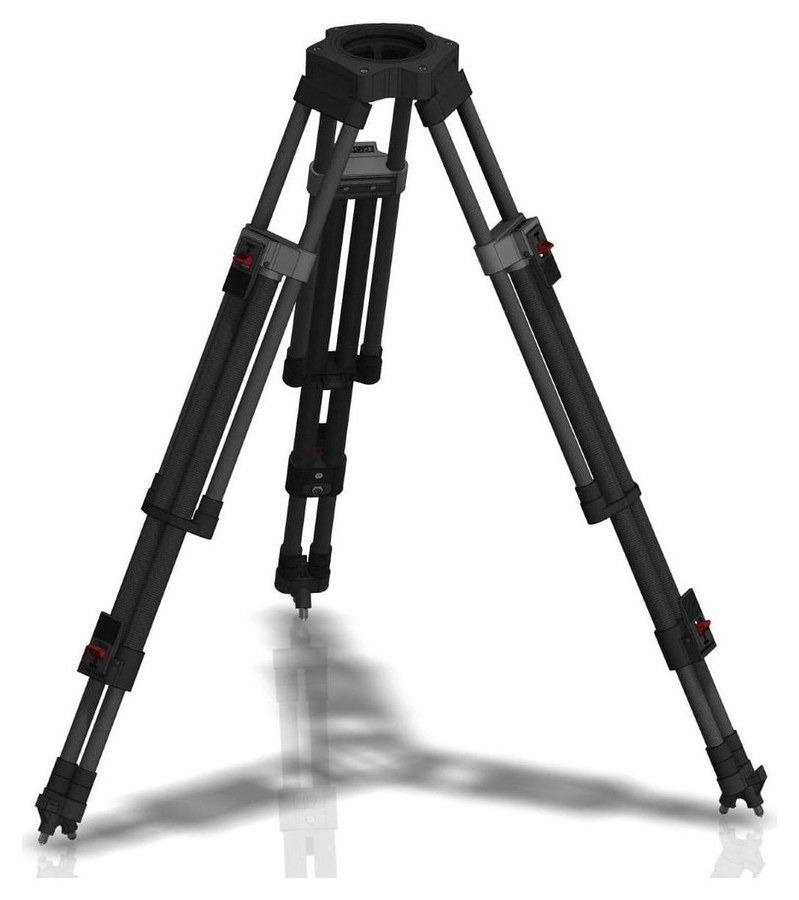

EFP 2st. Carbon 100 tripod

Two-stage carbon fibre legs, elastic washers and a self-adjusting steel connection virtually eliminate torque even with heavy drag.

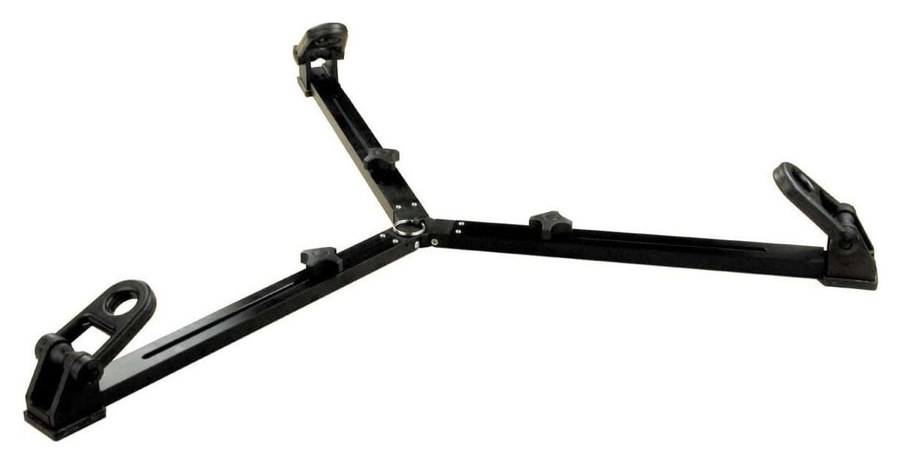

Ground spreader

The standard Cartoni ground spreader for Red Lock, SDS and EFP tripods connects to the ball foot couplings of the legs.

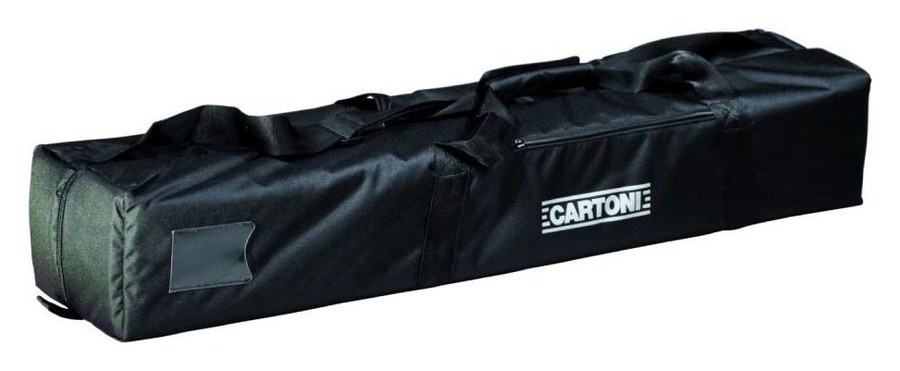

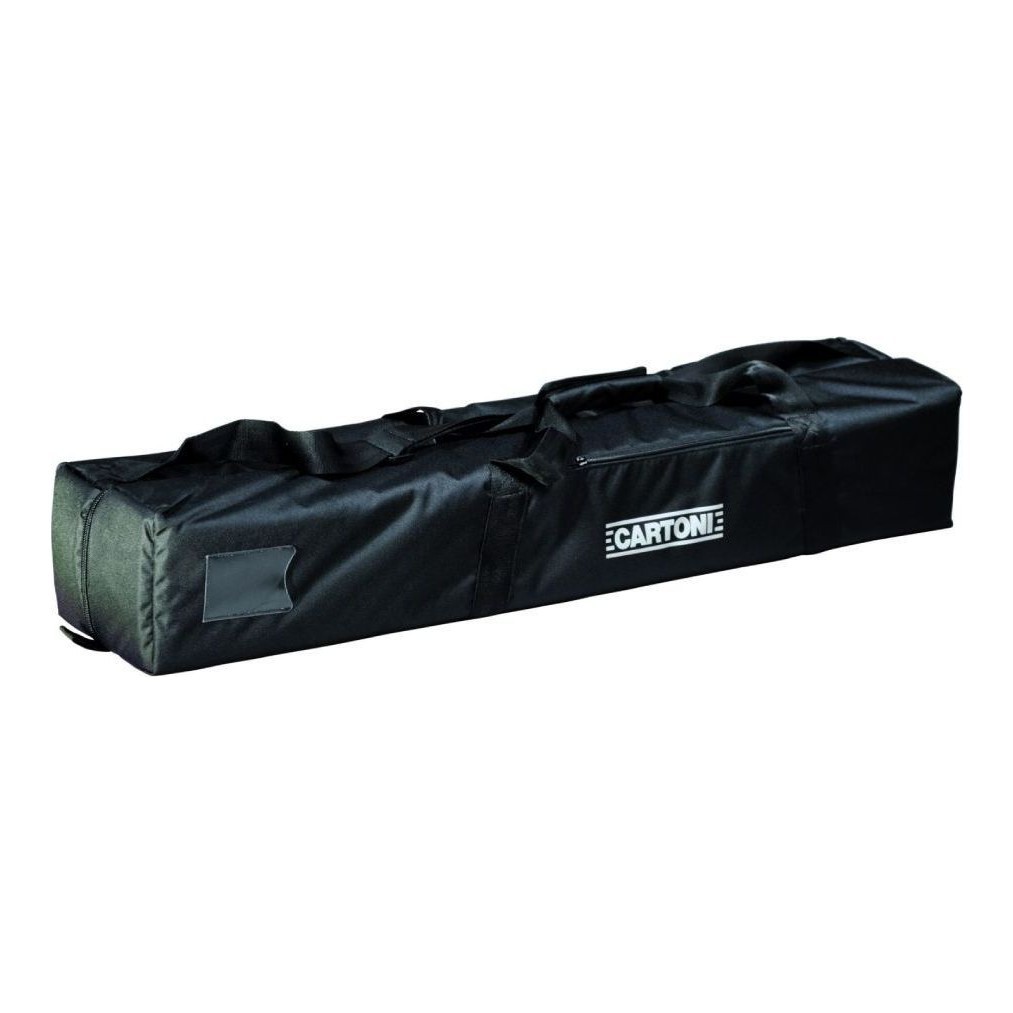

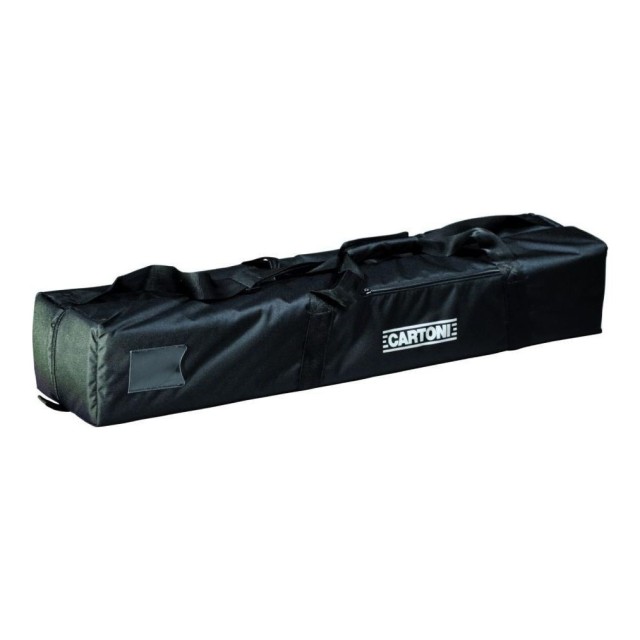

Padded bag

A fully padded soft bag for 2-stage systems.

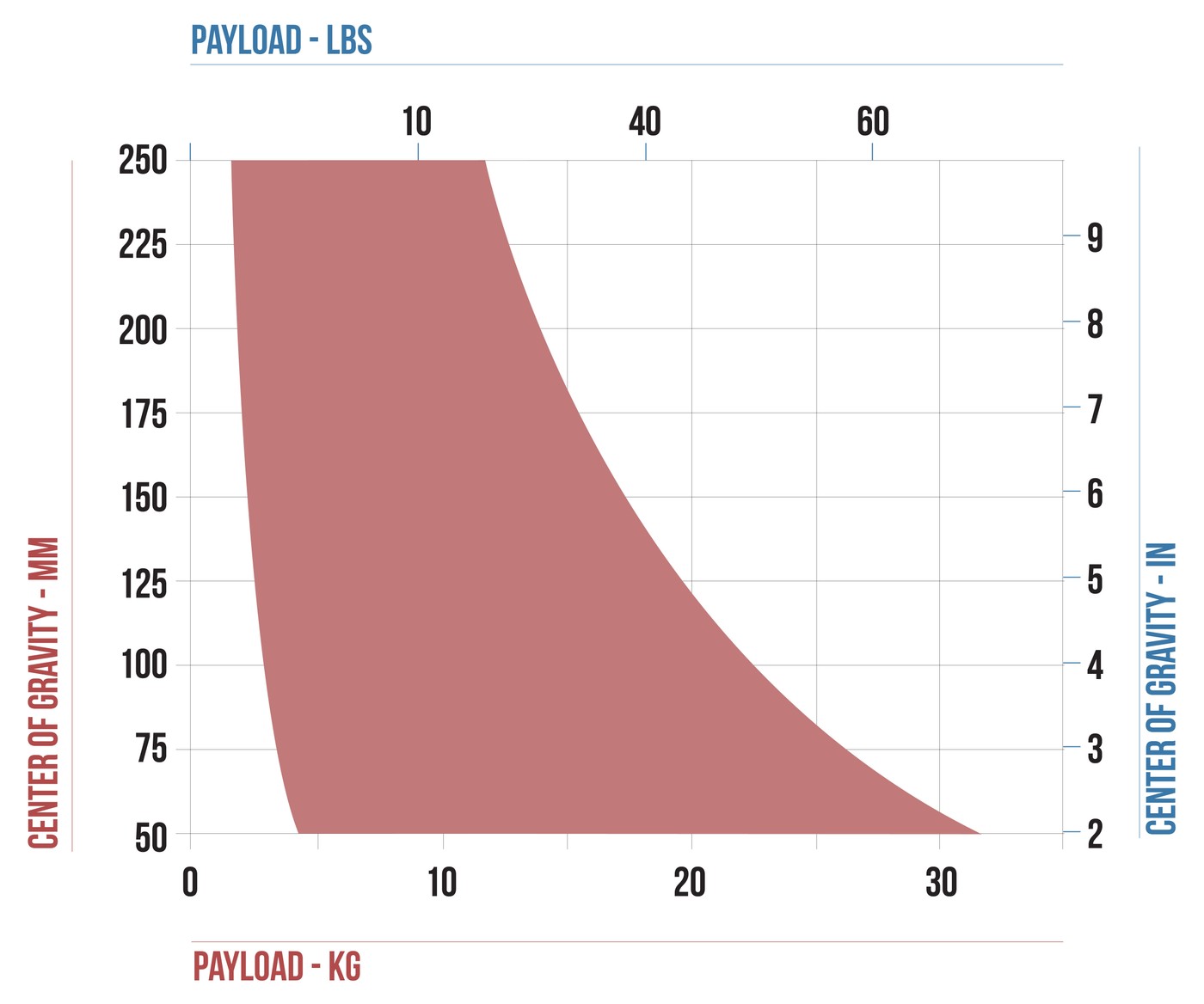

Payload range

The chart shows how much camera weight the Focus 22 head balances depending on the height of the centre of gravity above the plate.
