Cartoni 3-Way Leveller

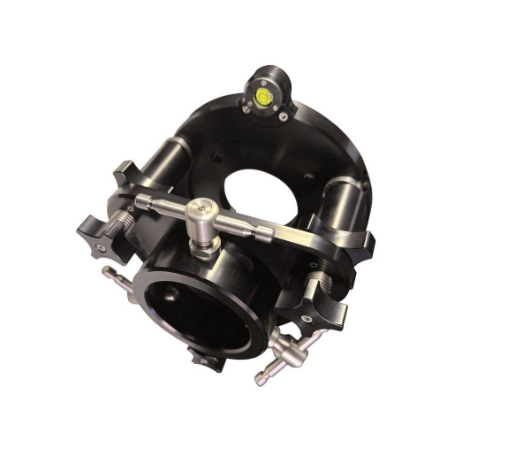

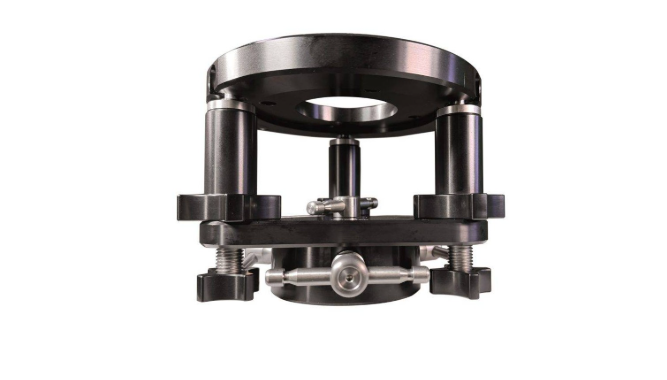

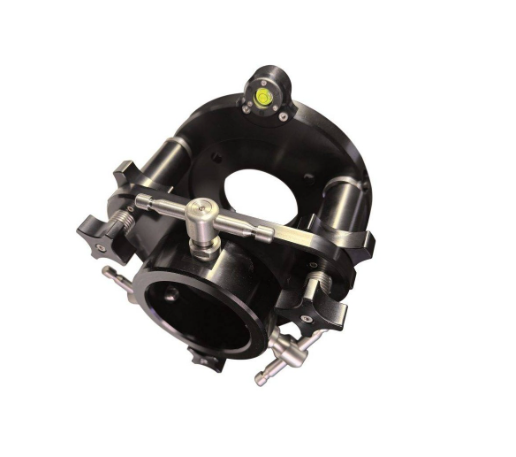

Cartoni AH894 is a 3-way leveller for flat base fluid heads on the European attachment of dollies and Bazooka risers. Three adjusting screws with a spirit level bring the head level right on the dolly or riser, where there is otherwise no way to level it. It carries 100 kg (220 lb), weighs 3.7 kg (8.2 lb) and measures Ø 190 × 141 mm, so it fits even tight studio and OB rigs.

Level where there is no bowl

Flat base heads do not sit in a bowl on a dolly or Bazooka riser, so there is nothing to level them with. The AH894 leveller fills that gap and carries even heavy studio rigs.

100 kg payload3.7 kg weightØ 190 mmFlat base

Three points, one plane

The adjusting screws and spirit level set the head precisely level, even under a heavy camera.

European attachment

Fits dollies and Bazooka risers with the European attachment.

For flat bases

Carries flat base fluid heads up to 100 kg.

Spirit level and screws

The spirit level on the top plate shows which screw to turn.

Solid build

The rugged body of the leveller transfers the load to the dolly.
