Canare RCAP-C3A
SKU: CNRRCAPC3A

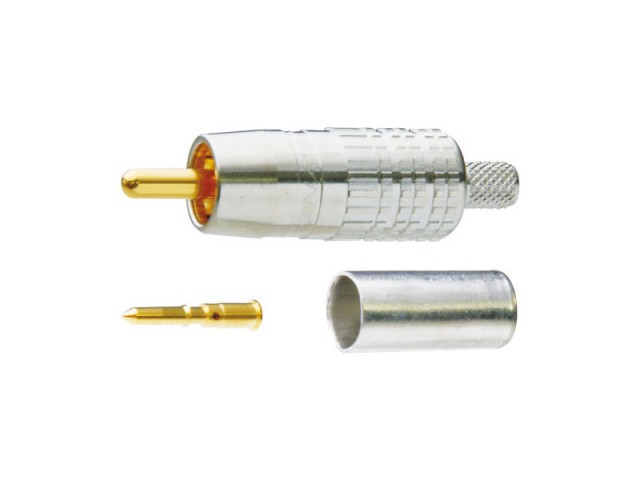

Canare RCAP-C3A is a 75 ohm RCA Connector, Straight Plug
6.53 € with VAT
5.4 € without VAT
Availability
Shipment day: 30. 04.
Shipment day: 30. 04.
To be sent > 5 pcs
Bratislava > 5 pcs
Bratislava > 5 pcs
Top accessories for Canare RCAP-C3A
Canare TCD-35CA crimp die
Canare TCD-35CA Die Set for the Canare L-2.5CHWS, L-2.5CFB, L-3C2VS, L-3CFB, V-3C,
130.44 €
In stock 2 pcs
Product description
Product description
Canare RCAP-C3A is a 75 ohm RCA Connector, Straight Plug
Canare RCAP-C3A is a 75 ohm RCA Connector, Straight Plug
Applications:
- Multimedia Patchcords
- Hi-Res Video Monitors
- SPDIF Digital Audio
- Duplication Decks
- VCR and Camcorders
- Audio Interconnects
- Home Theater Installations
Features:
- Standard 75 ohm construction Crimp Pin & Sleeve
- DC to 200MHz >26dB Return Loss (<1.1 VSWR)
- Absolutely No Soldering Required
- Assembly Time Reduced by 80%
- Superior cable pull strength
- Internal Pressure Contact Fingers
- Gold plated center Shaft
- Operating temperature -20 to +60 degrees Celsius
Parameters
Parameters
| Manufacturer: | Canare |
| Category: | Video connectors |
Main parameters
| Suitable cable | L-3C2VS |
| Type | RCA |
Other parameters
| Version | On the cable |
| Version | Crimp |
| Version | Male |
