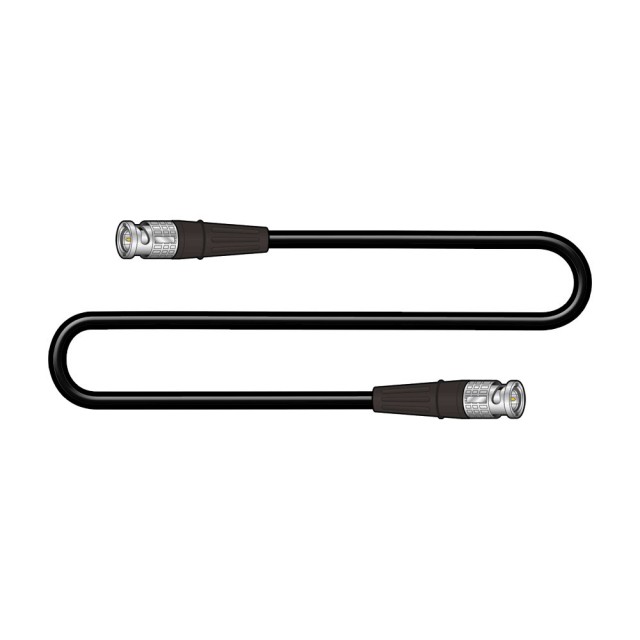

Canare L-5CFW Flexible 3G/HD-SDI cable BNC 90m
SKU: CV-5W-M/M-BLK-90
This product is no longer offered. Please select from the alternatives below.
Top accessories for Canare L-5CFW Flexible 3G/HD-SDI cable BNC 90m
Adhesive tape Gaffa black 50m
Adhesive tape Gaffa black, matt finish. Width 50 mm, tape length 50m.
12 €
In stock 3 pcs
Amphenol BNC rectangular adapter / coupler
Rectangular BNC (M) male to BNC (F) female 75 ohm adapter/coupler .
11 €
In stock 4 pcs
Canare BCJ-JRK 12G-SDI Panel Mount Bulkhead BNC Receptacle
Panel Mount Bulkhead BNC Receptacle
4.8 €
In stock 1 pcs
Stage Tape Neon Pink 19mm, 25m
Gaffa tape fluorescent, width 19mm length 25mm
7.3 €
In stock > 5 pcs
HT-2206 extraction tool for BNC connectors
Suitable for assembly and disassembly of BNC connectors in hard to reach places,
16 €
To be sent > 5 pcs
Product description
Product description
Canare L-5CFW BNC (M-male) / BNC (M-male)
Specifications:
- Standard manufactured lengths: 100/200m
- Sheath diameter (overall diameter) in mm: 7.7
- Cable weight in kg/100m: 8.1
- Central conductor - number and diameter of cores in mm: 1/1.05
- Total diameter of central conductor in mm: 1.05
- Foam dielectric - diameter in mm: 5,00
- Resistance of the central conductor in Ω/100m: 2,3
- Resistance of outer conductor in Ω/100m: 0,5
- Static capacitance in pF/m: 55
- Attenuation in dB/100m: 19.4
Maximum transmission distance depending on video format
| Distance in (m) | 333m | 267m | 103m | 105m | 56m |
| Transmission speed | 360 Mbps | 540 Mb/s | 1.5 Gb/s | 3.0 Gb/s | 12.0 Gb/s |
| Specifications | SMPTE 259M | SMPTE 344M | SMPTE ST-292 | SMPTE ST-424 | SMPTE ST 2082-1 |
| Use | 525/625 (16:9) | 525/625 (4:3) p60 SDI | HD-SDI 1080i | HD-SDI 1080p | 4K UHD |
Parameters
Parameters
| Manufacturer: | Canare |
| Category: | SDI cables |
Main parameters
| Cable type | SDI |
| Length | 90m |
| Version | Flexible |
| Connector type | BNC - BNC |
| Male / Female | Male - Male |
| Cable diameter | 7.7mm |
| Colour | Black |
| Connector shape | Direct |
| Impedance | 75 Ohm |
