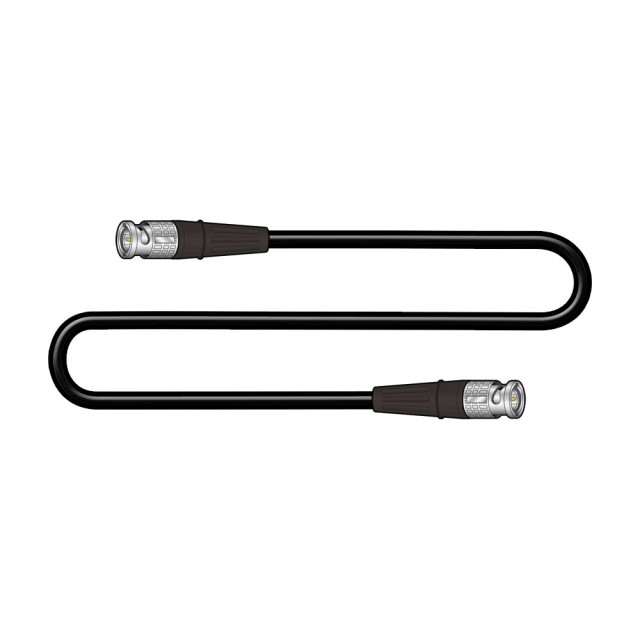

Canare L-5CFW Flexible 3G/HD-SDI cable BNC 80m

Canare L-5CFW BNC (M-male) / BNC (M-male)

More information

293.55 € with VAT 242.6 € without VAT
-+
Availability
on request
SKU:
CV-5W-M/M-BLK-80
Add to Compare Price history

Show all accessories

Product description

Product description

Canare L-5CFW BNC (M-male) / BNC (M-male)

Specifications:

  • Standard manufactured lengths: 100/200m
  • Sheath diameter (overall diameter) in mm: 7.7
  • Cable weight in kg/100m: 8.1
  • Central conductor - number and diameter of cores in mm: 1/1.05
  • Total diameter of central conductor in mm: 1.05
  • Foam dielectric - diameter in mm: 5,00
  • Resistance of the central conductor in Ω/100m: 2,3
  • Resistance of outer conductor in Ω/100m: 0,5
  • Static capacitance in pF/m: 55
  • Attenuation in dB/100m: 19.4

Maximum transmission distance depending on video format

Distance in (m) 333m 267m 103m 105m 56m
Transmission speed 360 Mbps 540 Mb/s 1.5 Gb/s 3.0 Gb/s 12.0 Gb/s
Specifications SMPTE 259M SMPTE 344M SMPTE ST-292 SMPTE ST-424 SMPTE ST 2082-1
Use 525/625 (16:9) 525/625 (4:3) p60 SDI HD-SDI 1080i HD-SDI 1080p 4K UHD



Parameters

Parameters

Manufacturer: Canare
Category: SDI cables

Main parameters

Cable typeSDI
Length80m
VersionFlexible
Connector typeBNC - BNC
Male / FemaleMale - Male
Cable diameter7.7mm
ColourBlack
Connector shapeDirect
Impedance75 Ohm
