Canare L-4E6S microphone Star Quad 6.0mm, XLR (M) / XLR (F) 0,3m

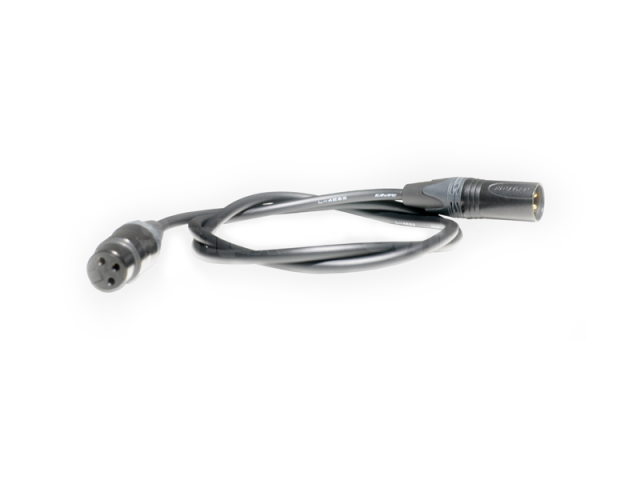

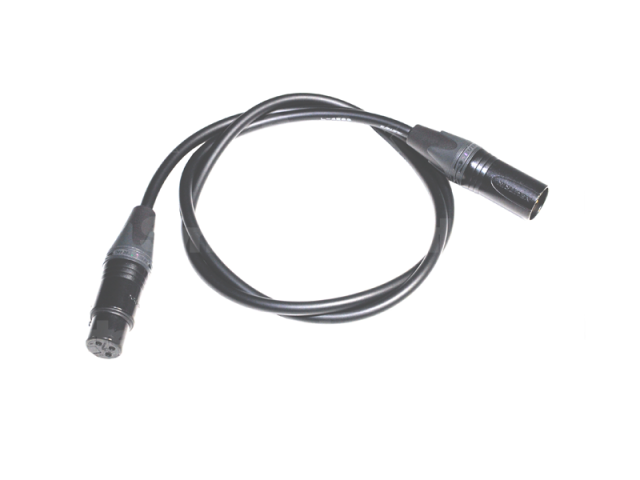

XLR (M) / XLR (F) microphone interconnect "Star Quad" cable made to order from high quality cable from Japanese manufacturer Canare and Neutrik connectors .

More information

20 € with VAT 16.53 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock > 5 pcs
Praha > 5 pcs, Bratislava 4 pcs, Budapest 1 pcs
Product description

Product description

XLR (M) / XLR (F) microphone interconnect "Star Quad" cable made to order from high quality cable from Japanese manufacturer Canare and Neutrik connectors .

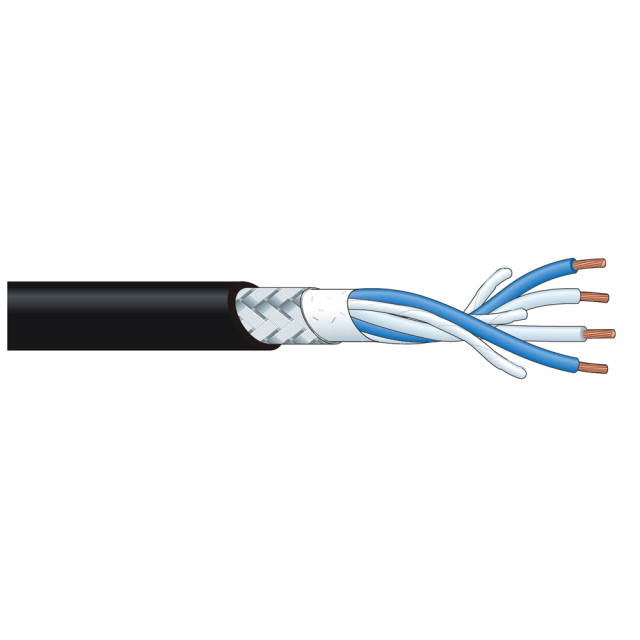

Canare L-4E6S is a symmetrical flexible "Star Quad" cable

Satin smooth to the touch and extra strong microphone cable with 6 mm outer diameter

Features:

  • Copper braided shielding
  • Flexible even in extremely cold weather
  • Cross-linked PE (polyethylene) insulation
  • Reduced handling noise
  • Suppressed EMI (electromagnetic interference) and RFI (radio frequency interference)

Specifications:

  • Standard manufactured lengths in (m): 100/200
  • Cable weight in kg/100m: 4.8
  • Sheath diameter (overall diameter) in mm: 6.0
  • AWG: 24
  • Material and thickness of outer insulation in (mm): PVC (1.12)
  • Breaking point in (°C): -49
  • Number and colour of conductors: 4 / 2 x blue, 2 x white
  • Number and diameter of cores per conductor in mm: 40/0.08
  • Shielding factor: >95%
  • Conductor resistance in Ω/100m: <9.8
  • Shielding resistance in Ω/100m: <3.0
  • Capacitance between blue and white conductors in pF/m: 150
  • Capacitance between conductors and shielding in pF/m: 185
  • Impedance in Ω: 44


Technical specifications of Neutrik XX-B connectors:

  • Capacitance: ≤ 4 pF
  • Contact resistance: ≤ 3 mΩ
  • Rated voltage 1min: 1,5 kVdc
  • Insulation resistance: > 10 GΩ
  • Rated current per 1 contact: 16 A
  • Rated voltage: 50 V
  • Cable diameter: 3.5 - 8.0 mm
  • Force required to connect connectors: ≤ 20 N
  • Force required to disconnect connectors: ≤ 20 N
  • Lifetime: > 1000 connection cycles
  • Conductor: max. 2.5 mm², max. 14 AWG
  • Soldering
  • Cable cap: Polyurethane
  • Contact surface treatment: 0.2 µm Au layer on 2 µm Ni
  • Contact material: Bronze (CuSn8)
  • Polyamide (PA 6.6 30% GR)
  • Lock: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Connector body: Zinc diecast (ZnAl4Cu1)
  • Connector body finish: black chrome
Parameters

Parameters

Manufacturer: Canare
Category: Audio cables

Main parameters

Cable typeMicrophone
Length0.3m
VersionFlexible
Connector typeXLR
Male / FemaleMale - Female
Cable diameter6.0mm
ColourBlack
Connector shapeDirect

Other parameters

OtherStar Quad
