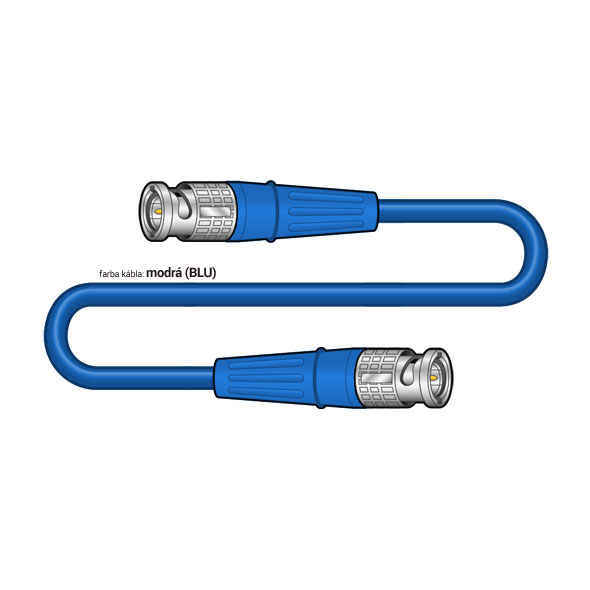

Canare L-4.5CHWS flexible 4K UHD, 12G-SDI cable, BNC-BNC 20m, BLU

Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI cable, ideal for mobile applications.

More information

76.74 € with VAT 63.42 € without VAT
-+
Availability
E-shop in stock > 5 pcs
Praha > 5 pcs
SKU:
CV27373706060002000
Add to Compare
Product description

Product description

Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI cable, ideal for mobile applications.

, BLUUse of flexible 12G/3G/HD-SDI cable Canare L-4.5CHWS:

  • compliant with SMPTE 424M and SMPTE 292M, SMPTE ST 344M and SMPTE ST 2082-1 specifications
  • HDTV
  • 4K/HD/SD-SDI video
  • PAL & NTSC analog video
  • Satellite applications
  • TELCO
  • Test equipment

Specifications:

  • Standard manufactured lengths: 100/200m
  • Sheath diameter (overall diameter) in mm:7.2
  • Cable weight in kg/100m: 6.6
  • Central conductor - number and diameter of stranded wire in mm: 7/0,34
  • Total diameter of central conductor in mm: 1.02
  • Foam dielectric - diameter in mm: 4,57
  • Resistance of central conductor in Ω/100m:3,3
  • Resistance of outer conductor in Ω/100m:0,8
  • Temperature range: -30°C ~ +60°C
  • Static capacitance in pF/m:53
  • Attenuation in dB/100m:22.8



Maximum transmission distance depending on video format:

Maximum transmission distance of Canare L-4.5CHWS depending on video format
Data transfer rate: 143 Mbps 177 Mbps 270 Mbps 360 Mbps 540 Mbps 1.5 Gb/s 3 Gb/s 12 Gb/s
Specification: SMPTE 259M SMPTE 259M SMPTE 259M SMPTE 259M SMPTE ST 344M SMPTE ST 292M SMPTE ST 424M SMPTE ST 2082-1
Application: nTSC composite pAL composite components 4:2:2 4:2:2 16x9 components SDI HD-SDI 1080i 3G-SDI 1080p 12G-SDI 4K-UHD
Maximum cable length: 447m 405m 322m 280m 225m 87m 90m 50m
Parameters

Parameters

Manufacturer: Canare
Category: SDI cables

Main parameters

Cable typeSDI
Cable type12G-SDI
Length20m
VersionFlexible
Connector typeBNC - BNC
Male / FemaleMale - Male
Cable diameter7.2mm
ColourBlue
Connector shapeDirect
Impedance75 Ohm

Other parameters

Other4K/UHD
